SCS 300 • Installation, Connection, and Settings 2-9
Front Panel Features and Settings nd Settings
The front panel has four features:
SYNC CONVERTER/STABILIZER WITH ADSP
SCS 300
H-SHIFT
OUTPUT
1 4 3 2
INPUT SYNC 10
K
FORCE NEG SYNC COMP SYNC OU
T
SOG OUT RsGsBs OU
T
SERR REMO
VA
L
NO SYNC PR
OC
SP
ARE
ON
OFF
ON
1 2 3 4 5 6 7 8

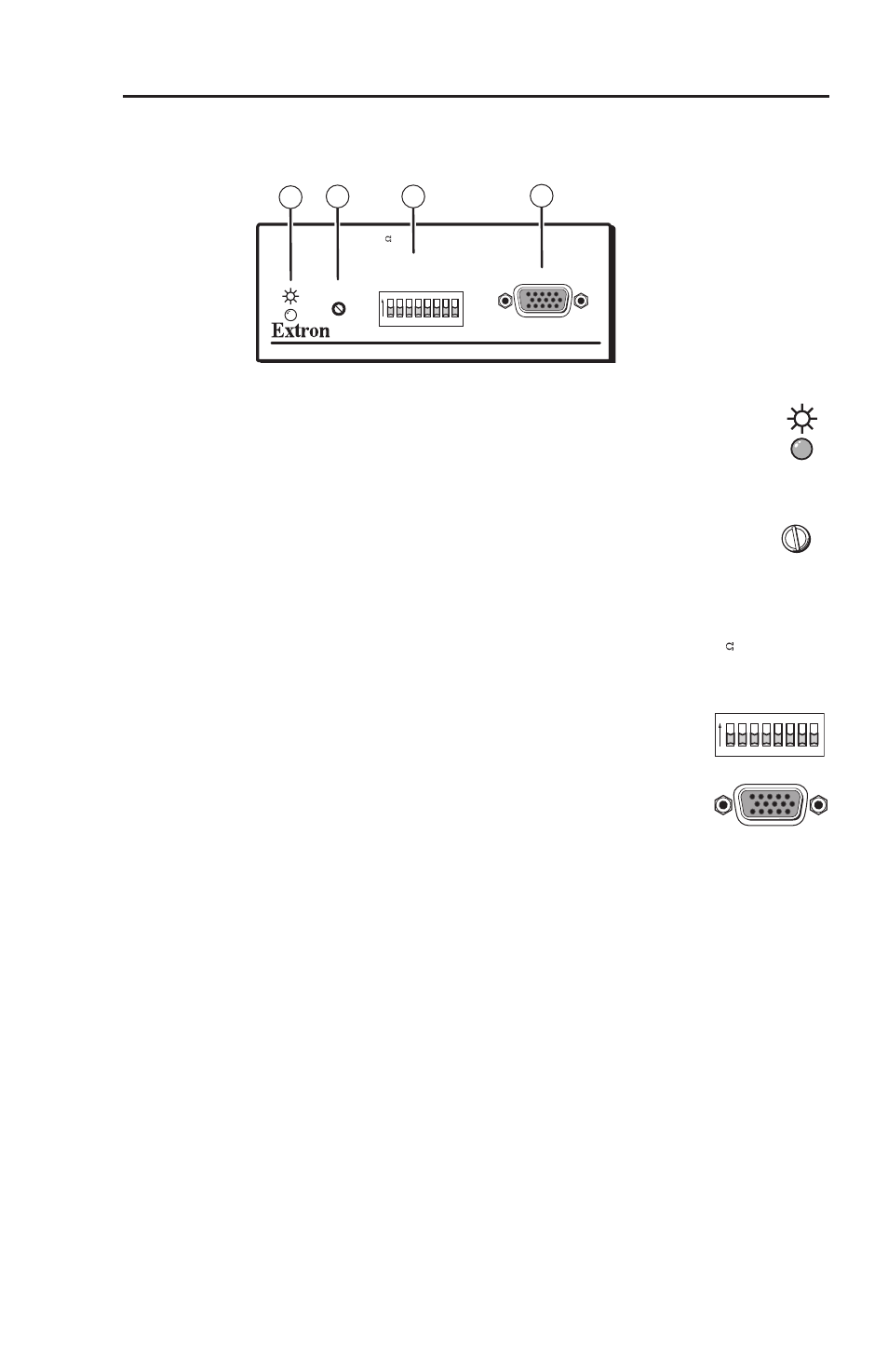

Figure 2-9 — Front Panel features
a
Power LED — This green LED is lit when the device has
power.
b
Horizontal shift control — This recessed rotary dial
adjusts the horizontal shift. To adjust the horizontal
shift, turn the dial using a Tweeker or other small
screwdriver, and observe the left/right movement of the image
on the screen. Stop when the image is centered. See below for
details of auto memory for H-shift control settings.
c
8-bank DIP switch — The settings of these DIP
switches control various sync adjustments. For
details, see "Front Panel DIP Switch Settings," in
this chapter.
d
15-pin HD female connector — The converted
video signal is output on this connector. Connect
a VGA cable to the connector and to a VGA display
device, for simultaneous video signal output.
N The output on the 15-pin HD connector is simultaneous
and identical to the output on the five BNC connectors on
the rear panel.
Auto Memory for H-shift Control Settings ettings
The SCS 300 has a non-volatile internal memory where H-shift
settings are automatically saved, one setting for each of up to
15 different input rates. The unit automatically detects any new
rate changes based on the horizontal and vertical frequencies,
and then saves the H-shift position setting for that specific
resolution.
Once all memory locations are full, the unit overwrites the
locations in sequential order, beginning at number one. If for
example a sixteenth input rate is detected, that rate's setting is
saved ("overwritten") to memory location #1. All saved settings
are retained in the memory after power down.
