SCS 300 • Installation, Connection, and Settings
Installation, Connection, and Settings, cont’d
2-4
Mounting the SCS 300 under a desk
esk
To mount the SCS 300 under a desk or in a podium using the
under desk mounting kit (Extron part # 70-077-01, MBU 125),
do the following:
1.
Attach the mounting brackets to the SCS 300 using the
four machine screws supplied with the mounting kit
as shown in figure 2-3.

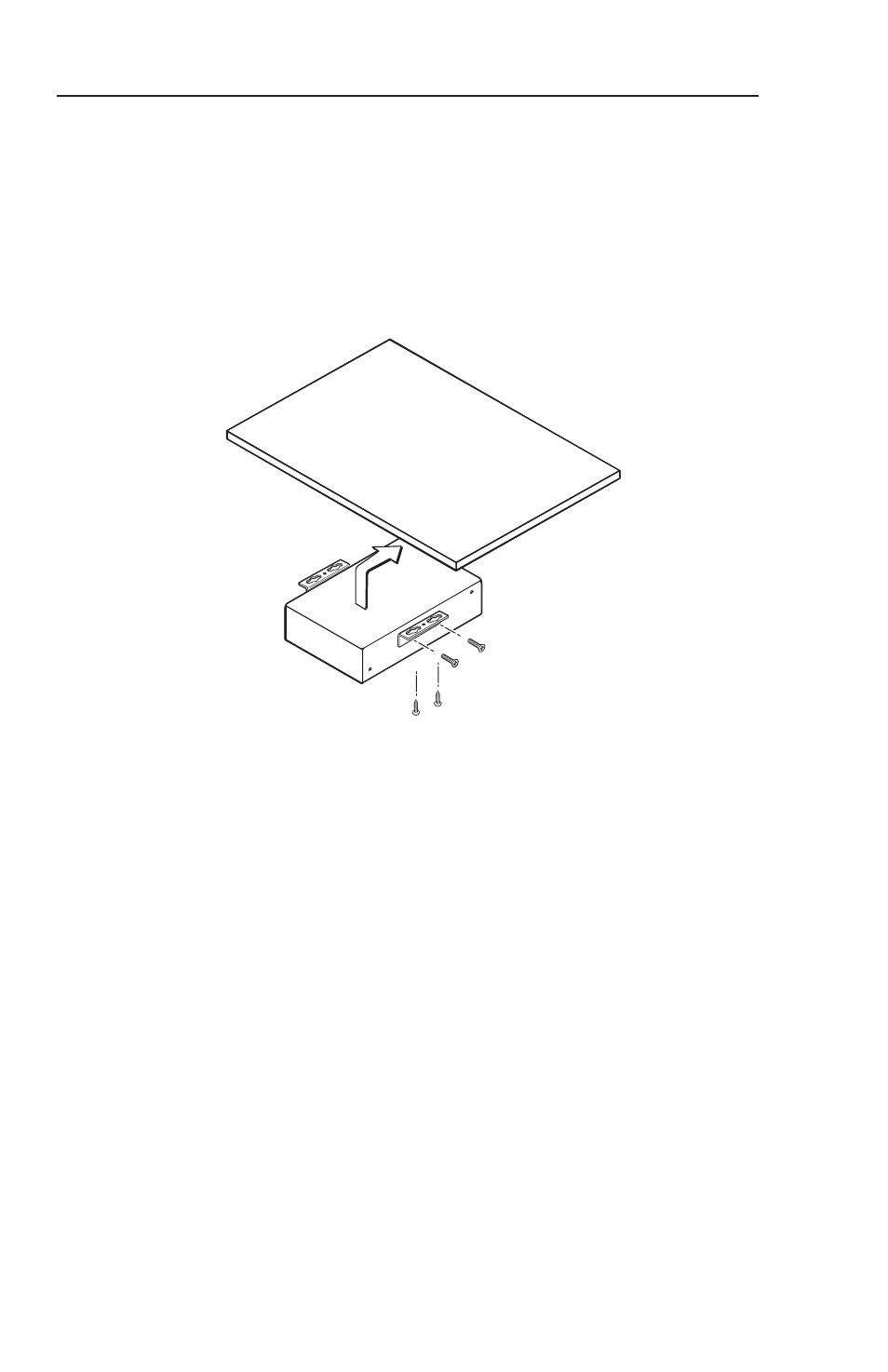

Figure 2-3 — Attaching the under desk brackets
2.
Holding the device up against the underside of the surface
to which you are mounting it, mark the four screw holes.
3.
Drill four pilot holes, each 3/32" (2 mm) in diameter by
1/4" (6.4 mm) deep, where marked on the template.
4.
Using the four supplied wood screws, attach the brackets
under the mounting surface (see figure 2-3).
5
.
When the SCS 300 is mounted, continue the installation by
connecting the input, output, and power cables.
