MTP T 15HD A Architectural Plates • Introduction
4
About the MTP T 15HD A WM
The MTP T 15HD A WM Twisted Pair Transmitter is a wall or
furniture mountable version of the MTP T 15HD A, and can be
mounted into any standard one gang electrical wall box.
AUDIO IN
MTP T 15HD A
COMPUTER IN
About the MTP T 15HD A D
The MTP T 15HD A D Twisted Pair Transmitter is a wall or
furniture mountable version of the MTP T 15HD A that fits any
Decora ® style wall plate.
COMPUTER IN
AUDIO IN
About the MTP T 15HD A AAP
The MTP T 15HD A AAP Twisted Pair Transmitter can be
mounted in any Extron product that accepts a double space
AAP, such as the AAP 102.
AUDIO IN
MTP T 15HD A
COMPUTER
IN

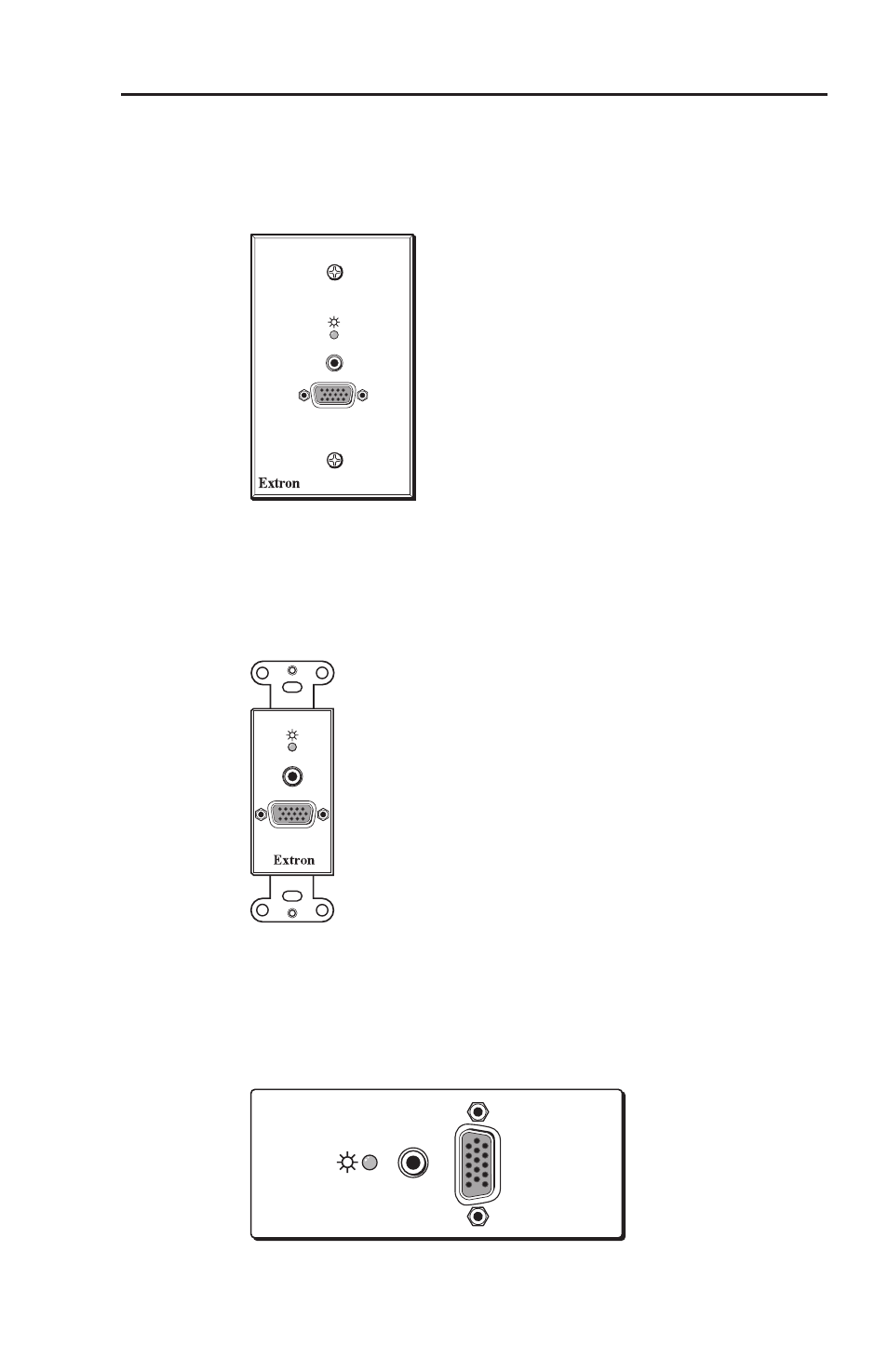

Figure 1 — MTP T 15HD A WM face
Figure 2 — MTP T 15HD A D face
Figure 3 — MTP T 15HD A AAP face
