Installation, cont’d
MTP T 15HD A Architectural Plates • Installation 7
Installing the MTP T 15HD A AAP
The MTP T 15HD A AAP must be attached to a device faceplate
or AAP wall plate and cabled before the device or wall plate is
pretested or installed in a wall or furniture.
1
. Before attaching any cables, insert the MTP T 15HD A AAP’s
standoffs through the holes in the device’s faceplate or AAP
wall plate.
2 . Using the #4-40 nuts and captive washers provided, secure
the line driver to the faceplate or wall plate.
3 . Repeat steps 1 and 2 to mount any other AAPs. Cover any
openings in the faceplate with blank plates (provided with
the AAP faceplate).
4 . Be sure to include the AAP connectors as part of the
installation pretest before final installation of the faceplate.
5 . For more detailed installation information, refer to the
installation guide shipped with the device or AAP faceplate.
MTP T 15HD A AAP
AAP 102
AAP
102 AUD IO IN
MTP T 15 HD A
CO MPUTER
IN
PC IN PU
T
AU DIO
Wall opening
is flush with
edge of box.
Wall Box
Decora
Faceplate
MTP T 15HD A D

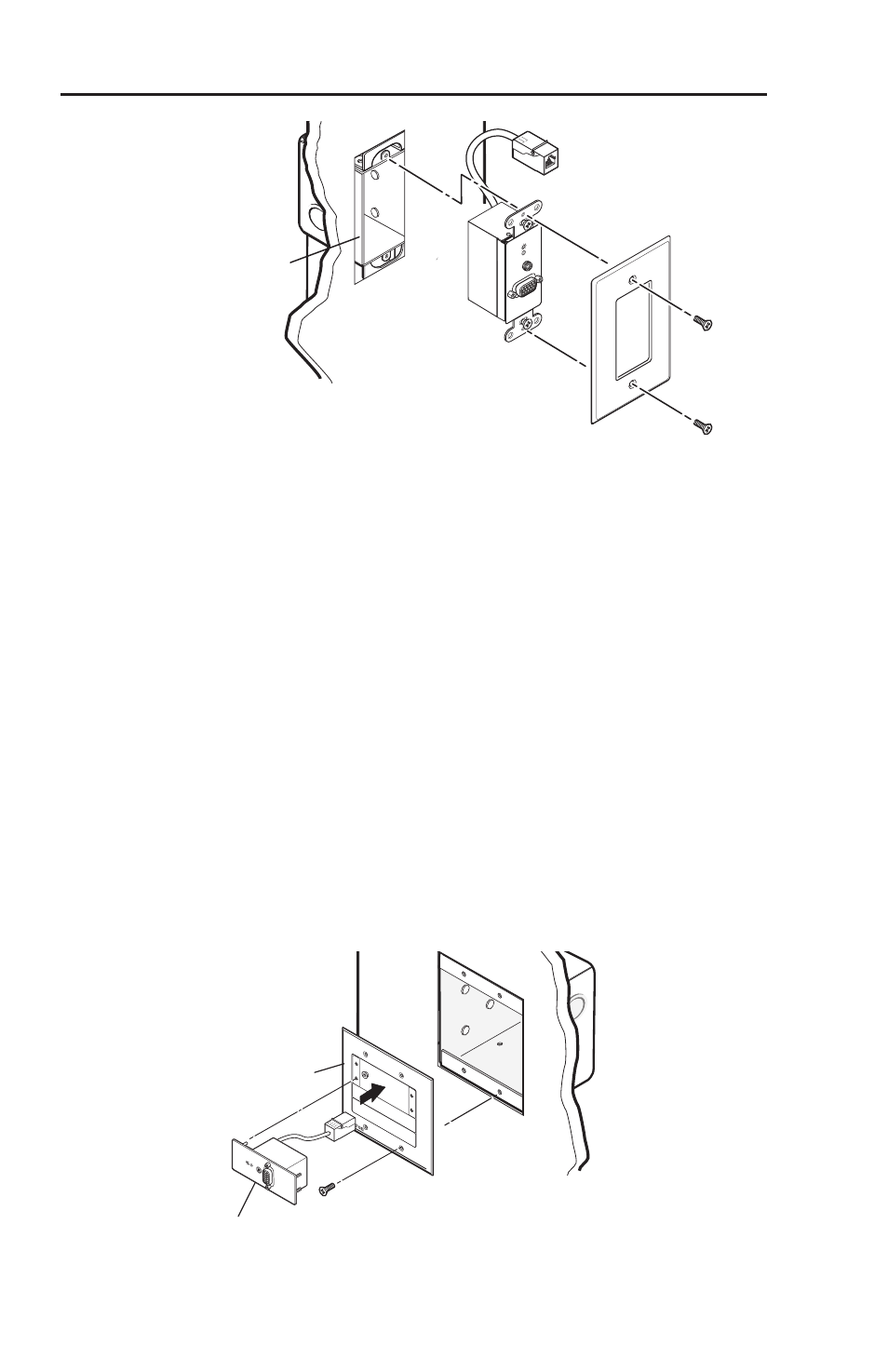

Figure 5 — Mounting the MTP T 15HD A D
Figure 6 — Mounting the MTP T 15HD A AAP
