Installation, cont’d
MTP T 15HD A Architectural Plates • Installation 13
Template
The cut-out template, shown in figure 13, is used to install a
MTP T 15 HD A WM or MTP T 15HD A D. Use the dimensions
in the cut-out template as a guide for cutting a hole in a wall or
furniture.
N The drawing is not full size or to scale. Do not scale up
or print to use as a template.
Full size templates are available online at
www.extron.com
4.50"
(11.43 cm)
Top
Panel
SURFACE CUT-OUT
AREA FOR
FURNITURE MOUNT
2.79"
(7.09 cm)
1.9"
(4.83 cm)
2.8"
(7.1 cm)
To install a
1-gang
MTP T 15HD A WM
directly into
furniture or
wall, cut along
this line.

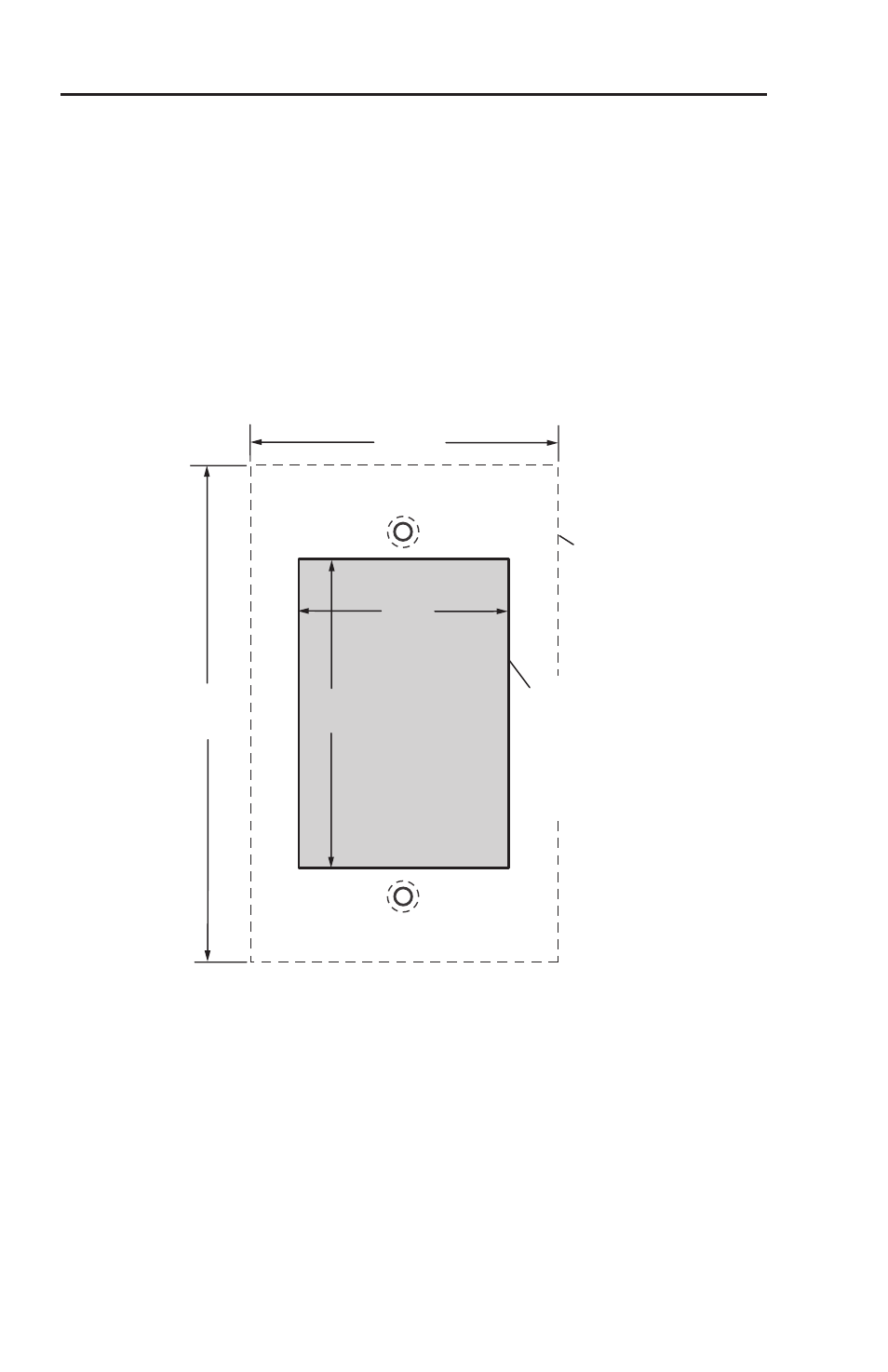

Figure 13 — 1-gang cut-out template
