MTP T 15HD A Architectural Plates • Installation 8
Connections and Settings
C Do not connect these devices to a computer data or
telecommunications network.
Front panel features
The front panel features are the same on all the MTP T 15HD A
architectural models, as shown in figure 7.
COMPUTER IN
AUDIO IN
2
1
3
AUDIO IN
MTP T 15HD A
COMPUTER IN
1
2
3
AUDIO IN
MTP T 15HD A
COMPUTER
IN
3 2 1
MTP T 15HD A D MTP T 15HD A WM
MTP T 15HD A AAP

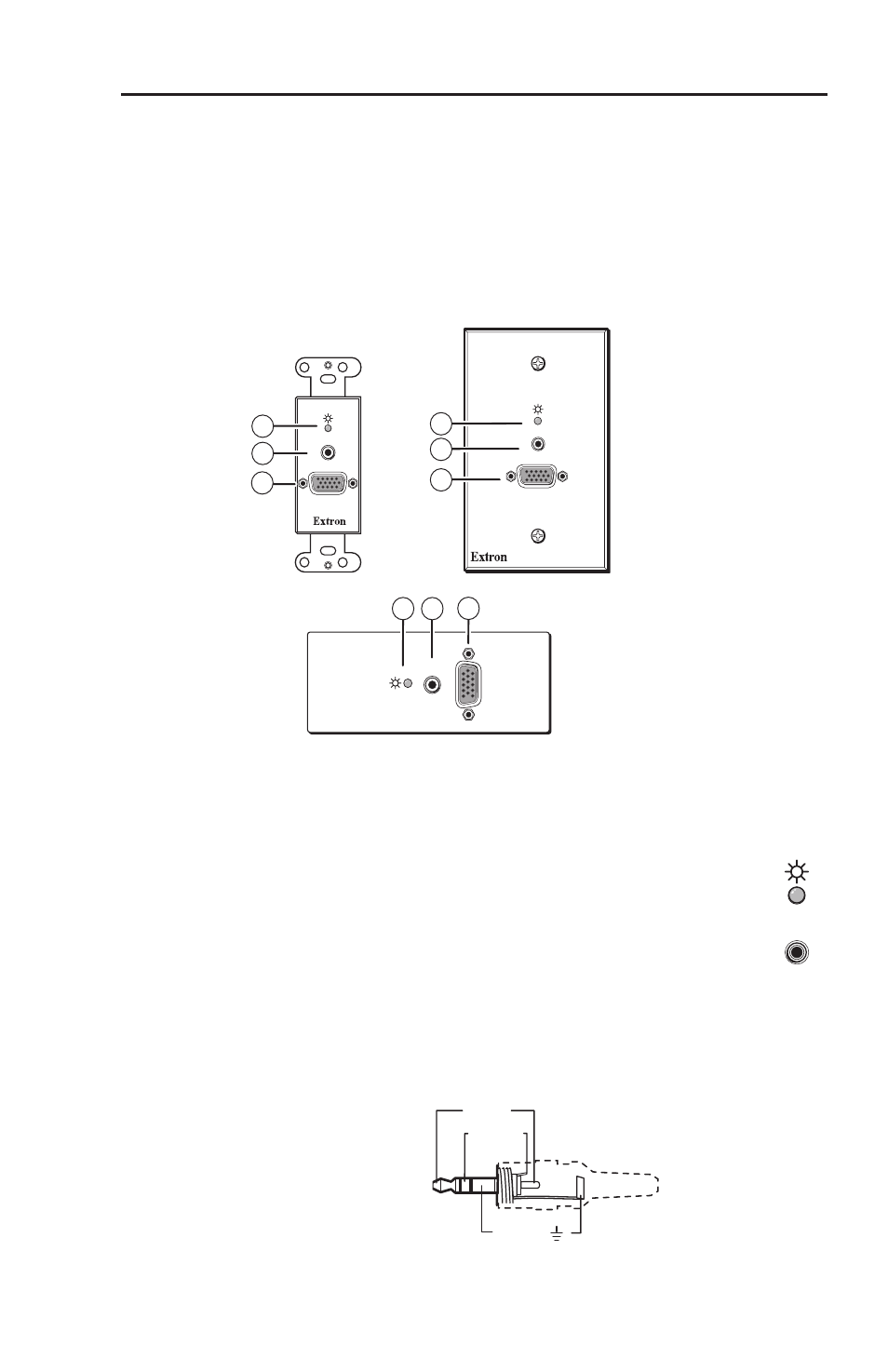

Figure 7 — Architectural series front panel features
Power connection
a
Power LED — Indicates power is applied to the MTP.
b
Audio input connector — Connect a 3.5 mm stereo audio
plug into this jack for unbalanced audio input. Wire the
plug as shown in figure 8.
N Figure 8 shows a typical audio connector, which
consists of the tip, ring, and sleeve. The tip, ring, and
sleeve wires are also shown on the captive screw audio
connector diagram ( figure 10 on page 10).
AUDIO
Figure 8 — 3.5 mm stereo audio plug
Sleeve ( )
Ring (R)
Tip (L)
