Installation
This section describes installation of the MTPX Plus matrix switchers,
including connections and features. Topics that are covered include:
•
•
Rear Panel

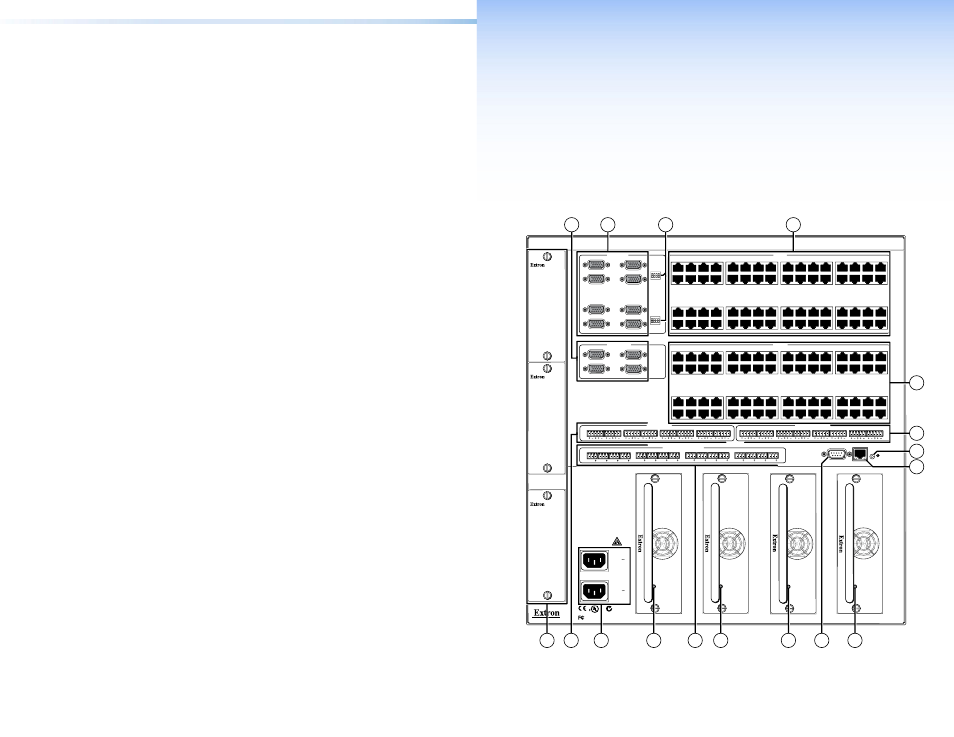

Figure 2.
MTPX Plus 6464 Switcher Rear Panel
TP Skew Equalization
Skew exists between wire pairs when the physical length of one
wire pair is different from another. Skew affects the displayed image
when the difference in length between wire pairs exceeds 2 feet. The
difference in length causes the timing of the red, green, and blue
video signals to appear out of alignment (horizontal registration
errors). The signals transmitted on the shortest pair are shifted to
the left if you are using white lines on a black background. A white
vertical line on a black field can appear as individual red, green,
and blue lines that are close together; the signal transmitted on the
shortest wire pair leads the other colors and appears to the left on
the display. As the transmission cable length increases, the skew effect
increases.
The MTPX Plus input and output skew equalizer functions provide
separate time delay circuits on the red, green, and blue video lines.
This allows you to properly align the red, green, and blue video
signals on the displayed image. When correctly set, the red, green,
or blue video signal on the shortest wire pair is delayed to properly
converge the displayed video image.
UTP cable test equipment measures and reports wire pair length. The
report on the various pair lengths can be used to properly equalize
pair skew. If UTP cable test measurement cannot be done, pair skew
can still be equalized by viewing a crosshatch test pattern with a
critical eye.
ANAHEIM, CA
RESET
RS232/RS422
REMOTE
LAN
ACT LINK
FAN ASSEMBLY
FAN ASSEMBLY
FAN ASSEMBLY
LOCAL INPUTS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
RS-232 OUTPUT INSERTION
INPUTS
AUDIO INPUTS
L
R
1
L
R
2
L
R
3
L
R
4
L
R
5
L
R
6
Tx Rx
1
Tx Rx
2
Tx Rx
3
Tx Rx
4
Tx Rx
5
Tx Rx
6
Tx Rx
7
Tx Rx
8
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
2
1
3
4
5
6
LOCAL OUTPUTS
7
8
RJ-45
2
1
3
4
RJ-45
L
R
7
L
R
8
MONO AUDIO OUTPUTS
L
R
1
L
R
2
L
R
3
L
R
4
L
R
5
L
R
6
L
R
7
L
R
8
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
OUTPUTS
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
Tx Rx
9
Tx Rx
10
Tx Rx
11
Tx Rx
12
Tx Rx
13
Tx Rx
14
Tx Rx
15
Tx Rx
16
PRIMAR
Y POWER SUPPL
Y 1
PRIMAR
Y POWER SUPPL
Y 2
REDUNDANT POWER SUPPL
Y 1
REDUNDANT POWER SUPP
LY
2
100-240V
50/60Hz
6.4A MAX.
100-240V
50/60Hz
1.2A MAX.
REDUNDANT
PRIMARY
LISTED
1T23
US
®
N15779
INPUT
SELECT
LOCAL
1 2 3 4
INPUT
SELECT
LOCAL
5 6 7 8
13
13
13
13
9
11
10
12
14
1
2
7
3
5
4
6
8
7
