About the MTPX Plus Matrix Switchers
The MTPX Plus matrix switchers (see figure 1) distribute signals that
are compatible with the Extron MTP and VTT/VTR product lines.
The matrix switcher routes a TP input signal to any combination
of TP outputs. Depending on the MTP model, the routed TP signal
can include RGB or low resolution video and either mono audio
or transmitter-to-receiver RS-232 serial communications. The
matrix switcher can route multiple input/output configurations
simultaneously.
COMPUTER IN
AUDIO IN
ANAHEIM, CA
RESET RS232/RS422
REMOTE LAN
ACT LINK
100-240V
50/60Hz
6.4A MAX.
100-240V
50/60Hz
1.2A MAX.
DISCONNECT BOTH POWER
CORDS BEFORE SERVICING
REDUNDANT
PRIMARY
LISTED 1T23 US ® N15779
FAN ASSEMBLY
FAN ASSEMBLY
FAN ASSEMBLY
LOCAL INPUTS 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32
RS-232 OUTPUT INSERTION
INPUTS
AUDIO INPUTS L R 1 L R 2
Tx Rx
1
Tx Rx
2
Tx Rx
3
Tx Rx
4
33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48
49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64
2 1
3 4
5 6
LOCAL OUTPUTS
7 8
INPUT SELECT
LOCAL 1 2 3 4
RJ-45
2 1
3 4
INPUT SELECT
LOCAL 5 6 7 8
RJ-45
MONO AUDIO OUTPUTS
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32
OUTPUTS
33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48
49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64
PRIMAR
Y POWER SUPPL
Y 1
PRIMAR
Y POWER SUPPL
Y 2
REDUNDANT POWER SUPPL
Y 1
REDUNDANT POWER SUPPL
Y 2
Tx Rx
5
Tx Rx
6
Tx Rx
7
Tx Rx
8
Tx Rx
9
Tx Rx
10
Tx Rx
11
Tx Rx
12
Tx Rx
13
Tx Rx
14
Tx Rx
15
Tx Rx
16
L R 3 L R 4 L R 5 L R 6 L R 7 L R 8 L R 1 L R 2 L R 3 L R 4 L R 5 L R 6 L R 7 L R 8
OUTPUT INPUT
POWER
12V
.5A MAX
MONITOR
PRE-PEAK ON
OFF
MTP T 15 HD RS
Tx Rx
RS-232
OUTPUT INPUT
POWER
12V
.5A MAX
MONITOR
PRE-PEAK ON
OFF
MTP T 15 HD RS
Tx Rx
RS-232
0.5A MAX 12 V S-VIDEO
INPUT L R
MTP T SV A OUTPUT
INPUT BUFFERED OUTPUT
OUTPUT
POWER
12V
.5A MAX
MTP RL 15HD A
ON 1 2 3 4 5 6
H SYNC + V SYNC + C SYNC SOG VIDEO END UNI T 1 MONO AUDIO 2
INPUT
POWER 12V 0.5A MAX RGB
VID
Y/C
OUTPUTS
RS-232
Tx Rx SPACE
MTP U R RS SEQ
INPUT
POWER 12V 0.5A MAX
RGB
VID
Y/C
OUTPUTS
RS-232
Tx Rx SPACE
MTP U R RS SEQ
OUTPUT
MTP R SV A
L R
INPUT S-VIDEO 12V 0.5A MAX
1 3 1 4 2 3 1 4 2 3 1 4 2 2 3 100 LINK ACT
COM IR INPUT RELAY TX RX R
IPL 250 ®
INPUTS VIDEO AUDIO INPUT
COMPUTER INPUT
MONITOR OUT
S-VIDEO PWR VID Y/C YUV RGB
AUDIO L
R Pr
Pb
Y YUV
Extron
MTP U T A D
Universal Transmitter
Extron
MTP T 15HD A
Transmitter
Extron
MTP T SV A
Transmitter
Extron
MTP T 15HD RS
Transmitter
MTP T 15HD A D
Transmitter Extron
MTP R SV A
Receiver
Extron
MTP R 15HD RSA D
Receiver
Extron
MTP U R RSA SEQ
Universal Receiver
Extron
MTP U R RSA SEQ
Universal Receiver
Extron
MTP RL 15HD A
Receiver
PC
Extron
MTPX Plus 6400
Twisted Pair Matrix Switcher
Ethernet
RS-232
TCP/IP
TouchLink ™
Control System

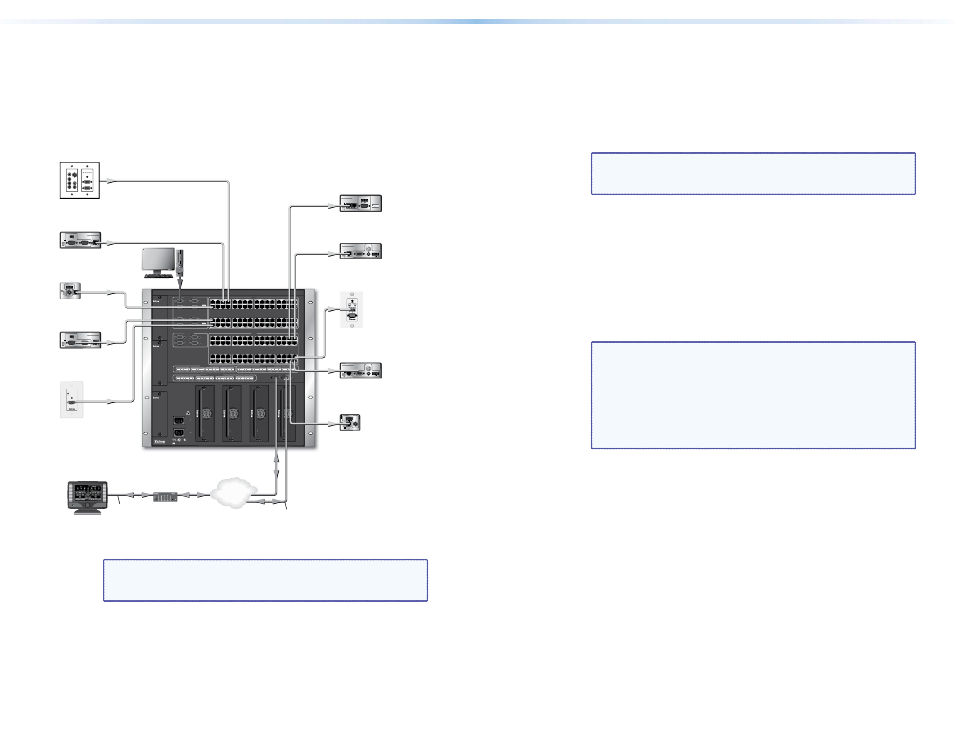

Figure 1. Typical MTPX Plus Application
NOTE: The receiver-to-transmitter serial communications and
remote power capabilities available with certain MTP
models are not supported by this matrix switcher.
The switchers are available in the following matrix sizes:
MTPX Plus 4848
(48 inputs by 48 outputs)
MTPX Plus 4864 (48 inputs by 64 outputs)
MTPX Plus 6432 (64 inputs by 32 outputs)
MTPX Plus 6448 (64 inputs by 48 outputs)
MTPX Plus 6464 (64 inputs by 64 outputs)
The switchers input and output TP signals on RJ-45 connectors.
NOTE: For best results, use a cable length of at least 50 feet
(15 m) between the TP inputs and outputs and the
transmitter and receiver.
Four or eight (depending on the matrix size) 15-pin HD (VGA) and
5-pole 3.5 mm direct insertion input connectors are available for
direct video and stereo audio inputs without an MTP transmitter. The
available local inputs parallel the TP input of the same number and
either input can be used.
All matrix sizes have four 15-pin HD (VGA) for direct video outputs
without an MTP transmitter. All matrix sizes have eight 5-pole 3.5 mm
captive screw ports are available for direct mono audio outputs
without an MTP transmitter. The available local outputs parallel the
TP input of the same number and both outputs can be used.
NOTES: • The direct input and direct output connectors can
also support HD-YUV video, YUV video, S-video, and
composite video.
• For low resolution MTPs (S-video and composite video)
on the TP inputs and outputs, the MTPX Plus audio
circuits are compatible only with the newer generation,
mono audio models. See the MTP transmitter/receiver
manual to determine which MTP models you have.
Outputs 1 through 16 have 3-pole 3.5 mm captive screw ports for
bidirectional RS-232 signal inserts. These signals, from a dedicated
source (rather than from the selected input), can be directly inserted
into the signal set routed to the TP output.
Each TP output also has a dedicated UART port that allows
bidirectional communication on every TP port simultaneously.
The matrix switcher can be remotely controlled via an Ethernet LAN
port, serial port, or USB port connection using either the Extron
Matrix Switchers Control Program or the Simple Instruction Set
(SIS™).
