Front Panel Operations
This section describes simple MTPX Plus matrix switcher operation
from the front panel. Topics that are covered include:
• Creating a Tie
• Saving or Recalling a Preset
• Setting the Front Panel Locks (Executive Modes)
• Defining the Audio/RS-232 Wire Pair and Configuring the Remote
Port
• Viewing and Adjusting the Audio Level
• Viewing Ties (and Muting Outputs)
Creating a Tie
A "tie" is an input-to-output connection.
A "set of ties" is an input tied to two or more outputs. (An output
can never be tied to more than one input.)
A "configuration" is one or more ties, one or more sets of ties, or a
combination.
1. Press and release the Esc button to clear any input button, output
button, or control button indicators that may be lit.
2. Press and release the Video and Audio I/O buttons to select or
deselect video, audio, or both as desired.
Green when selected
Off when deselected
Red when selected
Off when deselected
I / O
VIDEO AUDIO
NOTE: Audio (RS-232) or video can be broken away (tied by
itself) by selecting only the Video button or only the
Audio button.
3. Press and release the desired input button.
5
The button lights to indicate the selection.
Front Panel
PRIMARY 1 2
REDUNDANT 1 2
MTPX PLUS SERIES
MTP MATRIX SWITCHER
AUDIO VIDEO
I/O
POWER SUPPLY CONFIG
15 16

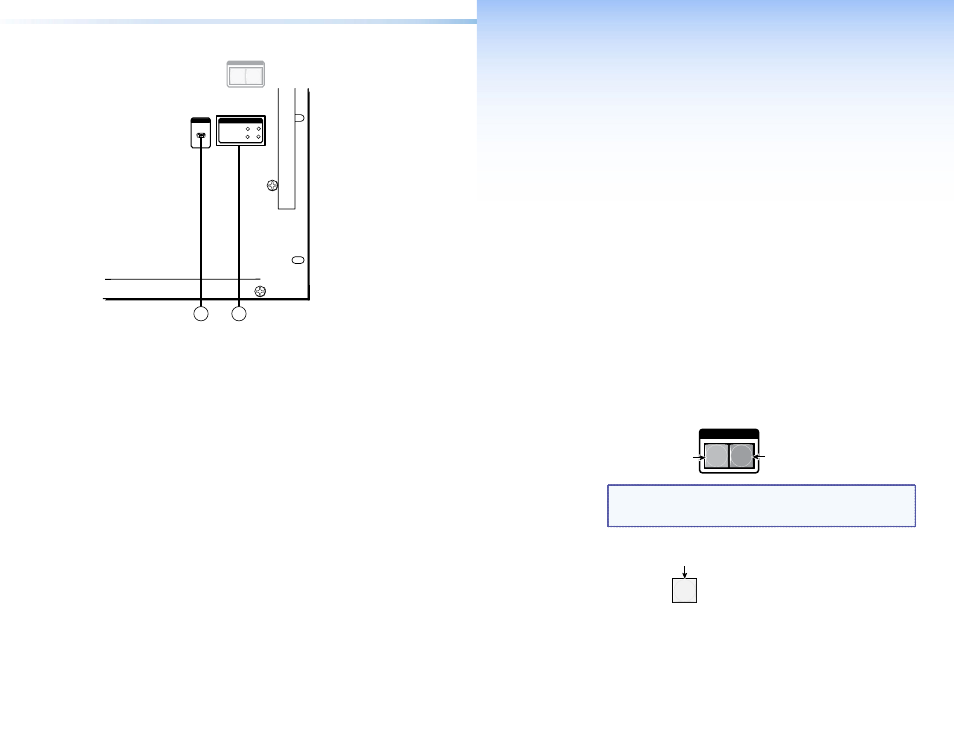

Figure 7. Front Panel Features
o Configuration port — If desired, connect a control system or
computer to the front panel Configuration port, a mini USB B
port
.
p Primary and Redundant Power Supply LEDs —
Green — Indicates that the associated power supply is operating
within normal tolerances.
Red — Indicates that the associated power supply is operating
outside the normal tolerances or has failed. See "
Removing and
Installing a Power Supply Module " on page 47 to replace the
power supply.
MTPX Plus 6400 • Front Panel Operations 13 12 MTPX Plus 6400 • Installation
