MTP Series • Installation 12
Transmitter and Receiver Throughput Connections

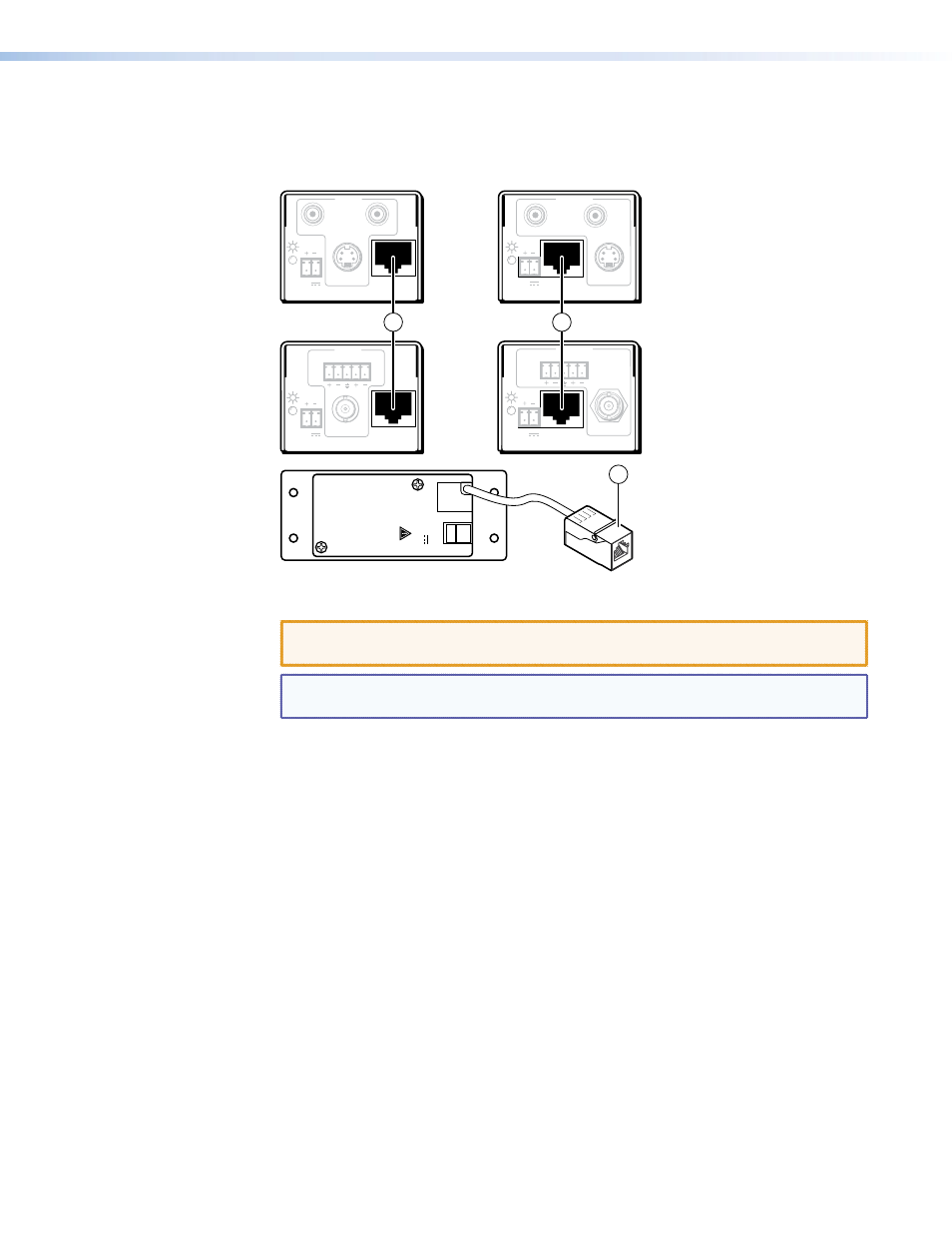

Figure 16 identifies the connections between the transmitter and receiver.
12V 0.5A
MAX
OUTPUT
PO
WER − +
MTP Transmitters MTP Receivers
INPUT
L R
MTP T AV
OUTPUT VIDEO
12V
0.5a
INPUT
MTP T SV A RCA
OUTPUT
MAX
12V
0.5a MAX
S-VIDEO
L R
OUTPUT
MTP R SV A RCA
INPUT
S-VIDEO
12V
0.5a MAX
OUTPUT
MTP R AV
L R
INPUT VIDEO
12V
0.5a MAX
R L
5 5
5
Figure 16. Throughput Connections
CAUTION: Do not connect these devices to a computer data or
telecommunications network.
NOTE: RJ-45 termination must comply with the TIA/EIA T 568A or TIA/EIA T 568B
wiring standards for all connections.
e
Transmitter output and receiver input connector — Connect one end of a TP
cable to this RJ-45 female connector on the transmitter. On the MTP T SV A AAP and
MTP T AV AAP, the connector is at the end of a short pigtail.
Connect the free end of the same TP cable from the transmitter to this RJ-45 female
connector on the receiver.
