MTP Series • Installation 10
Panel Features and Connections
Transmitter Input Connections

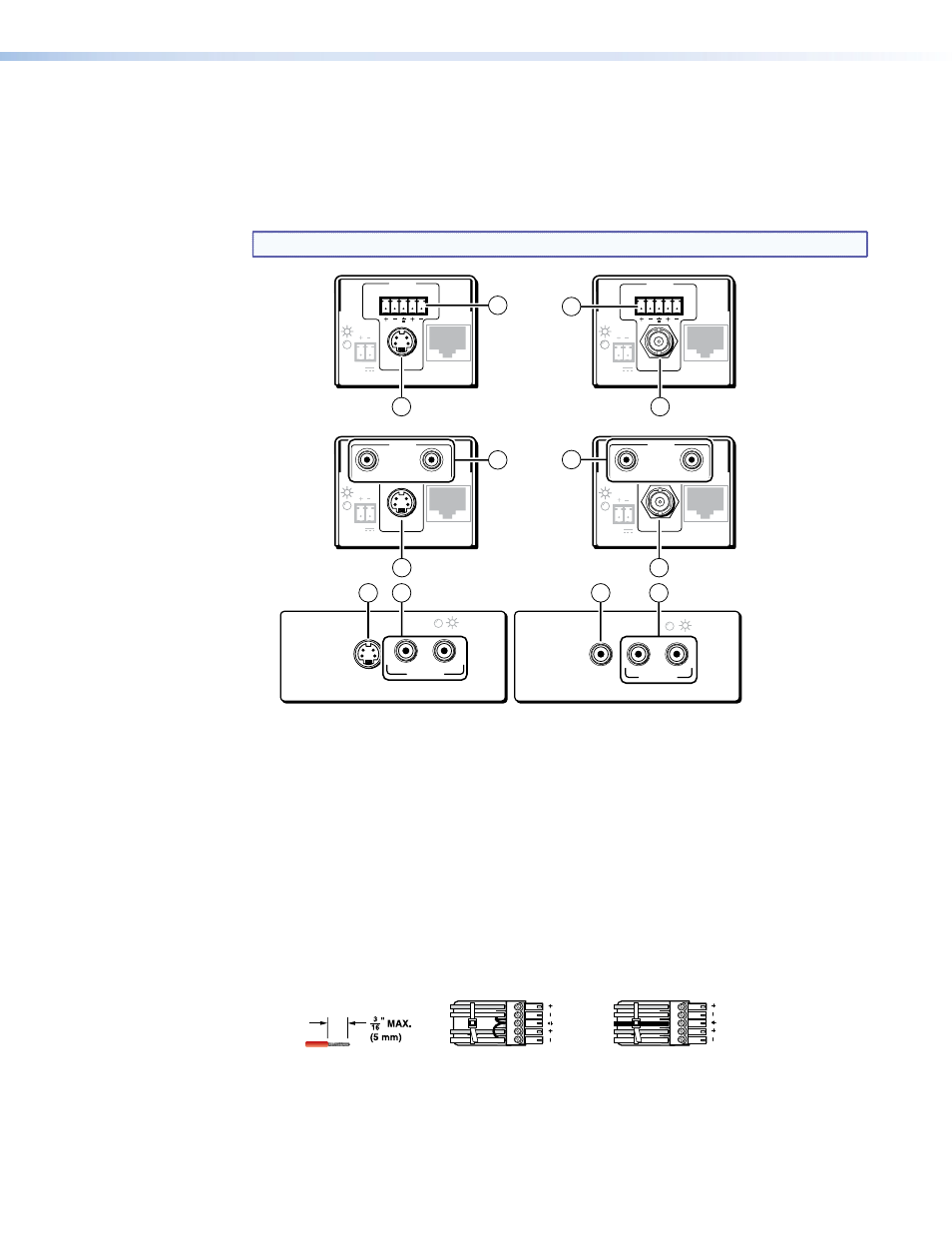

Figure 12 shows all of the combinations of video and audio input connectors that you may
encounter with your MTP transmitter.
NOTE: Some transmitters do not have audio connections.
12V
0.5a
INPUT
MTP T AV RCA
OUTPUT
MAX
VIDEO
L R
INPUT
L R
12V
0.5a MTP T AV
OUTPUT
MAX
VIDEO
12V
0.5a
INPUT
L R
MTP T SV A
OUTPUT
MAX
S-VIDEO
12V
0.5a
INPUT
MTP T SV A RCA
OUTPUT
MAX
S-VIDEO
L R
MTP T SV A RCA,
Rear Panel MTP T AV RCA,
Rear Panel
MTP T AV AAP,
Front Panel MTP T SVA AAP,
Front Panel
MTP T SV A,
Rear Panel MTP T AV,
Rear Panel
AUDIO IN S-VIDEO
IN
L R
MTP T SVA
AUDIO IN
VIDEO
IN
L R
MTP T AV
2 1
2 1
4 4
2 1
3 3
4 4
Figure 12. Video and Audio Input Connections
a
S-video connector (SV models) — Connect an S-video input to this 4-pin mini DIN
connector.
b
Composite video connector (AV models) — Connect a composite video input to this
connector (female RCA on the MTP T AV AAP, female BNC on all other models).
c
Audio input captive screw connector (MTP T SV A, MTP T AV) — Connect a
balanced or unbalanced audio input to this 3.5 mm, 5-pole captive screw connector.
Connectors are included with each MTP, but you must supply the audio cable. See
figure 13 to wire a connector for the appropriate input type. Use the supplied tie-
wrap to strap the audio cable to the extended tail of the connector. High impedance is
generally over 800 ohms.
LR LR
Unbalanced Stereo Input Balanced Stereo Input
(high impedance) (high impedance)
Ring
Sleeve (s)
Tip
Sleeve
Tip
Sleeve
Tip
Tip
Ring
Do not tin the wires!
Figure 13. Captive Screw Input Connector Wiring
