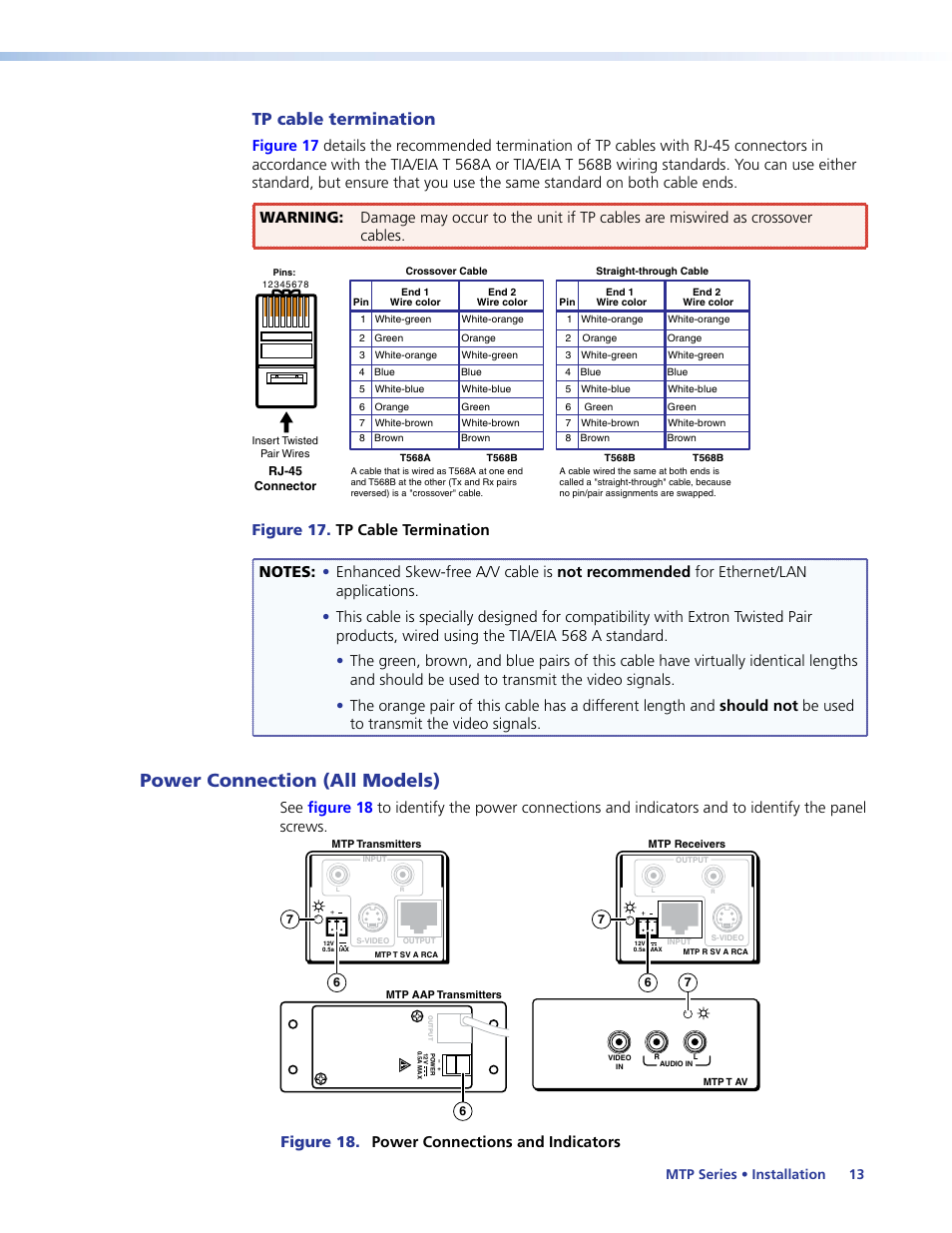

Power connection (all models), Tp cable termination, Figure 18. power connections and indicators – Extron Electronics MTP Series User Guide User Manual
Page 19
