Operation, cont’d

Integration Scaling Matrix Switcher • Operation

3-8

From any menu or submenu, after 10 seconds of inactivity, the ISM saves all
adjustment settings and times out to the default LCD display cycle.

Video & Audio Configuration menu

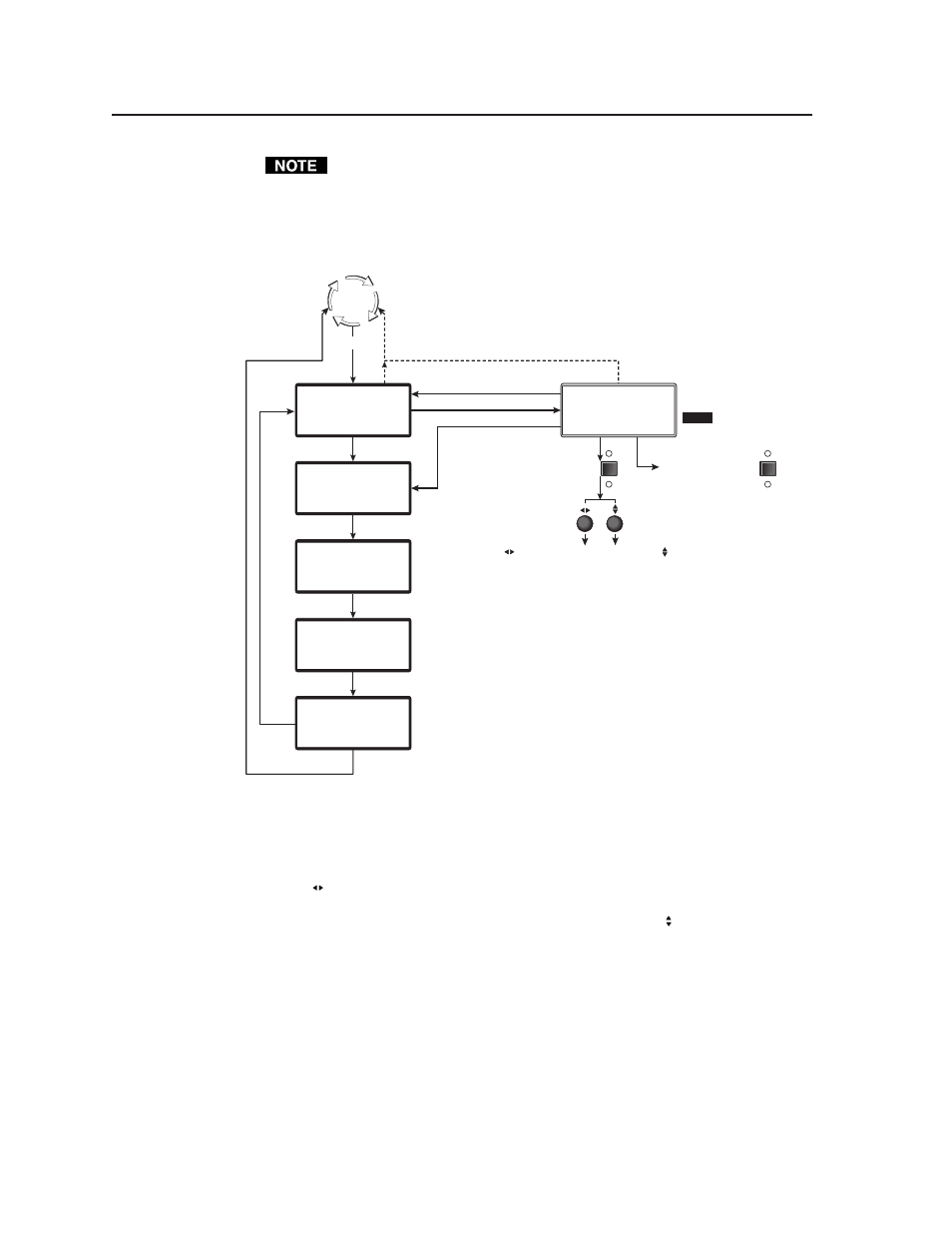

Figure 3-8 is a flowchart that shows an overview of the Video & Audio
Configuration menu and the available settings.

Input video type

• RGB

• Betacam 60

• RGBc

v

S

• HDT

V

• YU

V

i

• S-

v

ideo

• YU

V

p

• Composite

• Betacam 50

Input audio level
-24dB to +9dB

Input Confi

g

uration:

Select an inp

u

t to config

u

re

b

y pressing an Inp

u

t

bu

tton.

Rotate the kno

b

to select

the

v

ideo type.

Rotate the kno

b

to select

the a

u

dio le

v

el.

NOTE

The audio is broken

away in this example.

Default

Cycle

Men

u

Men

u

N

ext

10 sec.

10 sec.

Video & Audio

Confi

g

uration

Video/Audio Confi

g

Input #1 Composite

Audio #3 Level -12db

Men

u

Output

Confi

g

uration

Men

u

Advanced

Confi

g

uration

Men

u

User Presets

Men

u

N

ext

Exit Menu

Press Next to Exit

1

1

Input Confi

g

uration:

If necessary, select
another inp

u

t and

repeat.

2

2

N

ext

Men

u

Figure 3-8 — Input Configuration menu flowchart

Input Configuration submenu

Select an input to configure by pressing and releasing an input button. Rotate the
Adjust knob while in the Input Configuration submenu to select the correct
video format (RGB, RGBcvS, YUVi, YUVp, Betacam 50, Betacam 60, HDTV, S-video,
or composite video) for the selected input. Rotate the Adjust knob to select the
audio gain or attenuation value, from -24 dB to +9 dB. The default for each input is
RGB video and a 0 dB audio level.
