Integration Scaling Matrix Switcher • Installation

Wiring the network cable

The cable can be terminated as either a patch cable or a crossover cable (figure 2-8)
and must be properly terminated for your application:

Patch (straight) cable

— Connection of the ISM to an Ethernet hub, router, or

switcher that also hosts a controlling computer.

Crossover cable

— Direct connection between the ISM and a controlling

computer.

Clip Down

Side

1

1&2

3&6 4&5

7&8

2 3 4 5 6 7 8

1

Pins

2 3 4 5 6 7 8

RJ-45

connector

Patch (straight) cable

Twisted

Pairs

Side 1

Side 2

Pin

Wire color

Pin

Wire color

1

White-orange

1

White-orange

2

Orange

2

Orange

3

White-green

3

White-green

4

Blue

4

Blue

5

White-blue

5

White-blue

6

Green

6

Green

7

White-brown

7

White-brown

8

Brown

8

Brown

Crossover cable

Side 1

Side 2

Pin

Wire color

Pin

Wire color

1

White-orange

1

White-green

2

Orange

2

Green

3

White-green

3

White-orange

4

Blue

4

Blue

5

White-blue

5

White-blue

6

Green

6

Orange

7

White-brown

7

White-brown

8

Brown

8

Brown

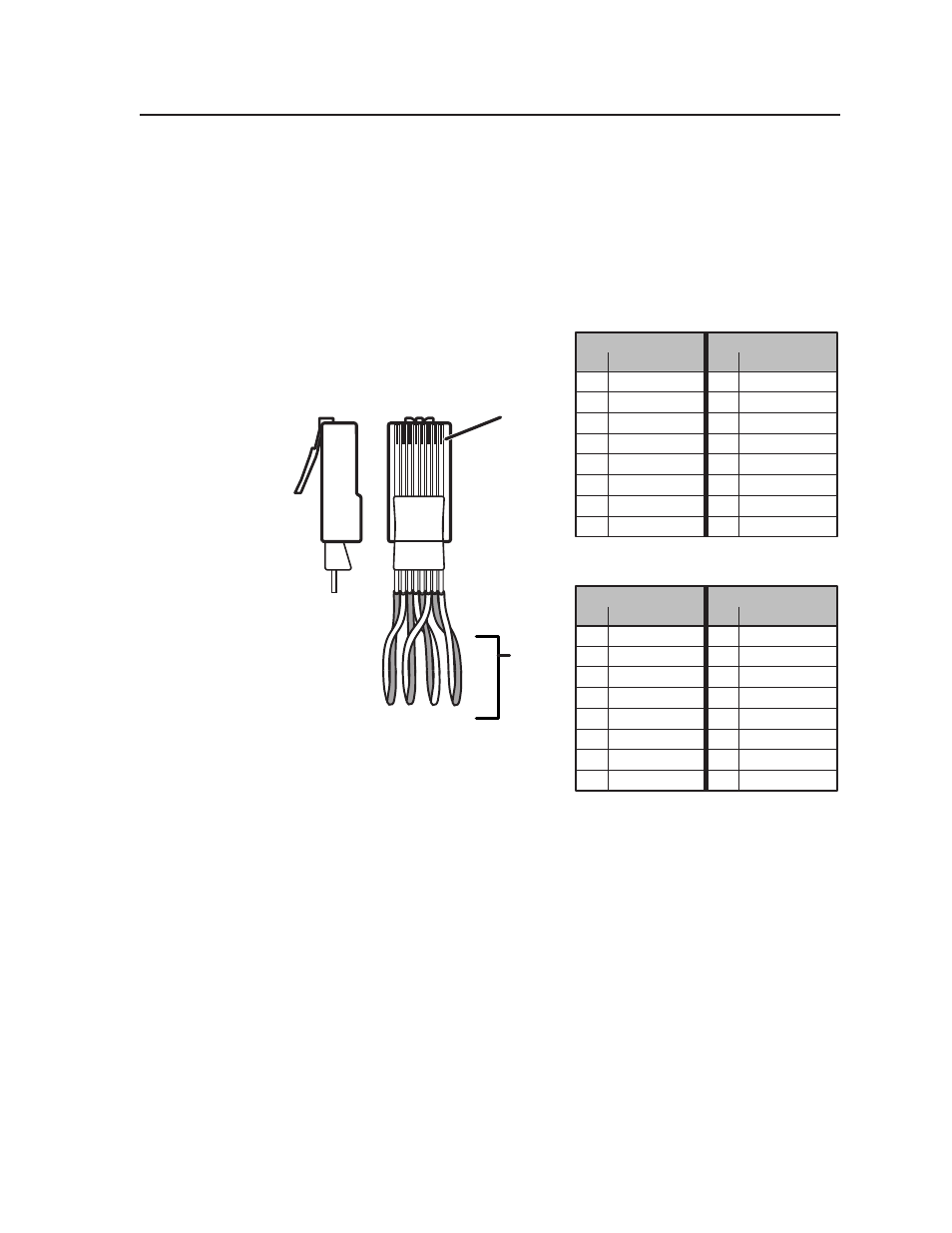

Figure 2-8 — RJ-45 connector pinout tables
