Connection and Configuration, cont’d

IPL T S Series • Connection and Configuration

3-12

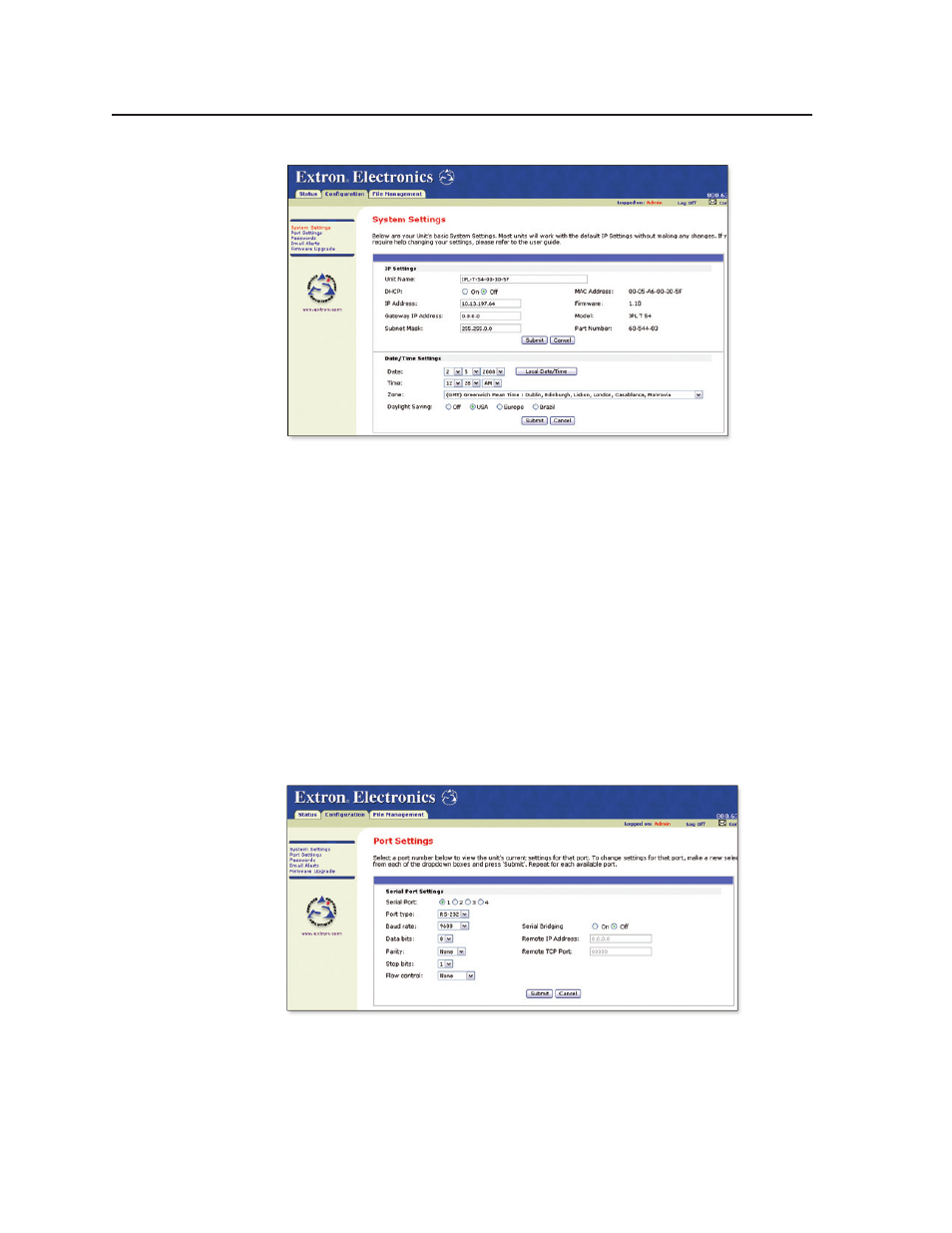

Figure 3-12 — System Settings screen

Port Settings

The Port Settings page grants access to view or change the Serial Port Settings:

• Serial port number — use a radio button to select the desired port
• Port type — RS-232 (default), RS-422, 4S-485
• Baud rate — 300, 600, 1200, 1800, 2400, 3600, 4800, 7200, 9600 (default), 14400,

19200, 28800, 38400, 57600, 115200

• Parity — 7, 8 (default)
• Stop bits — 1 (default), 2
• Flow control — None (default), Hardware, Software
• Serial Bridging — On, Off (default)
• Remote IP Address — view the remote IP address
• Remote TCP Port — view the remote TCP port

Figure 3-13 — Port Settings screen
