2-3 IPL T S Series • Installation and Operation
Mounting options
All units are easily mounted in a rack, under a desk or podium, or on a projector
mount.
Mounting kits and IPL T S Series device compatibility are shown in the table below.
Mounting Type Kit PN S1 S2 S4 S6
MBU 125 Under-desk mount 70-077-01 •
MBU 123 Under-furniture mount 70-212-01 • • •
PMK 200 Projector mount 70-077-04 •
PMK 100 Projector mount 70-217-01 • • •
RSU 129 1U 9.5-inch Deep
universal rack shelf 60-190-01 • • • •
RSF 123 1U 3.5-inch Deep rack shelf 60-190-20 • • • •
Rack mounting an IPL T S Series interface
The following rack mount kits are available:
• PN 60-190-20 RSU 123 1U 3.5-inch Deep Rack Shelf Kit
• PN 60-190-01 RSU 129 1U Universal Rack Shelf Kit
To rack mount an IPL T S Series unit:
1 . If present, remove the rubber feet from the bottom of the IPL T S unit.
2 . Secure the underside of the unit on the rack shelf with two 4-40 x 3/16-inch
screws in opposite (diagonal) corners.
3 . Install additional unit(s) or blank panel(s) on the rack shelf as desired.
4. Insert the shelf into the rack at the desired location.
5. Secure the shelf to the rack using the supplied mounting screws.
(2) 4-40 x 3/16" Screws
Use 2 mounting holes on
opposite corners.
1U Rack Shelf
1/4 Rack Width False Front
Face Plate
IPL T S2
1
R
100
COM T X
LINK ACT
2 R X R T S C T S
IPL T S2
1
R
100
COM T X
LINK ACT
2 R X R T S C T S
IPL T S2
1 R
100
COM T X
LINK ACT
2 R X R T S C T S
®
®
®

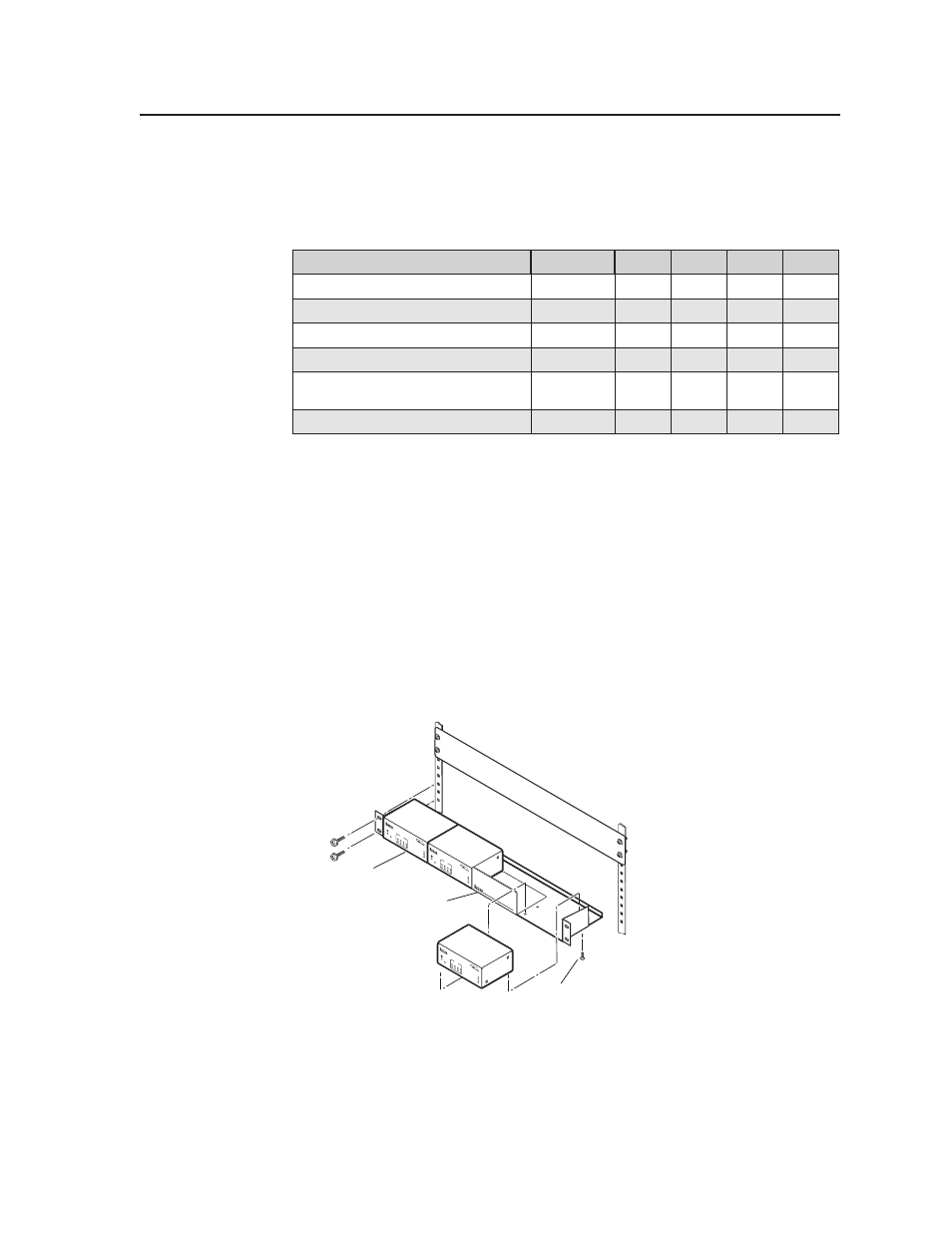

Figure 2-1 — Rack mounting the interface on the rack shelf
N Only products that are 3.5 inches deep can be mounted to a 1U 3.5-inch Deep
Rack Shelf. Any 1U or 1-inch high rack-mountable Extron product can be
mounted on the Universal 1U Rack Shelf (shown in the following diagram).
