FOXBOX Tx/Rx • Remote Control
35
2.
If you have not previously updated firmware for the FOXBOX unit before, on the Add
Device screen (figure 21), select the
RS-232
tab.
If you have previously updated firmware for this model, click
Cancel
. The Firmware
Loader window appears. Proceed to step 5.
NOTES:
•
Although the screen also has a TCP/IP tab, the FOXBOX unit does not
have a LAN port. Do not select the TCP/IP tab.
•
Figure 21 shows the default values.

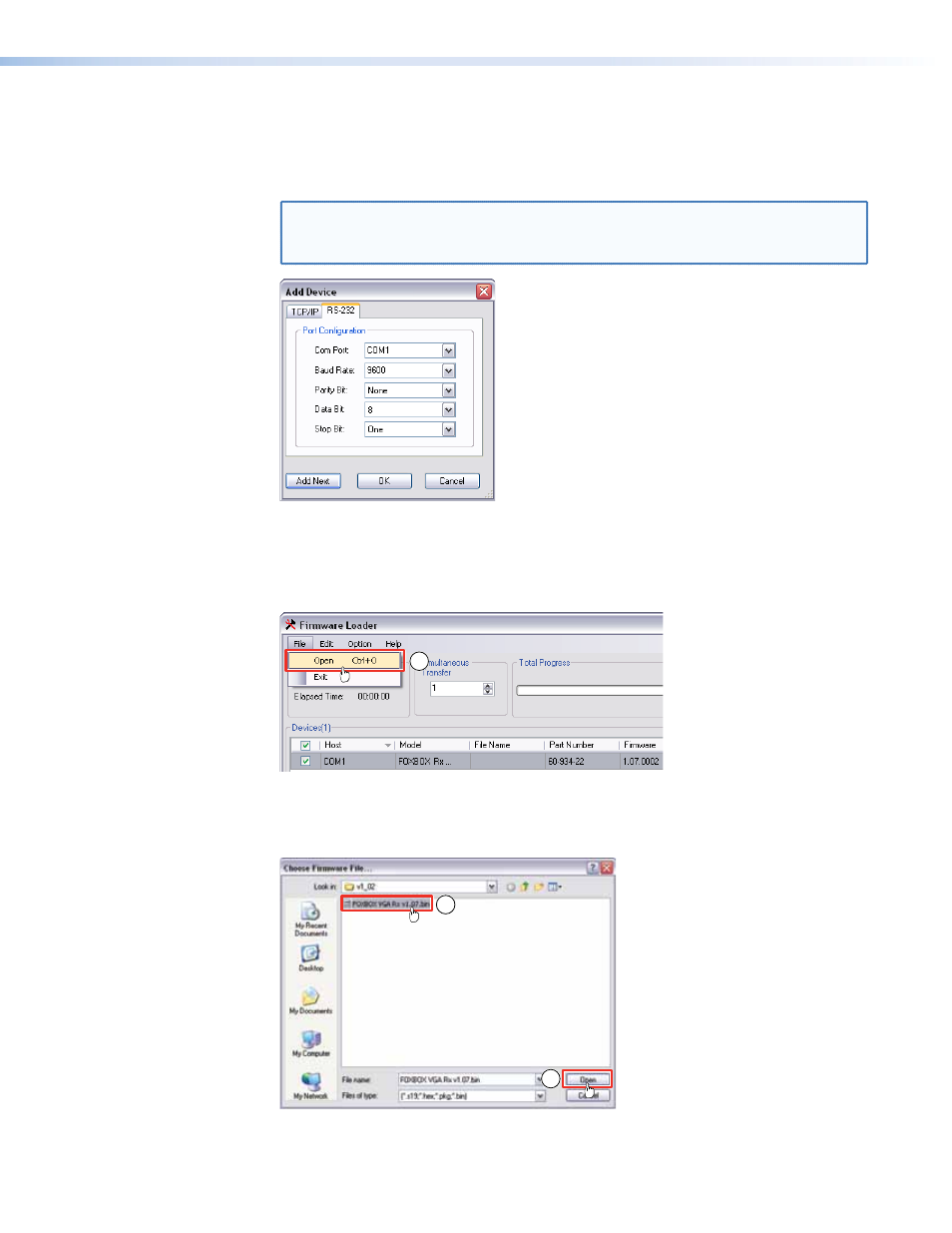

Figure 21.
Add Device Screen
3.
From the drop-down menus on the RS-232 screen, select the appropriate Com port
number and baud rate (the default is 9600).
4.
Click
OK
. The Firmware Loader window appears (figure 22).
5
Figure 22.
Extron Firmware Loader Window
5.
Select the FOXBOX unit and click
File
>
Open
. The Choose Firmware File screen
appears (figure 23).
6
6
Figure 23.
Choose Firmware File Window
