FOX RS 104 RS-232 Inserter • Remote Control

22

RS-232 Port Settings page

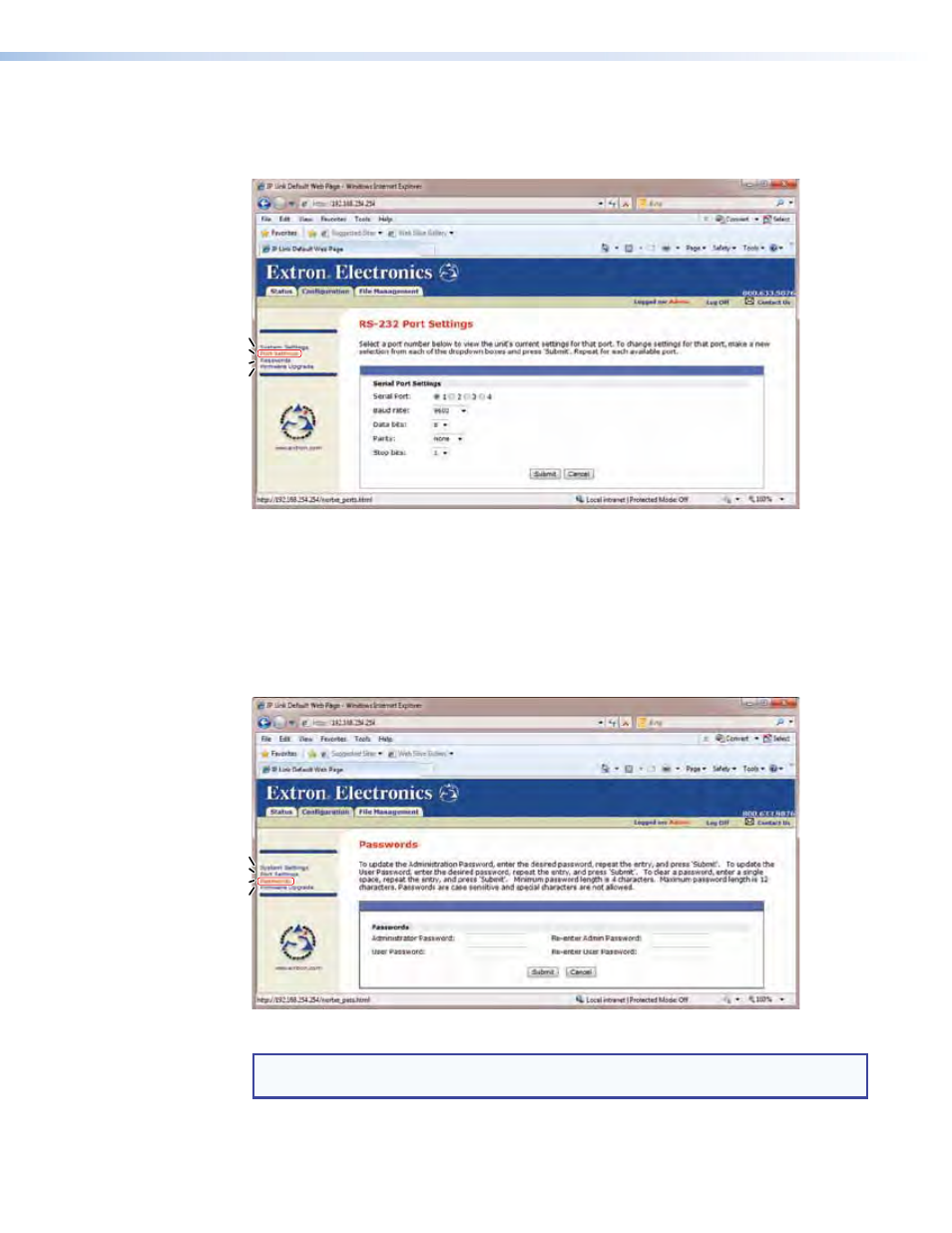

Access the Port Settings page (see figure 13) by clicking the

Port

Settings

link on the

System Settings page.

System Settings

Refresh

Passwords

Firmware Upgrade

Figure 13.

RS-232 Port Settings Page

To tailor the serial data output on one of the fiber optic ports, select the radio button for a
port and then use the drop-down boxes to select the baud rate, number of data bits, parity,
and number of stop bits.

Passwords Page

Access the Passwords page (see figure 14) by clicking the

Passwords

link on the System

Settings page.

System Settings

Port Settings

Refresh

Firmware Upgrade

Figure 14.

Passwords Page

NOTE: If the inserter is password protected, fields on this page can be edited only by

people logged in as administrators.
