Configuration Tab
System Settings page
The FOX inserter downloads the System Settings page (see figure 11) when you click
the
Configuration tab. The screen consists of fields in which you can view and edit IP
administration and system settings. You can access the Port Settings, Passwords, and
Firmware Upgrade pages by clicking the appropriate link.
Refresh
Port Settings
Passwords
Firmware Upgrade

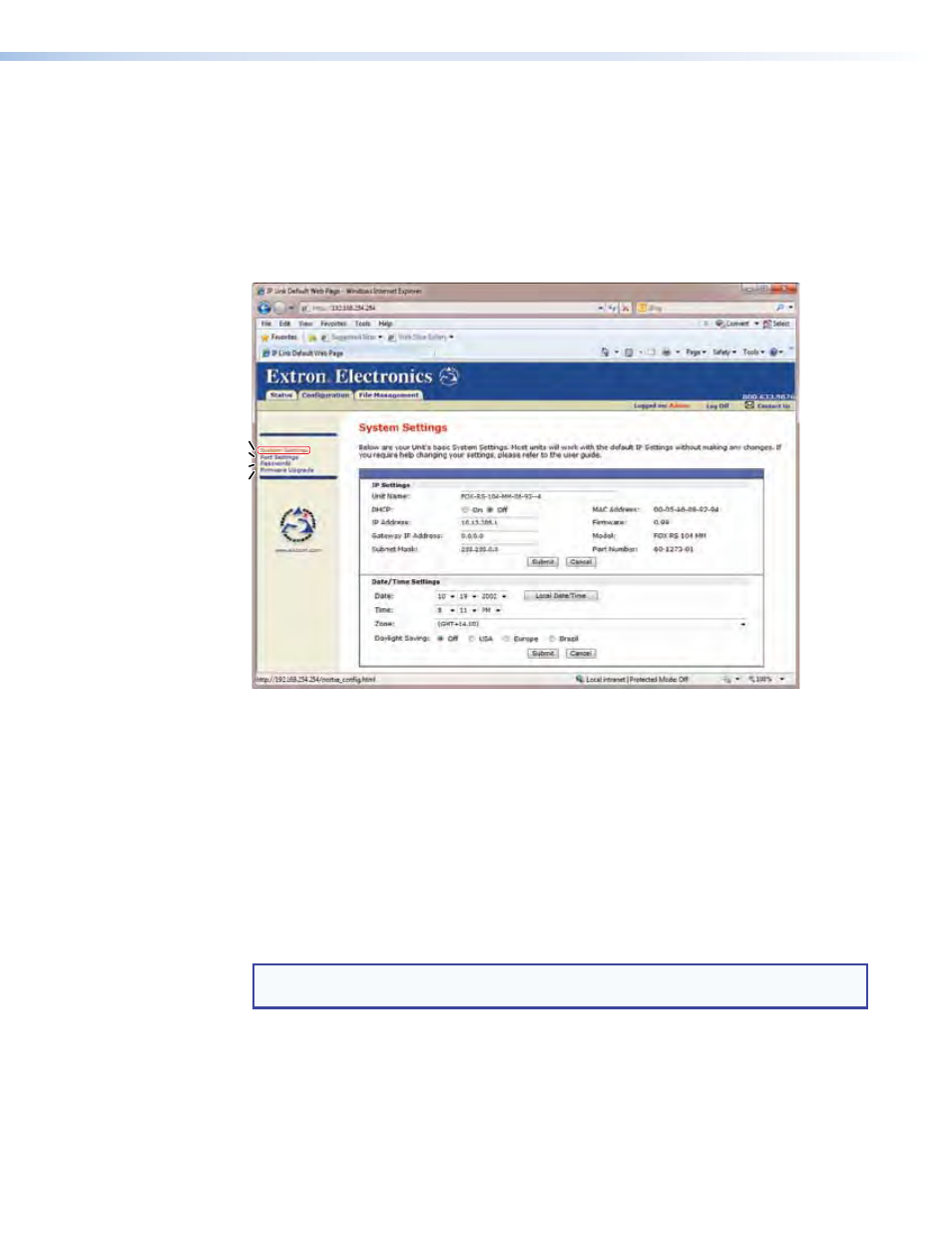

Figure 11. System Settings Page
On password-protected connections, there are two levels of protection: administrator and
user. Administrators have full access to all capabilities and editing functions. Users can view
all settings with the exception of passwords.
IP Settings fields
The IP Settings fields provide a location for viewing and editing settings unique to the
Ethernet interface. After editing any of the settings on this page, click the
Submit button at
the bottom of the page.
Unit Name field — The
Unit Name field contains the name used as the “from” information
when the inserter e-mails notification of its failed or repaired status. This name field can be
changed to any valid name, up to 24 alphanumeric characters.
NOTE: The HTML language reserves certain characters for specific functions (see
“ Special Characters ” on page 28).
DHCP radio buttons — The DHCP On radio button directs the inserter to ignore any entered
IP addresses and to obtain its IP address from a Dynamic Host Configuration Protocol
(DHCP) server (if the network is DHCP capable). The
DHCP Off radio button turns DHCP off.
Contact the local system administrator to determine if DHCP is appropriate.
