FOX RS 104 RS-232 Inserter • Installation and Operation

8

LAN port cabling

It is vital that your Ethernet cables be the correct cable type and that they be properly
terminated with the correct pinout. Ethernet links use Category (CAT) 5e or CAT 6,
unshielded twisted pair (UTP) or shielded twisted pair (STP) cables, terminated with RJ-45
connectors. Ethernet cables are limited to a length of 328 feet (100 m).

NOTES: • Do not use standard telephone cables. Telephone cables do not support

Ethernet or Fast Ethernet.

• Do not stretch or bend cables. Transmission errors can occur.

The cable used depends on your network speed. The inserter supports both
10 Mbps (10Base-T — Ethernet) and 100 Mbps (100Base-T — Fast Ethernet), half-duplex
and full-duplex Ethernet connections.

10Base-T Ethernet requires CAT 3 UTP or STP cable at minimum.

100Base-T Fast Ethernet requires CAT 5e UTP or STP cable at minimum.

The Ethernet cable can be terminated as a straight-through cable or a crossover cable and
must be properly terminated for your application (see figure 6).

Crossover cable — Direct connection between the computer and the inserter

Patch (straight) cable — Connection of the FOX inserter to an Ethernet LAN

A cable that is wired as T568A at one end
and T568B at the other (Tx and Rx pairs
reversed) is a "crossover" cable.

A cable that is wired the same at both ends is
called a "straight-through" cable, because
no pin/pair assignments are swapped.

12345678

RJ-45

Connector

Insert Twisted

Pair Wires

Pins:

Crossover Cable

Straight-through Cable

Pin

1

2

3

4

5

6

7

8

Wire color

White-green

Green

White-orange

Blue

White-blue

Orange

White-brown

Brown

Wire color

T568A

T568B

End 1

End 2

End 1

End 2

White-orange

Orange

White-green

Blue

White-blue

Green

White-brown

Brown

Pin

1

2

3

4

5

6

7

8

Wire color

White-orange

White-green

Blue

White-blue

White-brown

Brown

Wire color

T568B

T568B

White-orange

Orange

Orange

White-green

Blue

White-blue

Green

Green

White-brown

Brown

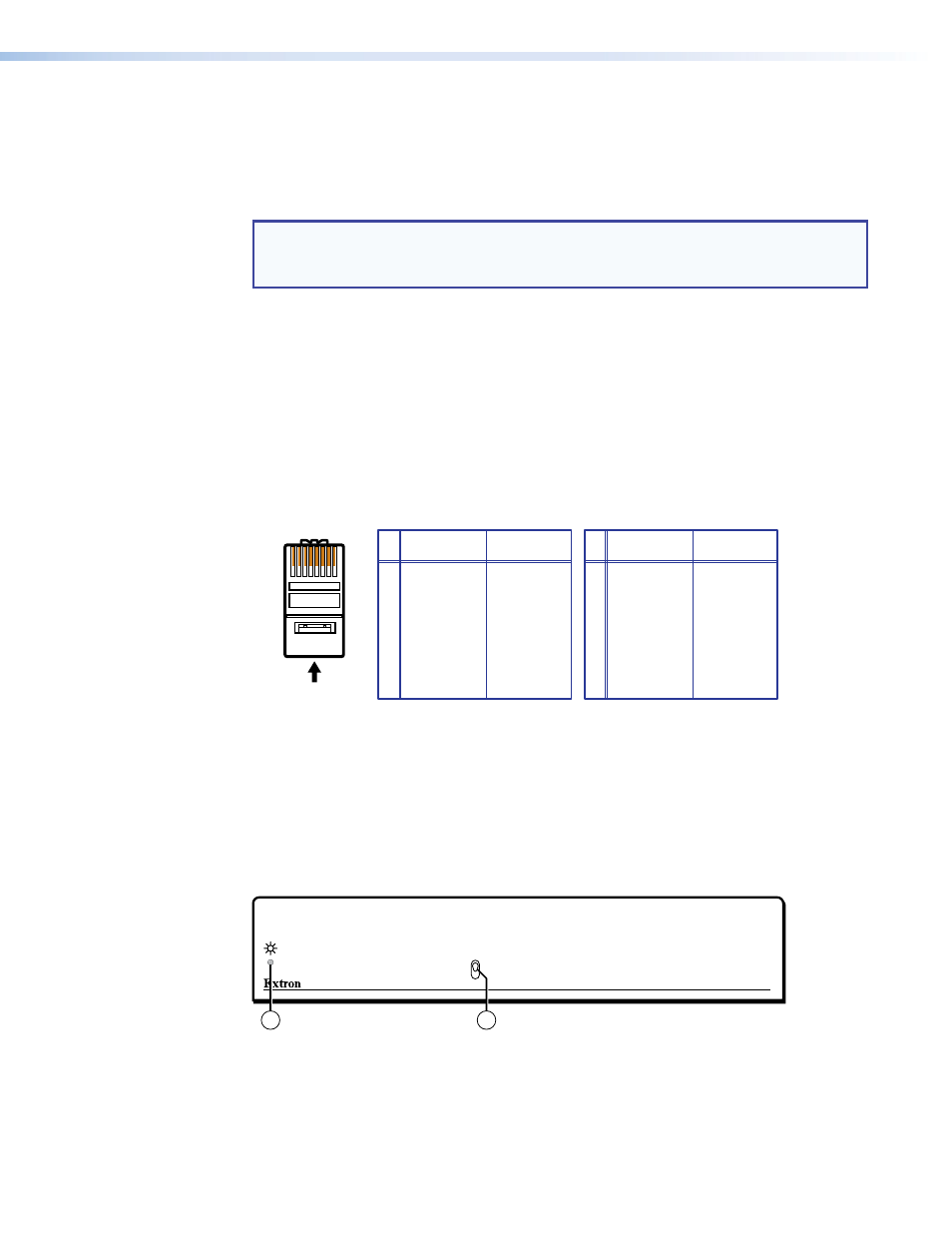

Figure 6.

RJ-45 Connector and Pinout Tables

Operation

Front Panel Features

4.25G

2.125G

INPUT DATA RATE

FOX RS 104

FIBER RS-232 INSERTER

1

2

Figure 7.

FOX RS 104 Front Panel Features

a

Power LED — This LED lights green when power is applied.

b

Input Data Rate switch — This switch selects between the 2.125 Gbits (2G) and

4.25 Gbits (4G) input data rate. After switching data rates, cycle power to the inserter to
properly lock onto the selected input data rate.
