Operation
This section of the guide provides information on:
• Front Panel Features
• Operation
• EDID Minder
• Disabling the EDID Minder
• Troubleshooting
Front Panel Features

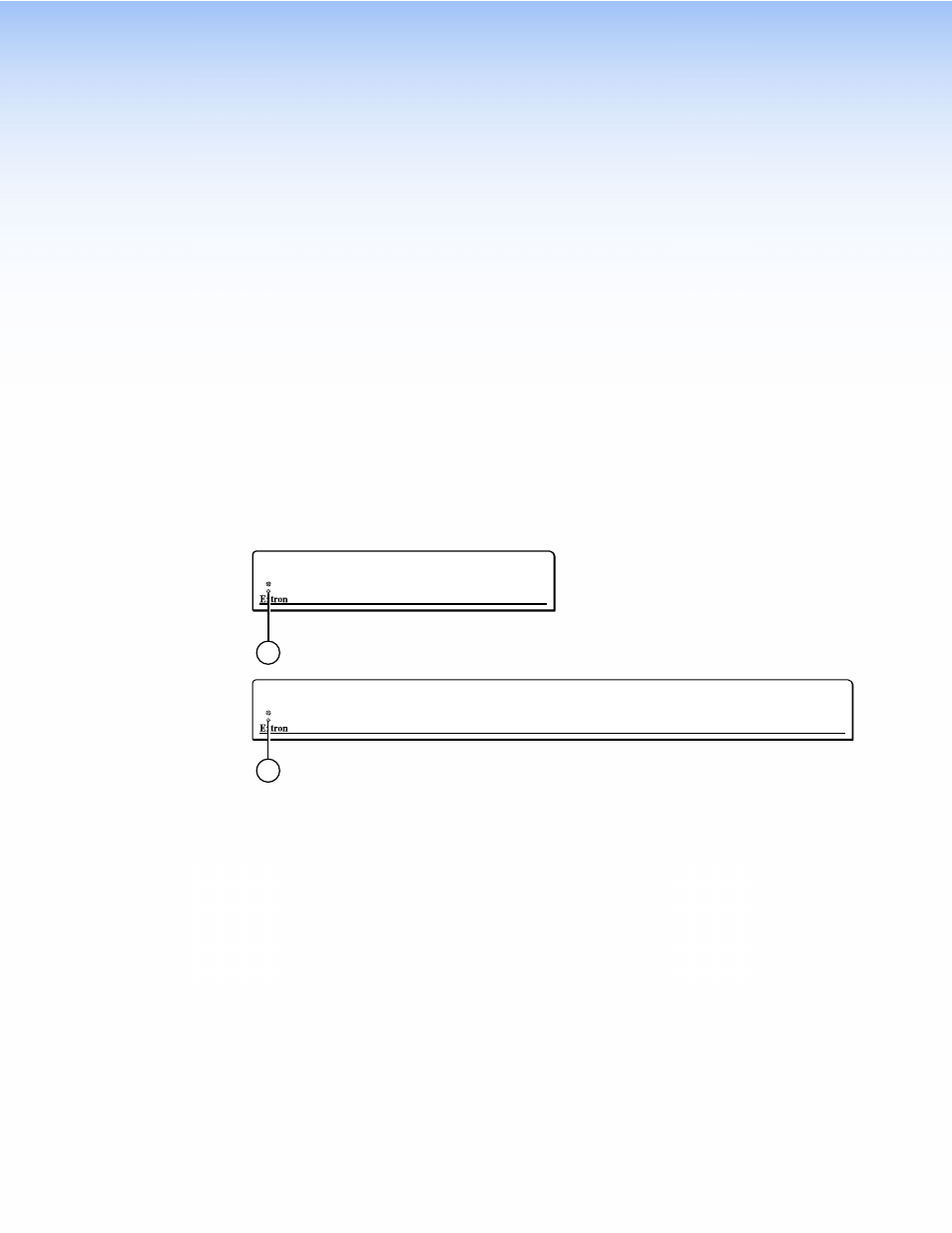

Figure 4 shows the front panel for the DVI DA4 Plus (top) and the front panel for the
DVI DA6 Plus/DVI DA8 Plus, which are identical (bottom).
DVI DA PLUS
DVI DISTRIBUTION AMPLIFIER
1
DVI DA Plus SERIES
DVI DISTRIBUTION AMPLIFIER
1
Figure 4. DVI DA Plus Series Front Panel Features
a
LED indicator — This LED indicator lights amber when the unit is receiving power but
no input signal. When the unit detects an input signal, the LED lights green.
Operation
Once the distribution amplifier has been installed and the cables have been connected :
1. Power on the display devices.
2. Power on the distribution amplifier. The LED lights amber to show that the unit is
receiving power.
3. Power on the input device.
DVI DA Plus Series • Operation 7
