Rear Panel Features

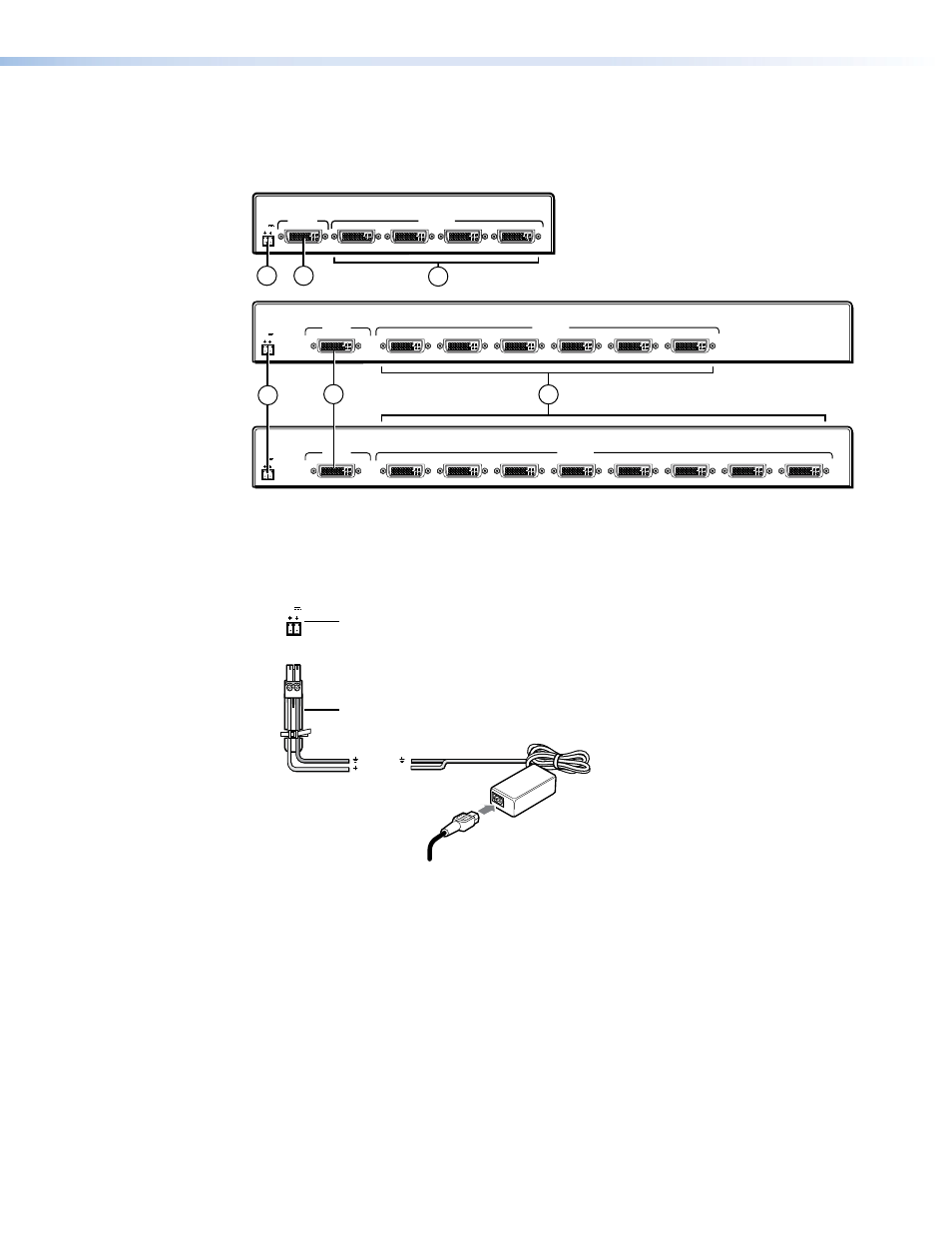

The rear panels for the DVI DA4 Plus (top panel), the DVI DA6 Plus (middle panel), and
DVI DA8 Plus (bottom panel) are shown below.
12V
1.0A MAX
POWER
DVI-D INPUT
DVI-D OUTPUT
1
2
3
4
DVI DA4 Plus
3
1
2
12V
1.5A MAX
POWER
DVI-D INPUT
DVI-D OUTPUT
1
2
3
4
5
6
7
8
DVI DA8 Plus
12V
1.5A MAX
POWER
DVI-D INPUT
DVI-D OUTPUT
1
2
3
4
5
6
DVI DA6 Plus
3
2
1
Figure 2.
Rear Panel Features
a
Power input — Connect the two pole, 3.5 mm captive screw connector from the
power supply (provided with the unit) to this socket on the rear panel.
12V
1.0A MAX
POWER
Back Panel
Power Receptacle
DC Power Cord
Captive Screw Connector
AC Power Cord
Ground
+12 VDC
External
Power Supply
(12 VDC, 1 A )
Figure 3.
Power Supply Connection
The external power supply in the illustration above (12 VDC, 1 A) is for use with the
DVI DA4 Plus. The DVI DA6 Plus and DVI DA8 Plus use a 12 VDC, 3 A external power
supply.
DVI DA Plus Series • Installation
4
