AVT 100 • Operation
Operation, cont’d
AVT 100 • Operation
• L-R — Select the left input channel for left output and the
right input channel for right output.
• R-L — Select the right input channel for left output and
the left input channel for right output.
(See chapter 4, “Software Configuration and Control,” for
information on the SIS commands for audio mode selection. To
switch audio output modes using the Windows-based control
software, refer to the help file.)
Selecting the PAL broadcasting standard
There are several different PAL broadcasting standards. You
can select the appropriate standard using SIS commands (see
chapter 4, “Software Configuration and Control) or the
Windows-based control software (see the software program’s
help file).
Selecting the cable TV frequency (NTSC only)
You can select the CATV frequency (Standard, IRC, HRC, or
Japan standard) so that your AVT 100 is compatible with the
frequency used by your cable provider. You can select the
frequency using SIS commands (see chapter 4, “Software
Configuration and Control”) or the Windows-based control
software (see the software program’s help file).
Using the IR Remote Control for AVT 100
The optional hand-held AVT 100 IR Remote Control lets you
remotely perform many of the functions that are also available
through the front panel buttons, SIS commands, and/or the
Windows-based control software. The AVT responds to
commands from the AVT 100 Remote as if the corresponding
button were pressed on the front panel, or the corresponding
SIS command or Windows-based control software selection
were entered.
From a distance of no more than 30 feet, the remote control
sends infrared (IR) signals to the AVT 100 through the tuner’s
front panel. The IR receiver is located to the right of the channel
display, but is not visible from in front of the AVT 100.

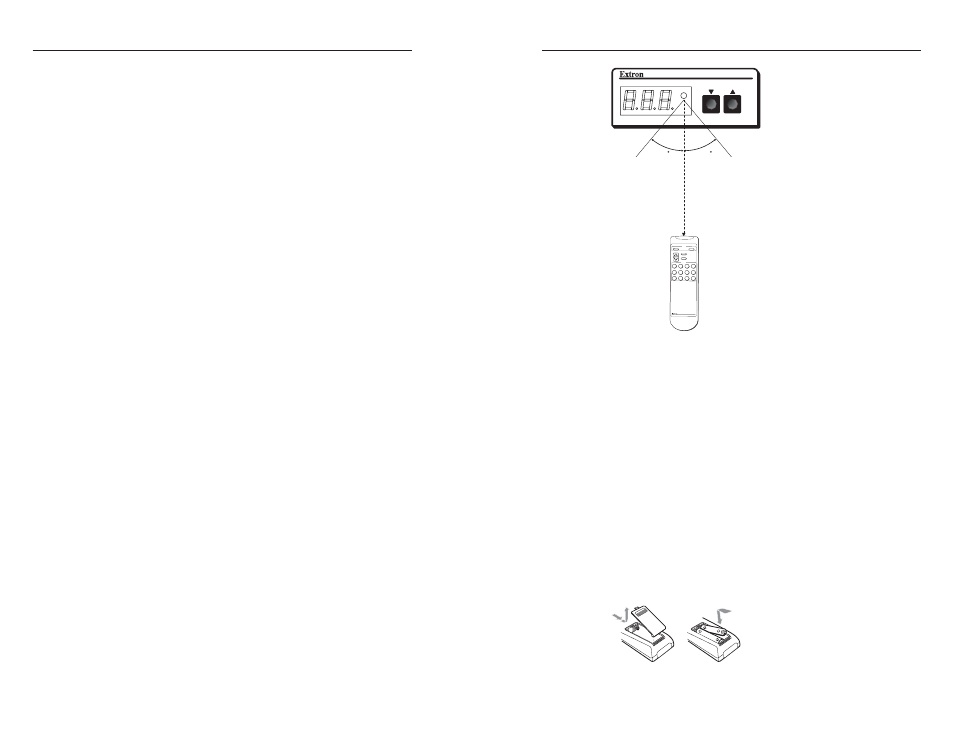

The infrared remote receiver can receive the signal if it is sent
from within a 40 degree
arc to the right or left of direct line of
sight between the remote and the AVT 100 receiver. See the
diagram below.
TV/CABLE TUNER
AVT 100
CHANNEL
AVT 100
40 40
30 feet
maximum
AVT Remote
Channel
TV TUNE
MUTE
AVT 100 REMOTE
PRESET
Video Audio
0 1 2 3
4 5 6 7
8 9 ENTER SAVE
Area for remote signal reception
N The AVT 100 must be plugged in before you operate the
remote control. Setup operations cannot be performed
from the remote.
Locking IR remote access
The AVT 100 Remote Control can be set to lock out users from
using it to control the AVT 100. This remote access can be
turned on and off via SIS commands or the Windows-based
control software. When remote access is set to Off, all AVT 100
controls remain available through other means (SIS commands,
Windows-based control software, and the front panel).
Installing batteries in the AVT 100 Remote
Install two AAA batteries in the AVT 100 Remote Control as
shown below.
Installing batteries in the AVT 100 Remote
