Bell & Gossett P2001489 Integrated Technologic with Sensorless Control User Manual
Page 39

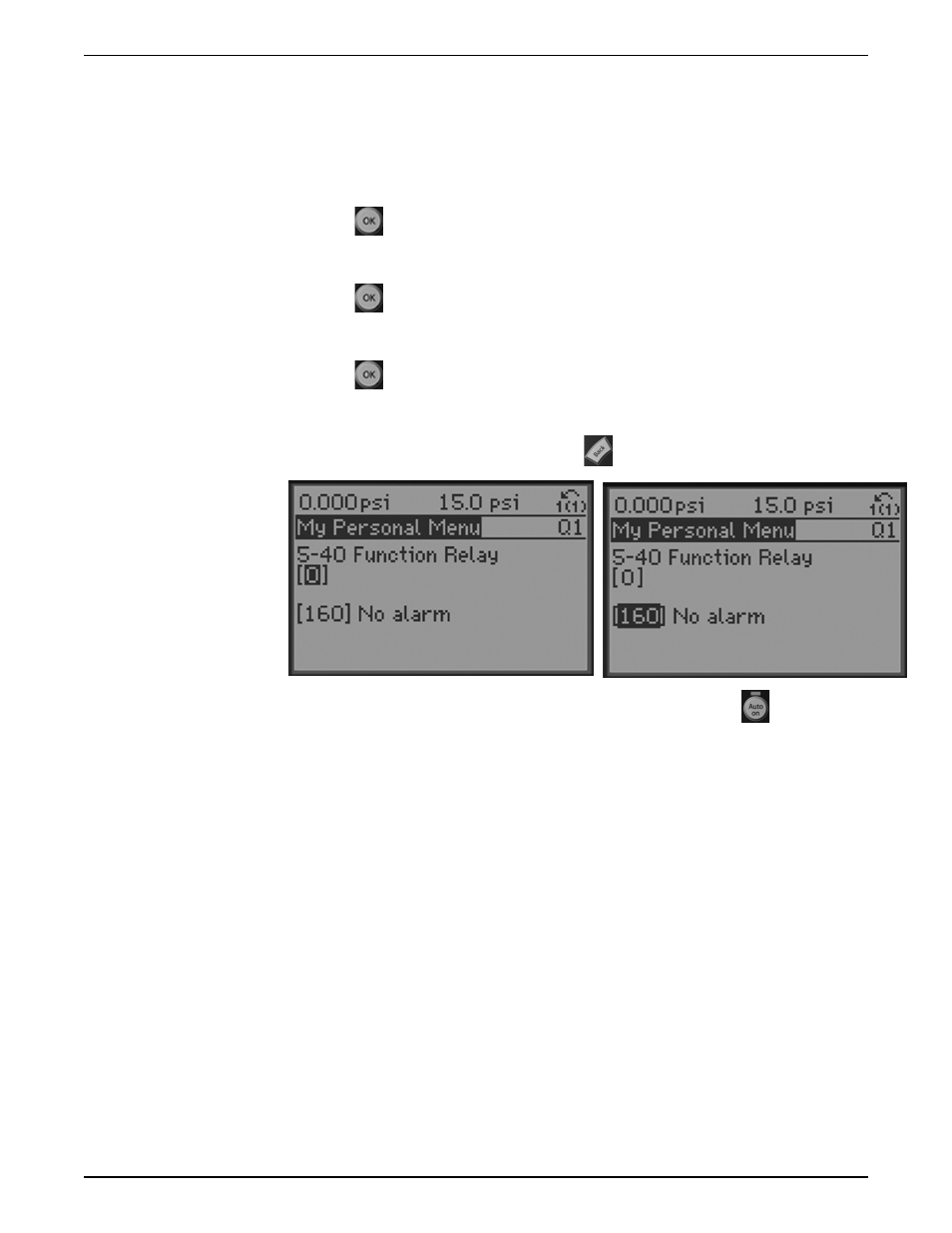

Parameter 5-40, Function Relay, in My Personal Menu is an array
parameter. This parameter can be programmed using the following
procedure.
1. Enter My Personal Menu as previously described.
2. Use the up and down arrows to scroll to parameter 5-40 Function
Relay.
3.
Press
to enable editing.
4. Use the up and down arrows to select Relay 1 or Relay 2. Relay 1 is [0].
Relay 2 is [1].
5.
Press
to save the selection and enable editing of the relay
function.
6. Use the up and down arrows to select the desired relay function.
7.
Press
to save the selection. This will also enable selection of Relay
1 or Relay 2. Repeat the steps above to change the function of the
other relay.
8.
To exit editing of the parameter press
.
Once the parameters in My Personal Menu have been set, press
to
start the controller and complete the commissioning of the controller.
System Setup and Operation
Integrated Technologic
®
with Sensorless Control INSTRUCTION MANUAL
