130BA150.10

9 - 10 mm

(0.37 in)

130BT31

1.10

130BT312.10

1.

2.

3.

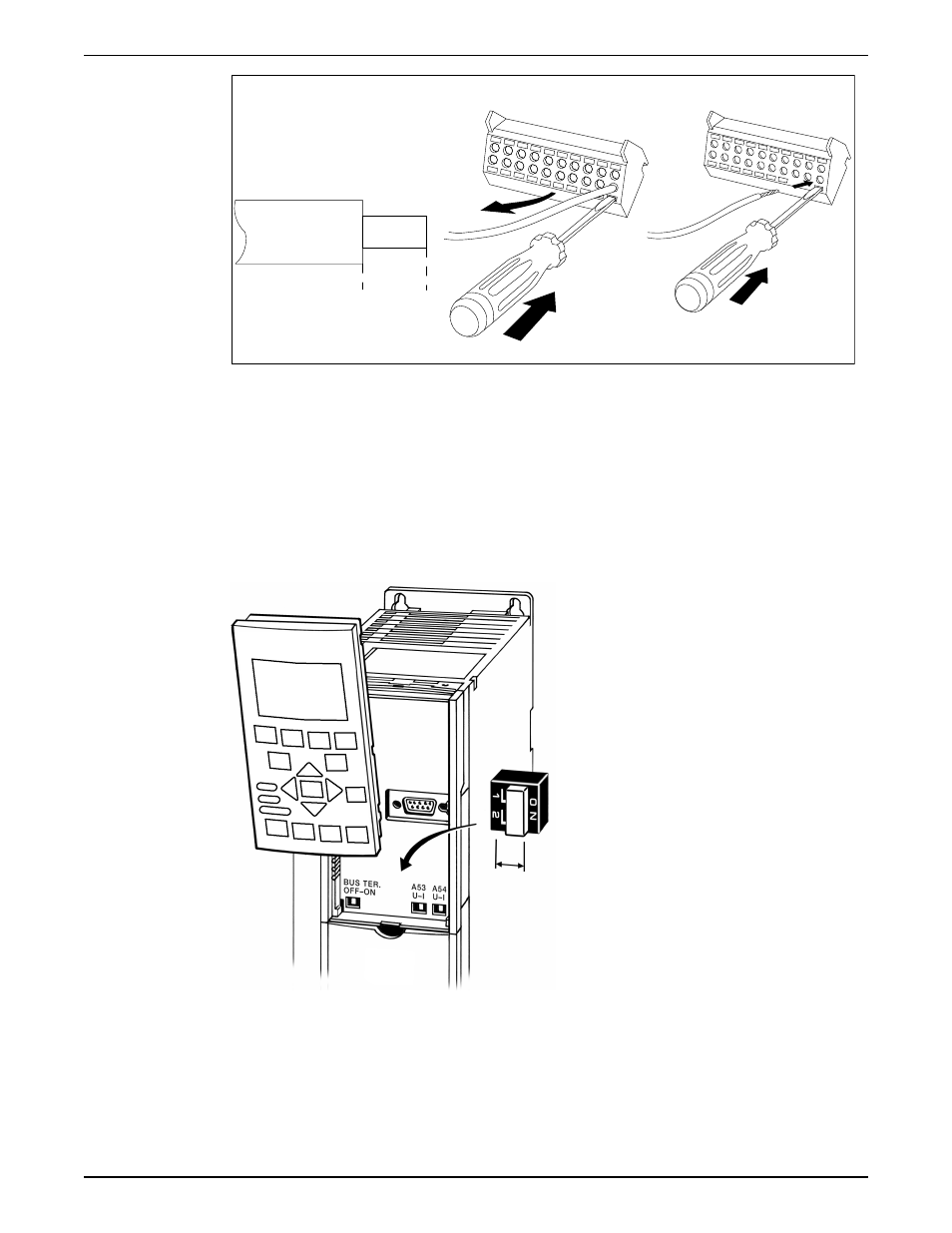

Figure 4: Connecting and disconnecting control wiring

Analog input configuration

If an analog input is used, the analog input configuration switches must be set properly.
To set the configuration switches, remove the local control panel and set the appropriate
switch as required.

• To configure the analog input as a voltage input, set the configuration switch to U.
• Set the configuration switch to I to enable the input as a current input.
• Switch A53 is used to configure analog input 53.
• Switch A54 is used to configure analog input 54.

130BT310.10

Figure 5: Configuration switch location

Electrical Installation

14

Integrated Technologic

®

with Sensorless Control INSTRUCTION MANUAL
