Set-up
2 has been configured for constant flow control with a wired flow transducer. The
flow transducer input is configured for a transducer with a maximum output at
300 GPM. The setpoint is preset to 150 GPM. Connect transducer feedback to
AI53. Be sure to properly set the analog input configuration switch A53 to match
the sensor output type (U = 0-10V output, I = 4-20mA output).
Set-up
3 has been configured for constant pressure control using sensorless pressure
control. No transducer connections are required. The setpoint has been
preconfigured at the factory based on the order request. This is the default set-
up.
Set-up
4 has been configured for constant flow control using sensorless flow control. No
transducer connections are required. The setpoint has been preconfigured at
the factory based on the order request.

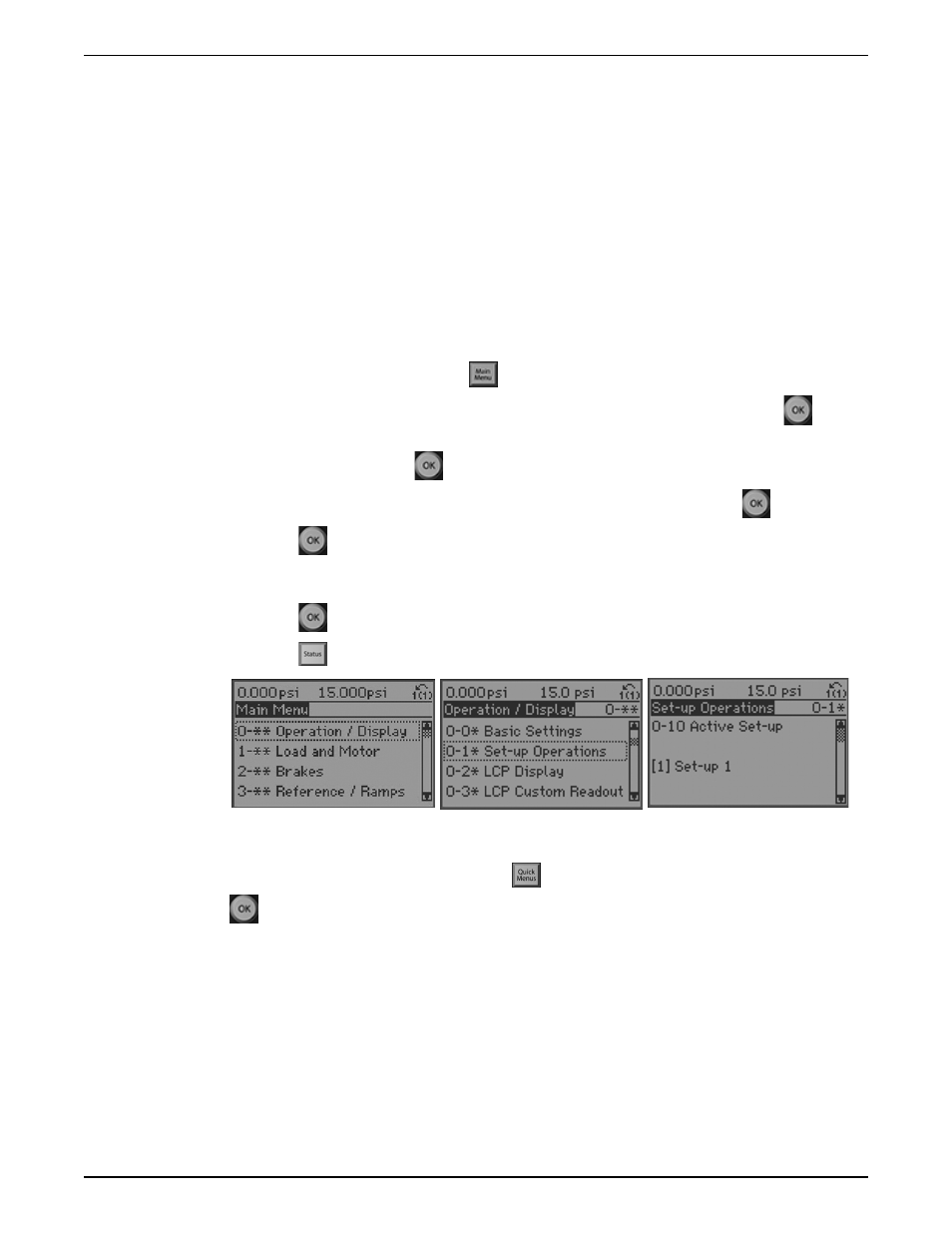

The controller comes configured with Set-up 3 as the active set-up (sensorless pressure
control). To select a different set-up:
1.
From the status screen, press to enter the parameter list.
2.
Use the up and down arrows to scroll to 0–** Operation/Display and press .
3. Under Operation/Display use the up and down arrows to select 0–1* Set-up
Operations and press
4.
Under 0–1* Set-up Operations select 0–10 Active Set-up by pressing .
5.
Press to enable editing of the parameter.
6. Change parameter 0–10 Active Set-up to the desired set-up using the up and down
buttons.
7.
Press to save the changes.
8.
Press to return to the status screen.
To complete commissioning of the controller it is recommended to use My Personal
Menu. My Personal Menu has been configured with parameters commonly used in pump
applications. To access this menu press and select My Personal Menu by pressing
. Scroll through the My Personal Menu parameter list and adjust the parameters using
the navigation keys. The following parameters have been added to My Personal Menu for
quick access:
System Setup and Operation
