Electrical/Mechanical Specifications
11
AQUAVAR Controller Technical Data:
AQUAVAR Controller
Motor Supply Voltage Recommended
Part Nos. Rated Output Voltage Current 40-60 Hz Circuit Protection
(1)
04168321
2 HP 3 ph 230V 7A
Single Phase
15 Ampere
240 VAC ± 10%
04168331
3 HP 3 ph 230V 10A
Single Phase
15 Ampere
240 VAC ± 10%
04168371
5 HP 3 ph 460V 9A
Three Phase
15 Ampere
380-460 VAC ± 15%
04168491
7½ HP 3 ph 460V 13½A
Three Phase
20 Ampere
380-460 VAC ± 15%
04168501
10 HP 3 ph 460V 17A Three Phase 25 Ampere
380-460 VAC ± 15%
04168511 15 HP 3 ph 460V 21A 35 Ampere
AQUAVAR Controller
(2)
Motor Circuit Protection Circuit Protection
Part Rated
Supply Voltage
Input
Input Voltage Current Single Phase
Three Phase
Number Output Frequency INPUT
(1)
INPUT
(1)
(HP) 40-60 Hz (Hz) Phase (V) (A) Fuse Size (A) Fuse Size (A)
04169131 5 220-240 VAC +/- 15% 48....62 1 or 3 ph 3 ph 230V 15 40 20
04169141 7½ 220-240VAC +/- 15% 48....63 1 or 3 ph 3 ph 230V 22 60 30
04169181 10 220-240VAC +/- 15% 48....64 1ph only 3 ph 230V 28 70 NA
04169151 10 220-240VAC +/- 15% 48....64 3ph only 3 ph 230V 28 NA 40
NOTE: (1) Recommended short circuit protection is UL Type T, very fast acting fuses.
(2) Dimensions are similiar to the 5, 7½ and 10 HP, 3 phase, 460 Volt units.

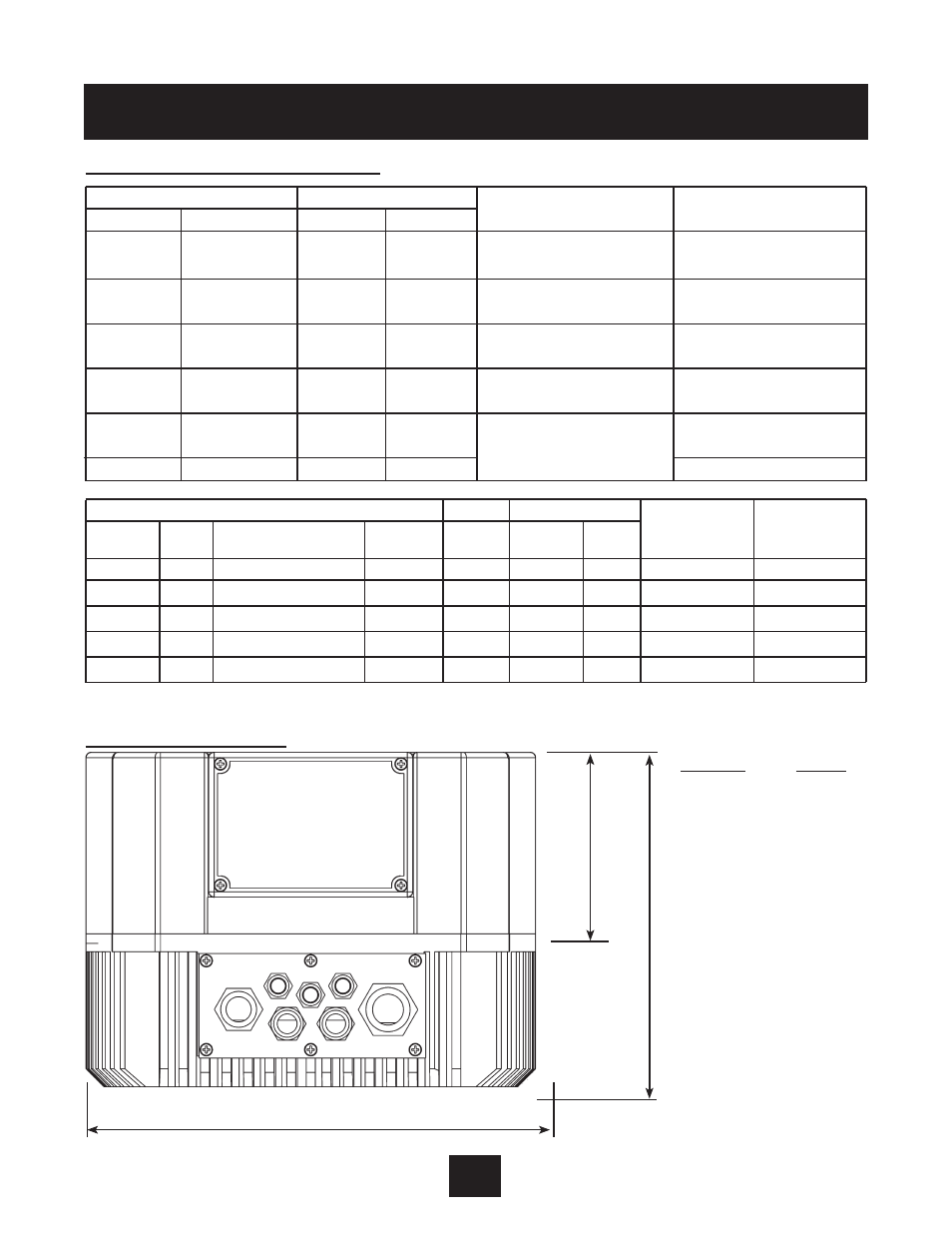

Dimensions and Weights
Part Nos. Weight
04168321 12 lbs.
04168331 12 lbs.
04168371 12 lbs.
04168491 22 lbs.
04168501 22 lbs.
NOTE: All motors must be
at least 3 phase, TEFC,
Class B design.
Ø195 (2–5 HP)
Ø280 (7½–10 HP)
100
185
* Dimensions are in mm.
1 inch = 25.4 mm
