Installation – Xylem IM250R03 Aquavar CPC-FD User Manual
Page 7
7
Preparing for Installation (Supplement to Aquavar CPC User’s Manual)

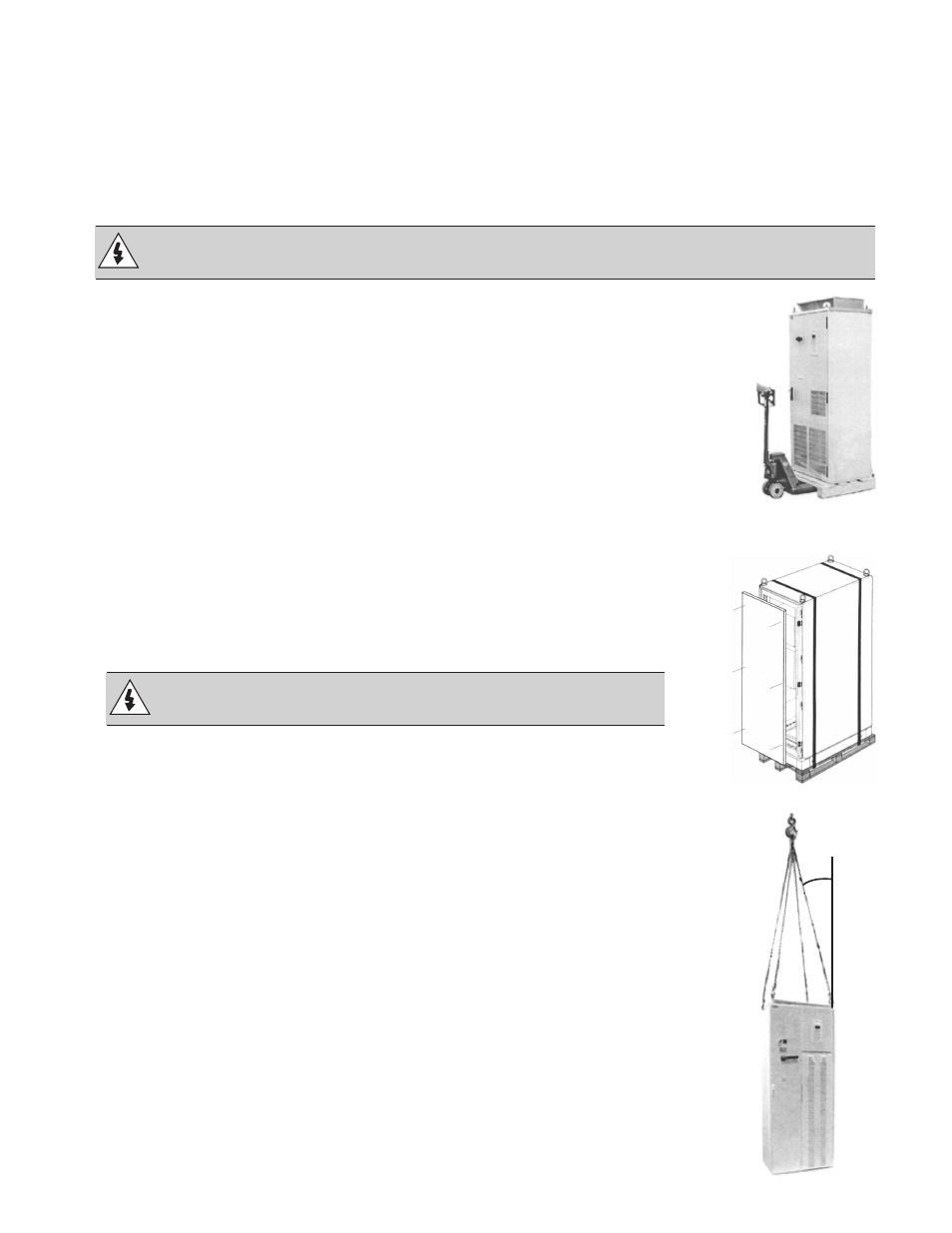

Lifting the Drive
R7…R8 Frames
WARNING! Handle and ship floor mounted enclosures only in
the upright position. These units are not designed to be laid on their backs.
1. Use a pallet truck to move the package/enclosure to the installation site.
2. Remove the cabinet side panels from NEMA 1 and 12 enclosures for
access to the cabinet/pallet mounting bolts. (Six (6) torx screws hold
each cabinet side panel in place. Leave the side panels off until later.)
3. Remove the 4 bolts that secure the cabinet to the shipping pallet.
WARNING! Use the lifting lugs/bars at the top of the unit
to lift R7/R8 drives.
4. Use a hoist to lift the drive. (Do not place drive in final position until
mounting site is prepared.
PC00005
R70010
2
PC00003
30º
INSTALLATION
