3 System upgrade
74
the HSF connectors.

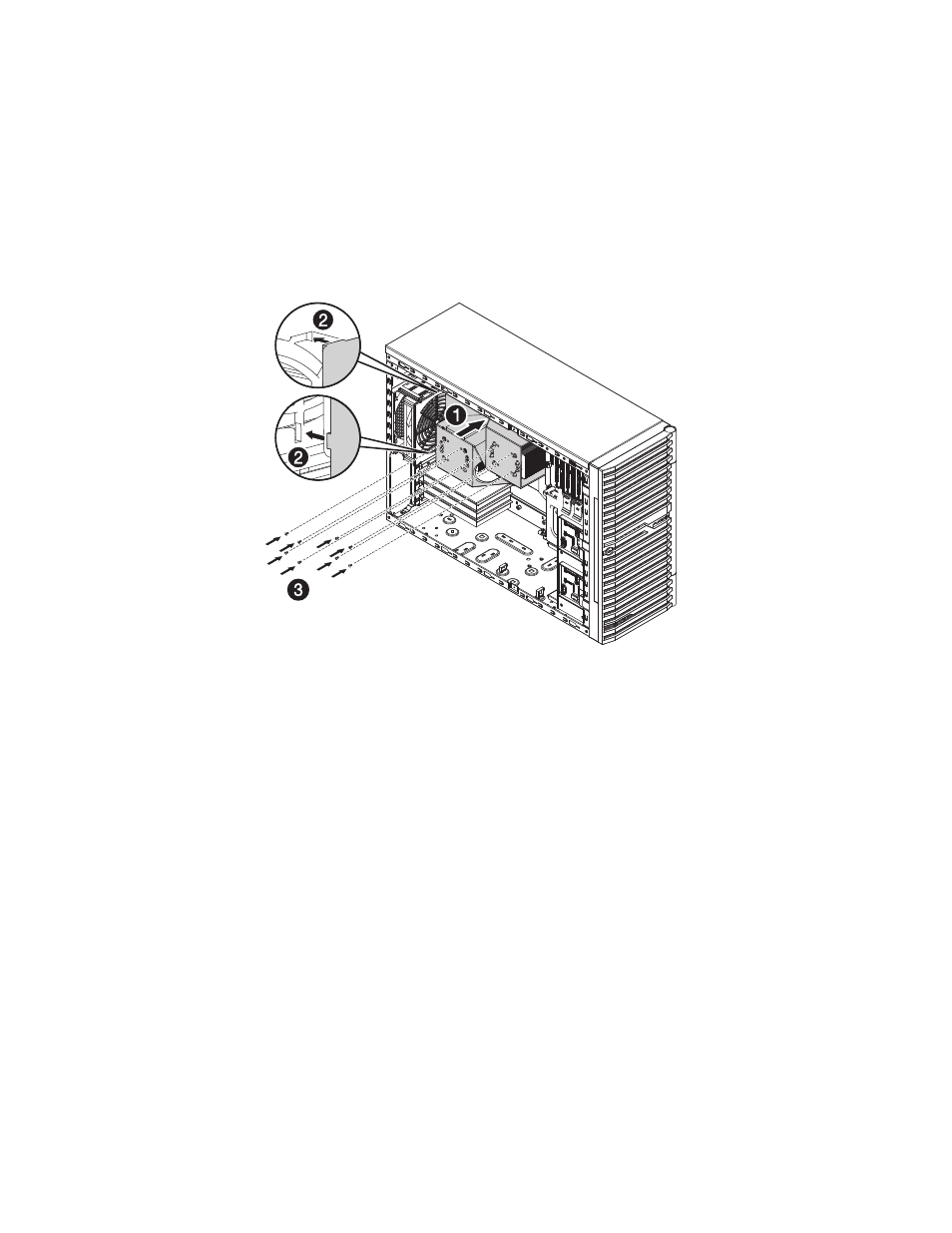

11 Replace the HSF air duct assembly. Make sure to seat the HSF air
duct assembly properly before replacing the screws in place.
12 Observe the post-installation instructions described on page 42.
To install a second processor:
1
Perform steps 1 through 4 of the previous section.
2
Prepare the processor socket 2 for installation.
Refer to steps 5-1 and 5-2 of the previous section.
3
Install the new processor.
Refer to steps 7 and 8 of the previous section.
4
Reinstall the HSF assembly.
(1) Align then insert the HSF on top of the retention plate.
