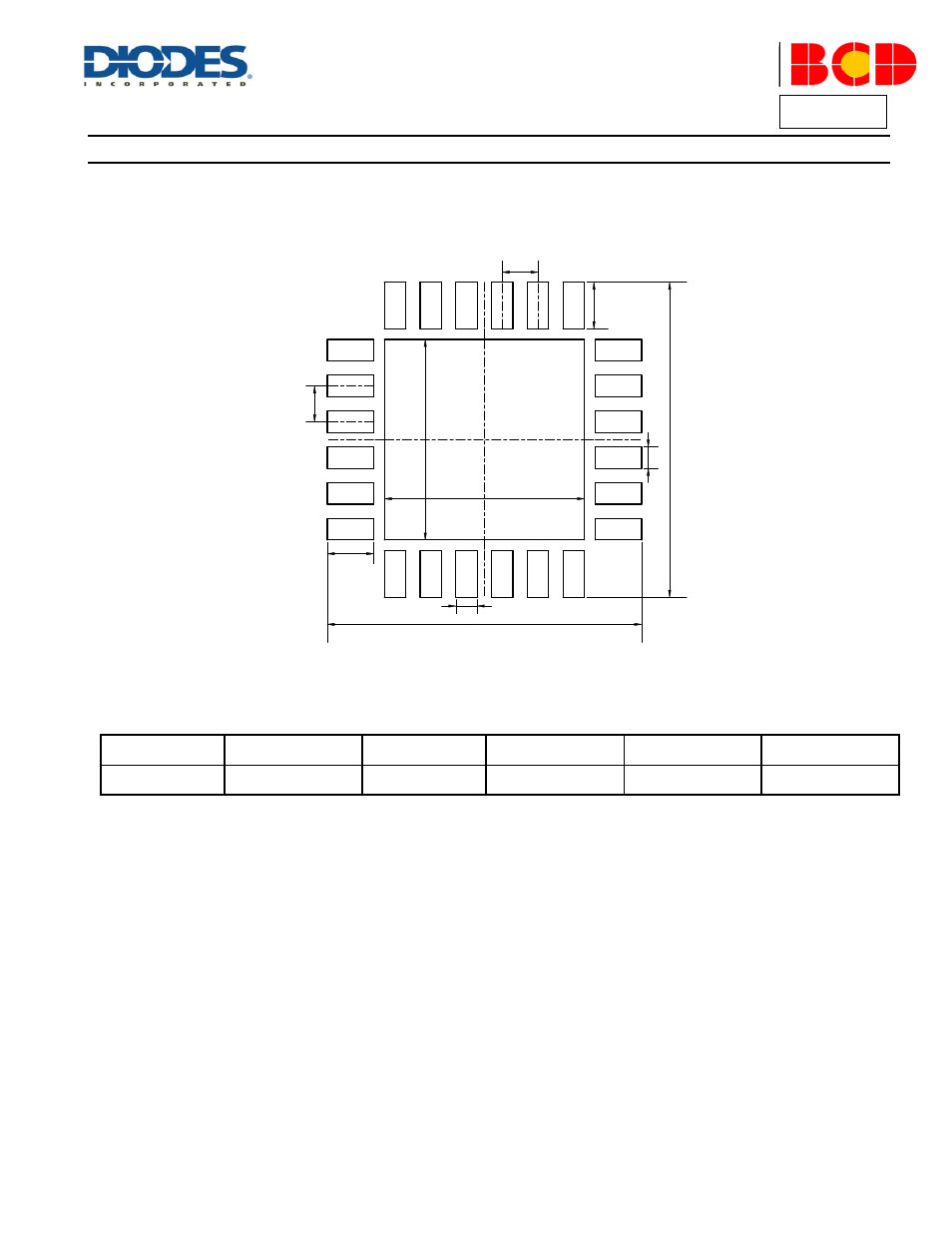

Suggested Pad Layout
(1) Package Type: U-QFN4040-24
E
Y1
Y2
X1
E
X2
Y
X
X3
Y3
Dimensions
X=Y
(mm)/(inch)
X1=Y2
(mm)/(inch)
Y1=X2
(mm)/(inch)
X3=Y3
(mm)/(inch)
E
(mm)/(inch)
Value 4.400/0.173 0.300/0.012 0.650/0.026 2.800/0.110 0.500/0.020
