Ap3595, Application information – Diodes AP3595 User Manual
Page 19
AP3595
Document number: DS36749 Rev. 1 - 2
19 of 23
January 2014
© Diodes Incorporated
AP3595
A Product Line of
Diodes Incorporated
Application Information
(Cont.)
7. Locate the resistor-divider close to the FB pin to minimize the high impedance trace. In addition, FB pin
traces can’t be close to the switching
signal traces (HGx, LGx, BOOTx, and PHASEx).

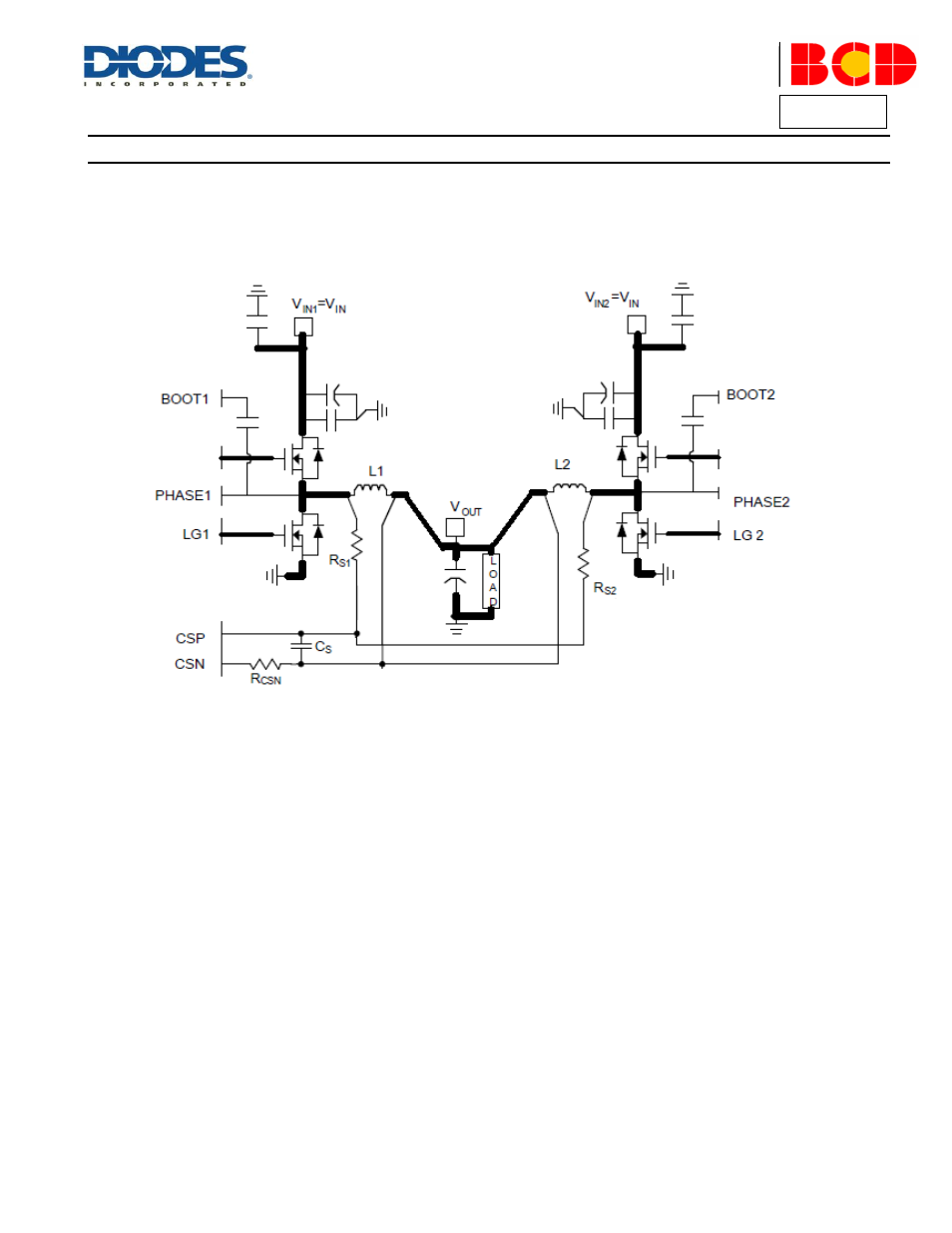

Figure 11.The Layout of AP3595
HG1
HG2
