Ordering Information
Device Part Mark
Package
Code
Packaging
(Note 11)
Reel size
(mm)
Reel width
(mm)
Quantity
per reel
Part Number
Suffix
AEC-Q100
grade
ZXLD1362ET5TA 1362 ET5 TSOT25 180 8 3000 TA 1
Note: 11. Pad layout as shown on Diodes Inc. suggested pad layout document AP02001, which can be found on our website at
http://www.diodes.com/datasheets/ap02001.pdf.

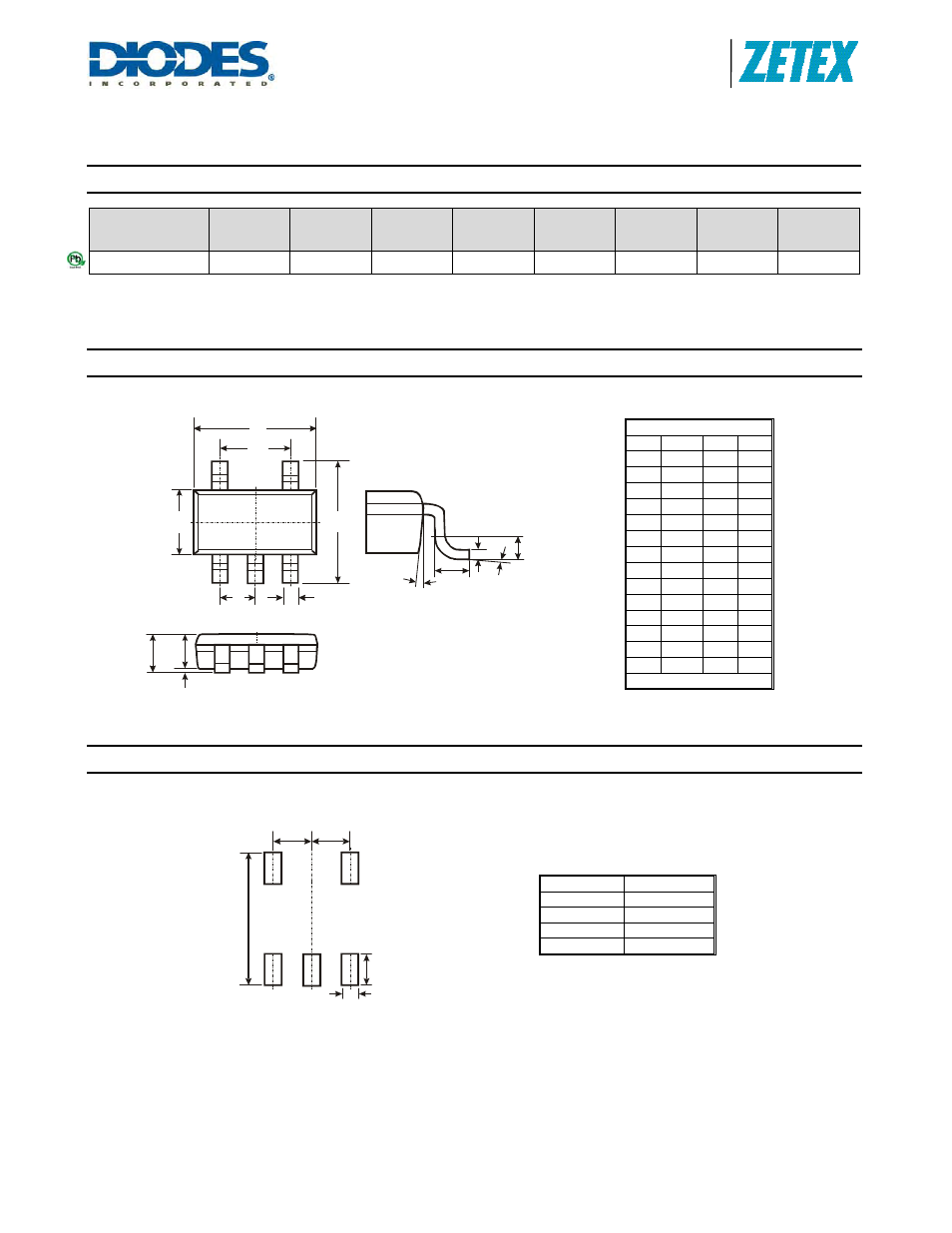

Package Outline Dimensions
TSOT25
Suggested Pad Layout
TSOT25
TSOT25
Dim Min Max Typ
A − 1.00 −
A1 0.01 0.10 −
A2 0.84 0.90 −
D − − 2.90
E − − 2.80
E1 − − 1.60
b 0.30 0.45 −
c 0.12 0.20 −
e − − 0.95
e1 − − 1.90
L 0.30 0.50
L2 − − 0.25
θ 0° 8° 4°
θ1 4° 12° −
All Dimensions in mm
Dimensions Value (in mm)
C 0.950
X 0.700
Y 1.000
Y1 3.199
c
A1
L
E1 E
A2
D
e1
e
5x b
θ
4x 1
θ
L2
A
Y1
C C
X (5x)
Y (5x)
