ZXLD1362
ZXLD1362
Document number: DS33472 Rev. 5 - 2
1 of 24
May 2012
© Diodes Incorporated
A Product Line of
Diodes Incorporated
60V 1A LED DRIVER WITH AEC-Q100
Description
The ZXLD1362 is a continuous mode inductive step-down converter
with integrated switch and high side current sense.
It operates from an input supply from 6V to 60V driving single or
multiple series connected LEDs efficiently externally adjustable
output current up to 1A.
The ZXLD1362 has been qualified to AEC-Q100 Grade 1 enabling
operation in ambient temperatures from -40°C to +125°C.
The output current can be adjusted by applying a DC voltage or a
PWM waveform. 100.1 adjustment of output current is possible
using PWM control.
Applying 0.2V or lower to the ADJ pin turns the output off and
switches the device into a low current standby state.
Pin Assignments
I
SENSE
V
IN
ADJ
GND
LX
TSOT25
(Top View)
Features
• Simple low parts count
• Single pin on/off and brightness control using DC voltage or
PWM
• High efficiency (up to 95%)
• Wide input voltage range: 6V to 60V
• Up to 1MHz switching frequency
• Qualified to AEC-Q100 Grade 1
• Typical 2% output current accuracy
• Thermally enhanced TSOT25: θ
JA
82°C/W
• Available in Green molding
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. Se information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl)
and <1000ppm antimony compounds.

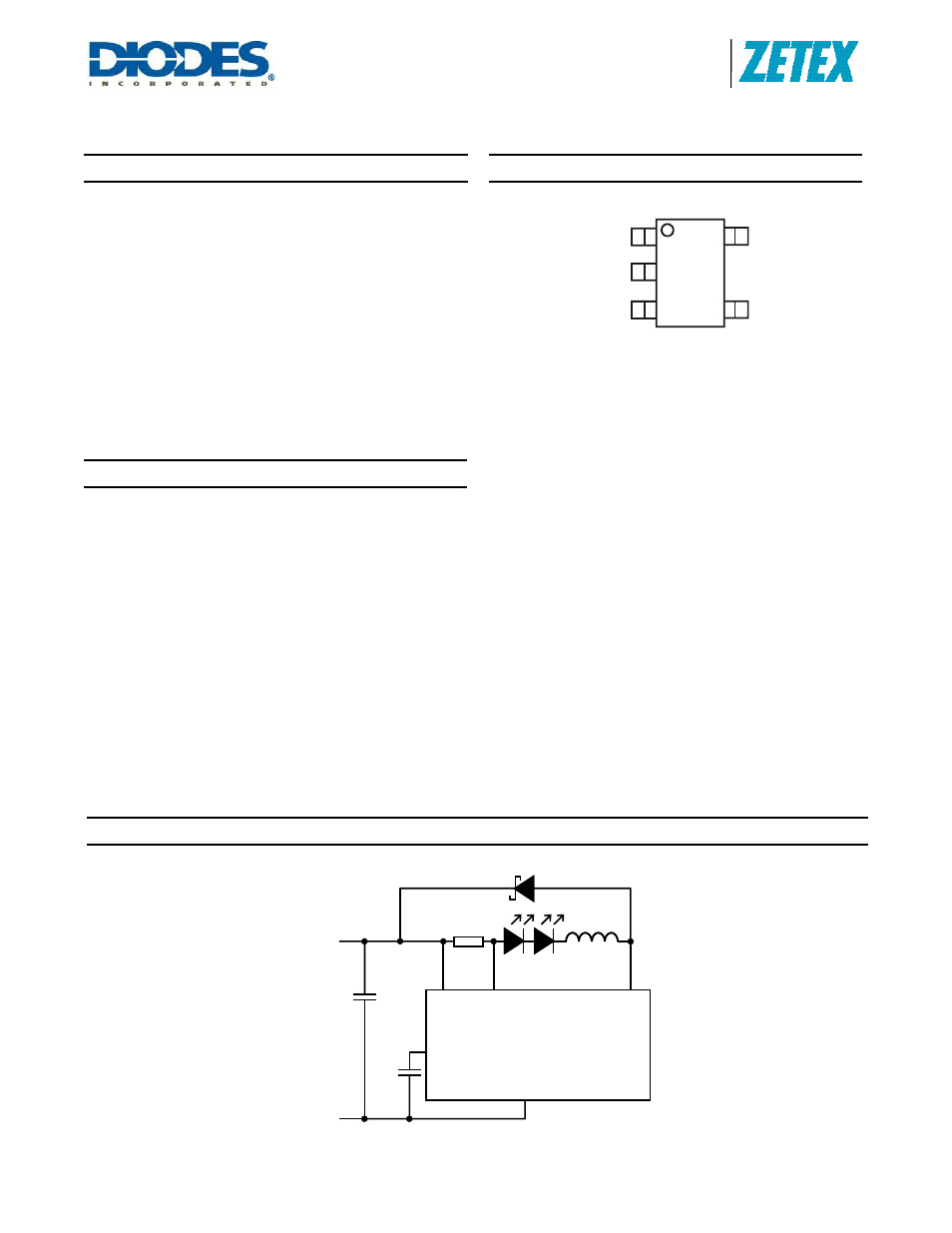

Typical Application Circuit
SET
V
IN
LX
GND
ADJ
ZXLD1362
R
S
0.1
Ω
L1
68µH
C1
4.7µF
GND
V
IN
24V
C2
100nF
