24
1. With the nut (D) loosened, install the mount (B) on the Weaver rail so that the stop (C) slides into one
of the transverse slots of the rail.
2. Tighten the nut (D) using a screwdriver.
3.1.10 INSTALLING THE 3X MAGNIFIER

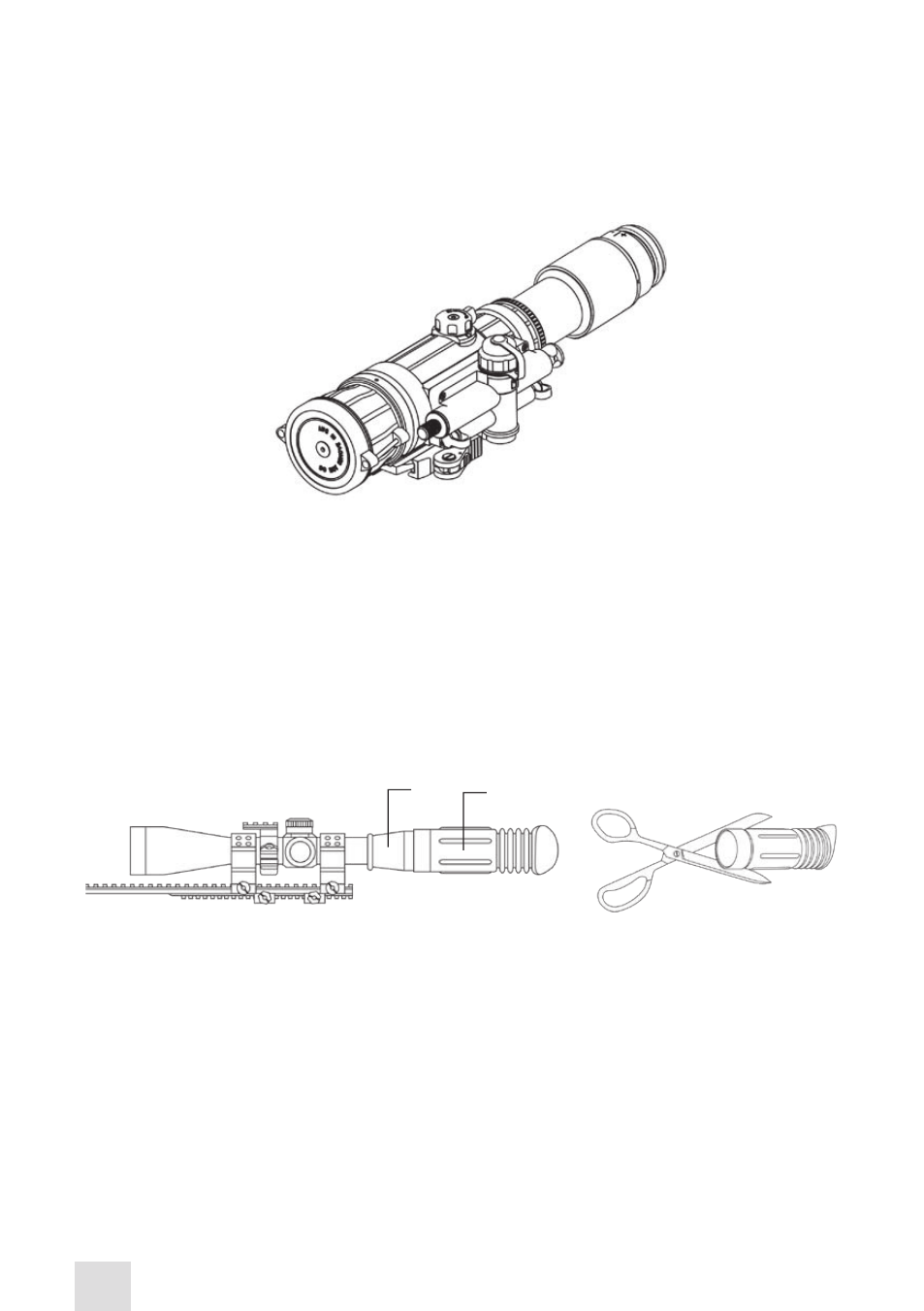

Figure 3-12 shows the CO-MR with installed 3x magnifier.
To install the 3x magnifier on the CO-MR, do the following:
1. Take off the output lens cap and place it into the storage case.
2. Screw the 3x magnifier into the CO-MR’s output lens thread.
3.1.11 INSTALLING THE LIGHT SUPPRESSOR FOR A DAY SCOPE
The Light Suppressor for a Day Scope (A) slides over the eyepiece of your daytime scope (B). The sup-
pressor can be used with scopes that have 40..43mm eyepiece diameter and 100..120 mm eye relief.
The suppressor can be adjusted for the eye relief of your scope by cutting the rubber at the desired
distance (C).
FIGURE 3-13. LIGHT SUPPRESSOR FOR A DAY SCOPE
C B A
FIGURE 3-12. THE CO-MR WITH A 3X MAGNIFIER
