ITEM NO. DESCRIPTION qUANTITY
10 IR850 Detachable Long Range Infrared illuminator
Long-range infrared illuminator equipped with a Weaver mount. Should be used
when there is little to no ambient light.
1
11 Mount for IR illuminator
A Weaver type rail mounted to the CO-MR in place of its mount. Allows the IR850 or
other additional equipment to be installed on the CO-MR.
1
12 Special Wrench
An instrument used for repositioning the adapter in the CO-MR battery cap,
depending on the battery being installed.
1
13 CR123А Battery
A single lithium battery used to power the CO-MR. A single lithium battery used to
power the IR850.
2
14 Operation and Maintenance Manual
Provides safety information, equipment description, mounting procedures,
operating instructions, and preventive maintenance checks and services (including
a List of Spare Parts).
1
15 Carrying Case
A protective case used for storing and carrying of the CO-MR and its accessories.
1
2.4 OPTIONAL EqUIPMENT
Optional items are shown in Figure 2-4 and listed in Table 2-11.
The ITEM NO. column indicates the number used to identify items in Figure 2-4.
The PART NO. column indicates the primary number used by the manufacturer to identify an item.

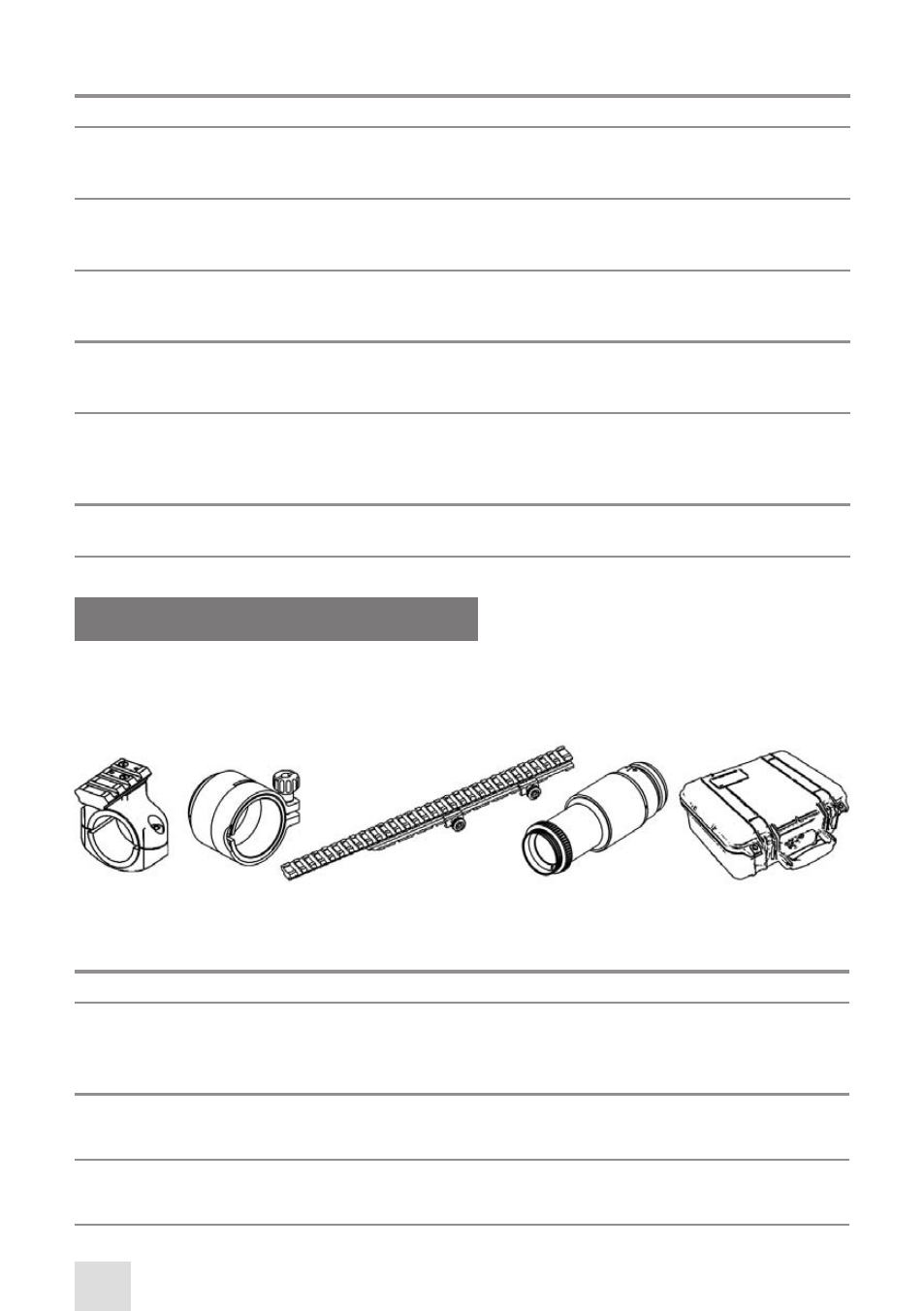

FIGURE 2-4. OPTIONAL EqUIPMENT
1 2
3 4
5
TABLE 2-11. OPTIONAL EqUIPMENT
ITEM NO. DESCRIPTION PART NO.
1 Platform Ring #61
A mounting system with a Weaver type rail. Allows the IR850 or other ad-
ditional equipment to be installed on a day scope with fitting diameter of 25.4
or 30 mm.
ANAM000032
2 Scope Mounting System 1 #40
A mounting system used to install the CO-MR on the lenses of specified day
scopes. Includes a clamp with inserts that will fit 25.4 and 30mm diameters.
ANAM000009
- Scope Mounting System 2 #41
A mounting system used to install the CO-MR on the lenses of specified day
scopes. Includes a clamp with inserts that will fit 38 and 42mm diameters.
ANAM000010
TABLE 2-10. CONTINUED
