15
2.3 STANDARD COMPONENTS
The CO-MR standard components are shown in Figure 2-3 and listed in Table 2-10.
The ITEM NO. column indicates the number used to identify items in Figure 2-3.
1
2
3
4 5
6

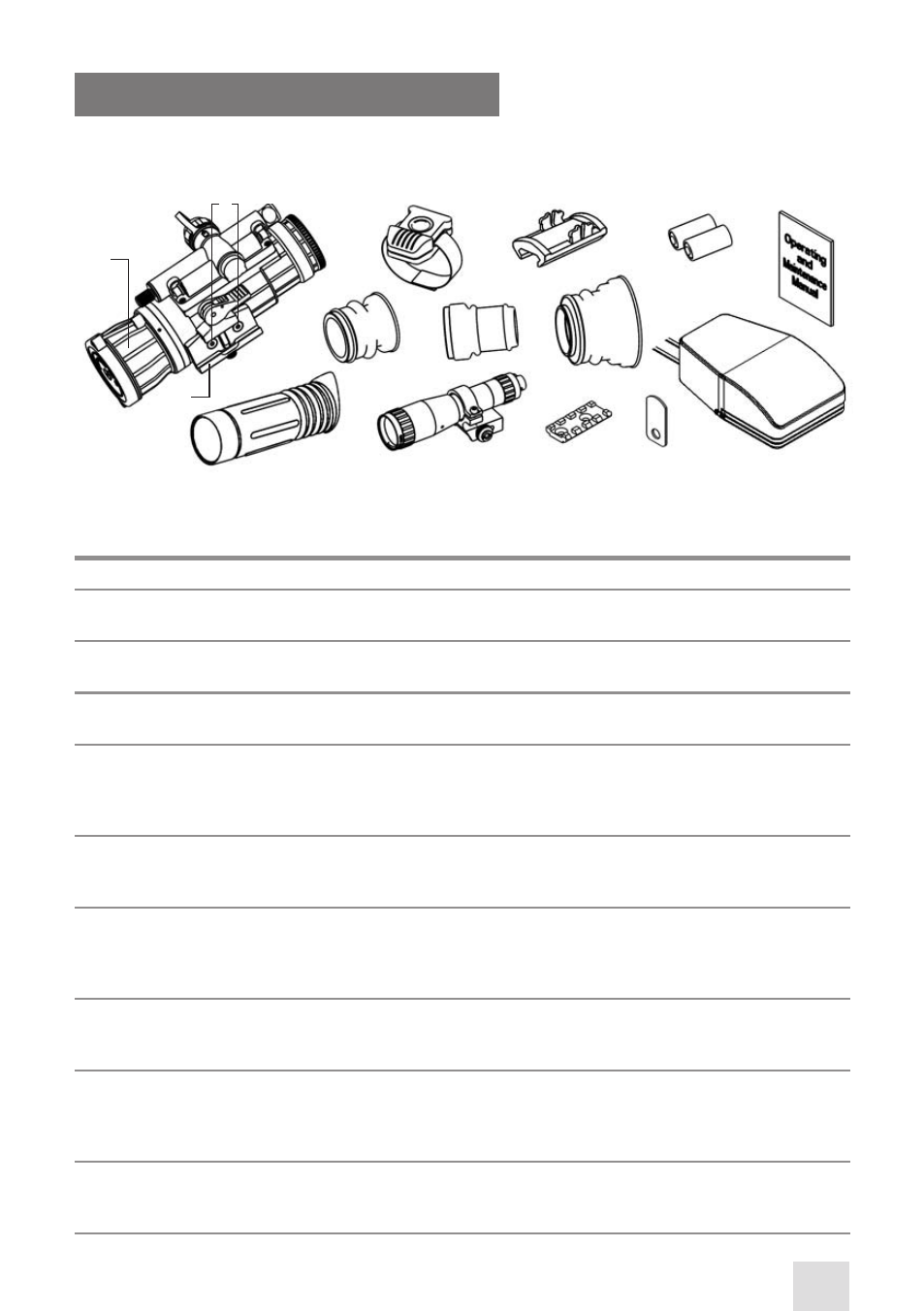

FIGURE 2-3. STANDARD COMPONENTS
8
9 10 11
13
7
14
15
12
TABLE 2-10. STANDARD COMPONENTS
ITEM NO. DESCRIPTION qUANTITY
1 CO-MR Night Vision Clip-On System
A night vision device intended for use in conjunction with a day scope.
1
2 Single Lever-Lock quick Release Picatinny Mount #27
A quick release mount used to install the CO-MR on a Picatinny/ Weaver rail.
1
3 М4×8 Flat Head Socket Cap Screw
Used for attaching the mount or the optional Weaver rail to the CO-MR.
2
4 Advanced Wireless Remote Control
Wireless control used to operate the CO-MR in short-time activation mode. Ensures
quick and silent CO-MR activation/deactivation. Delivered with two CR2016 (3V)
batteries installed.
1
5 Picatinny Adaptor for Advanced Wireless Remote Control
A adaptor mounted to the Picatinny rail of an weapon. Allows the Advanced Wire-
less Remote Control to be installed on the weapon.
1
6 Light Suppressor 1
A rubber cup mounted to the CO-MR output lens to reduce light scattering. Used
when installing the CO-MR in front of day scopes with lens housing outer diameter
over the range 25.4 to 42 mm.
1
7 Light Suppressor 2
A rubber cup mounted to the CO-MR output lens to reduce light scattering. Used
when installing the CO-MR in front of ACOG 4×32 scope.
1
8 Light Suppressor 3
A rubber cup mounted to the CO-MR output lens to reduce light scattering. Used
when installing the CO-MR in front of day scopes with lens housing outer diameter
over the range 47 to 50 mm.
1
9 Light Suppressor for Day Scope
A rubber cup mounted to the day scope output lens to reduce light scattering when
CO-MR is used and prevent surrounding light from interfering with image on eyepiece.
1
