28
1. With the nut (A) loosened, install the mount (B) on the Weaver rail so that the stop (C) slides into one
of the transverse slots of the rail.
2. Tighten the nut (A) using a screwdriver.
NOTE:
The mount clamp (D) has a spherical hinge that allows the user to tilt the IR illuminator while
it’s mounted on the rail.

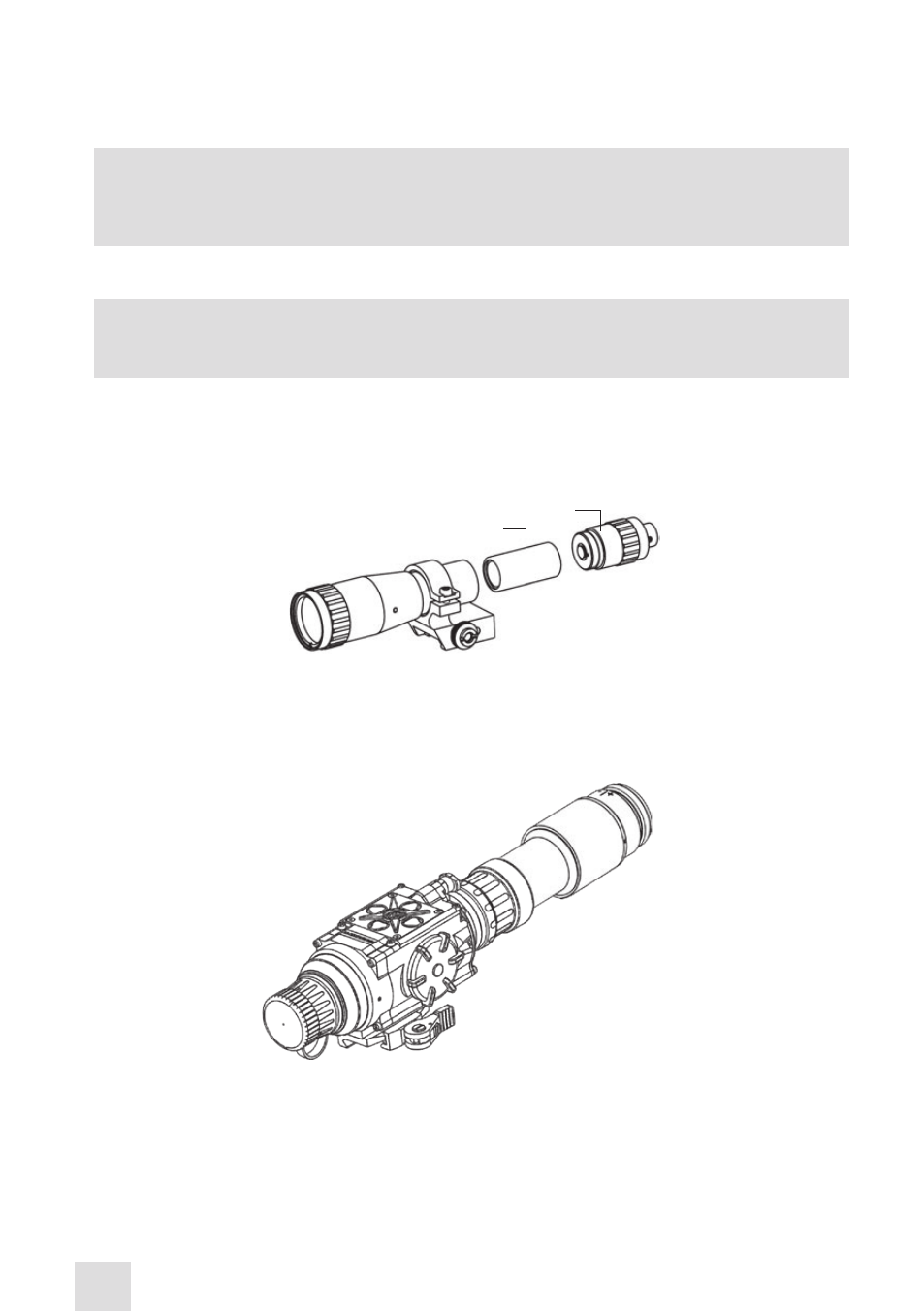

Install the CR123A battery as follows (refer to Figure 3-17):
CAUTION:
Verify that the IR Illuminator is off before installing the battery.
1. Unscrew the battery cap (A).
2. Install the battery (B) into the battery compartment. Align the polarity markings (+/-) on the battery
with those on the cap’s face.
3. Replace the battery cap (A).
A
B
FIGURE 3-17. IR ILLUMINATOR. BATTERY INSTALLATION
3.1.13 INSTALLING THE 3X MAGNIFIER
Figure 3-18 shows the Cipher with installed 3x magnifier.
To install the 3x magnifier on the Cipher, do the following:
1. Take off the output lens cap and place it into the storage case.
2. Screw the 3x magnifier into the Cipher’s output lens thread.
FIGURE 3-18. THE CIPHER WITH A 3X MAGNIFIER
