19
3
OPERATING INSTRUCTIONS
3.1 INSTALLATION AND MOUNTING
3.1.1 BATTERY INSTALLATION
CAUTION :
Ensure that the equipment is off before installing a battery.

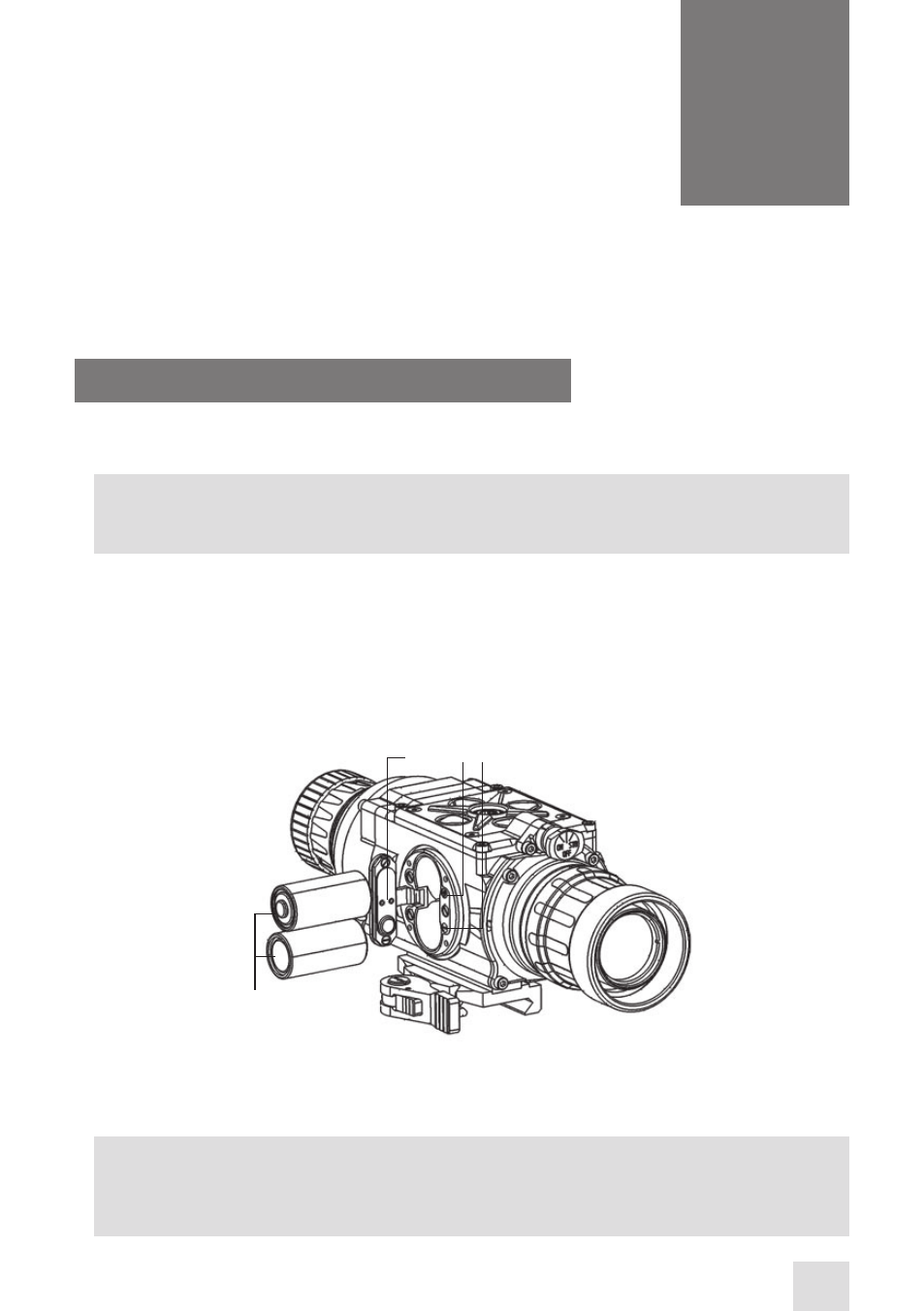

Install two CR 123A batteries as follows (refer to Figure 3-1):
1. Unscrew the battery cap (not shown) by hand.
2. Open the hinged contact clamping plate (C).
3. Install the batteries (D) into the battery compartment. Align the polarity markings on the batteries
with those on the compartment (+, A and -, B).
4. Replace the contact clamping plate (C).
5. Replace the battery cap.
3.1.2 INSTALLING THE CIPHER ON A PICATINNY/WEAVER RAIL
WARNING :
When installing the equipment on a weapon, verify that the weapon is clear and that the safety
is on before proceeding.
A B C
D
FIGURE 3-1. BATTERY INSTALLATION
