26

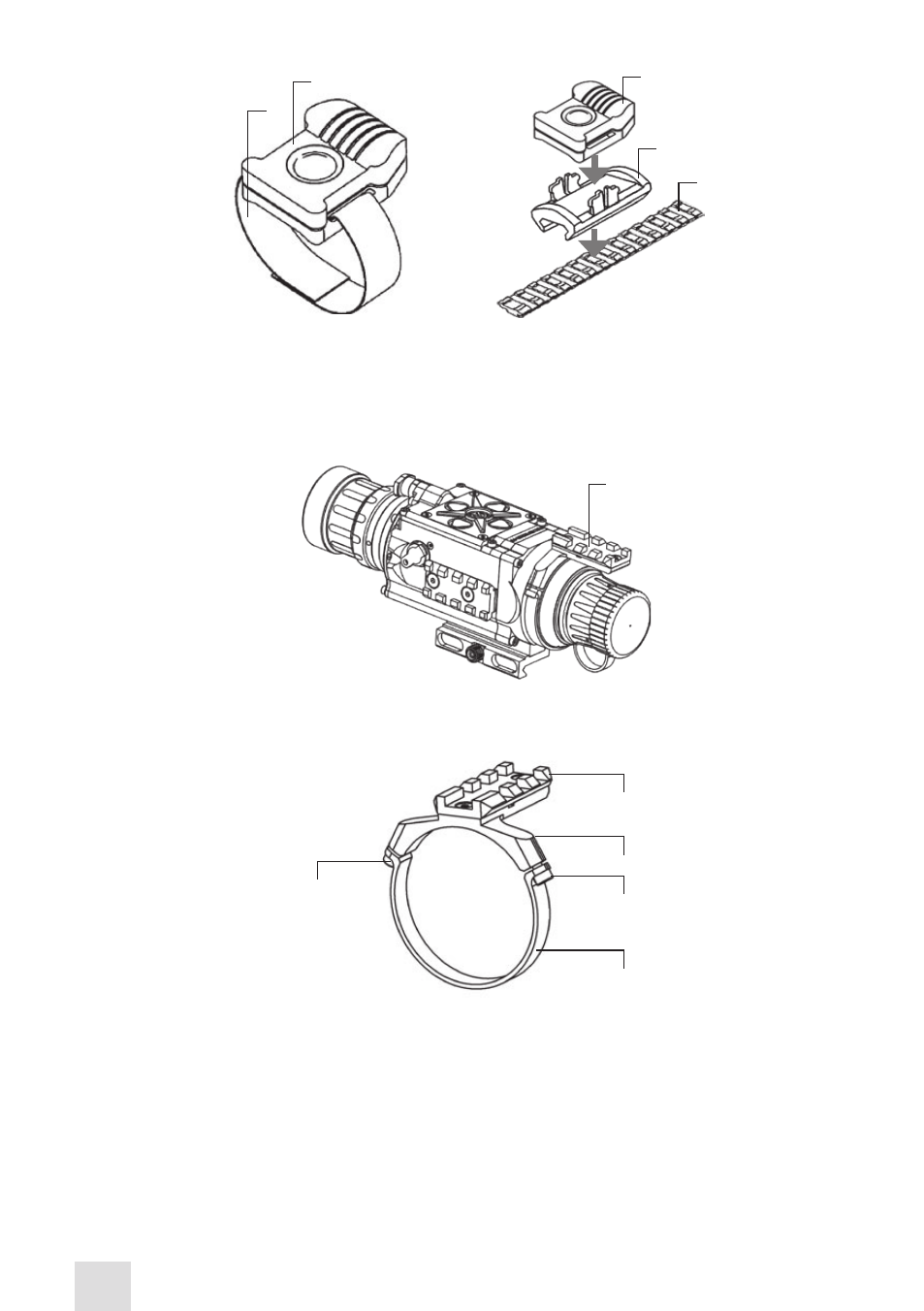

FIGURE 3-13. ADVANCED WIRELESS REMOTE CONTROL
A
B
B
C
D
3.1.8 MOUNTING A PLATFORM RING TO THE CIPHER
Figure 3-14 shows the Cipher with the Platform Ring adapter (A) installed.
A
FIGURE 3-14. THE CIPHER FULLY ASSEMBLED WITH THE PLATFORM RING
A
B
C
C
D
FIGURE 3-15. PLATFORM RING
Mount the Platform Ring on the Cipher as follows (refer to Figure 3-15):
1. Using a 1.5 hex key, unscrew the both clamp screws (C).
2. Place the clamps (B, D) onto the Cipher mounting tube (as in Figure 3-14). Screw the clamps together
without tightening the screws (C).
3. Adjust position of the Platform Ring until its rail (A) is level. Apply a small amount of thread lock to
the threads and tighten the screws (C).
