23
2. Without tightening the screws (F), use the clamps (G) to fasten the scope into the mount (H) with a
34mm fitting diameter, as seen in the preassembled equipment. To mount day scopes with fitting
diameters of 30mm or 25.4mm, use the corresponding inserts.
3. Adjust or reposition the mount (H) along the weapon rail until you find the most comfortable posi-
tion over your eye. Readjust until the cross-hairs are level, and are not tilted. After positioning the
scope in the mount (H), apply a small amount of thread lock to the threads and tighten the screws (F)
using a 3mm hex key.
4. Tighten the nuts (A) with a screwdriver to secure the mount (H) to the weapon rail.
C. Mounting the Cipher and Additional Equipment

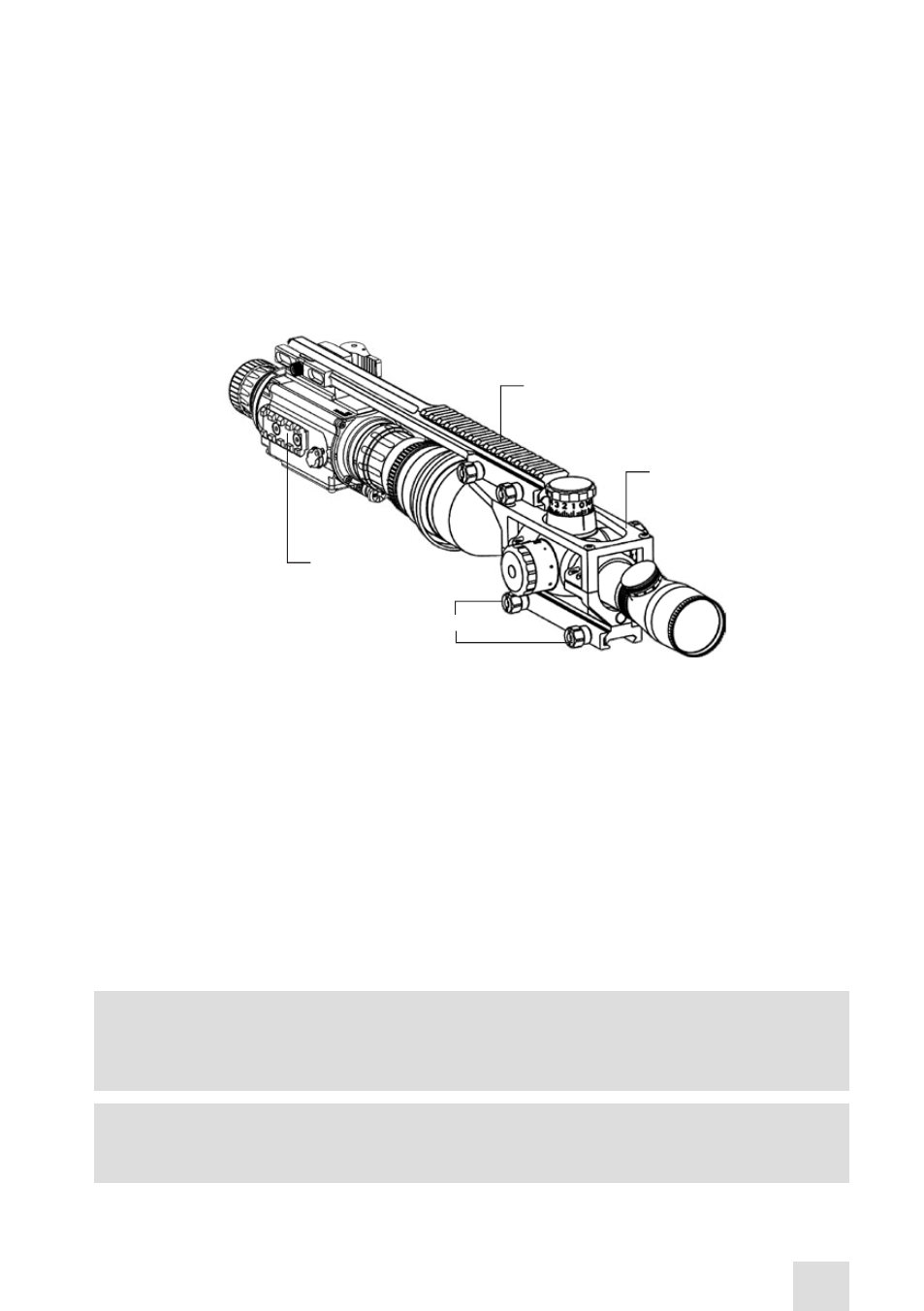

Figure 3-8 shows the Cipher and day scope mounted to the FSRS system.
A
FIGURE 3-8. THE CIPHER AND DAY SCOPE MOUNTED IN FSRS SYSTEM
B
C
D
Mount the Cipher and additional equipment to the FSRS system as follows:
1. Install the bridge (B, Figure 3-8) on the bushes (I). After applying a small amount of thread lock to the
threads, install and tighten the screws (C) using 3mm hex key.
2. Loosen the nuts (A, Figure 3-8); install the extension mount (C) onto the Weaver rail of the bridge (D).
Retighten the nuts (A) with a screwdriver.
3. Install the Cipher (B) onto the Weaver rail, underneath the extension mount, as shown in Part 3.1.2.
4. Affix additional equipment to the mount’s top Weaver rail.
After you have completed these steps, remounting the equipment without reinstalling the mount only
requires that you remove the extension mount (with the equipment installed) from the bridge.
3.1.5 INSTALLING THE CIPHER ON THE LENS OF A DAY SCOPE
Use the optional Scope Mounting System (SMS) to install the Cipher on the lenses of day scopes.
NOTE :
The adapters differ in attaching diameters and must fit with the day scope parameters specified
in Table 2-8 (Scope Mounting Systems Data).
NOTE :
The Cipher cannot be attached to the scope using a focus ring on the objective lens’ housing.
