If your rifle has a Picatinny or Weaver rail on the forend you can use the Picatinny adaptor for Advanced
Wireless Remote (C). Install adaptor on the rail. Insert the remote control unit in the adapter.

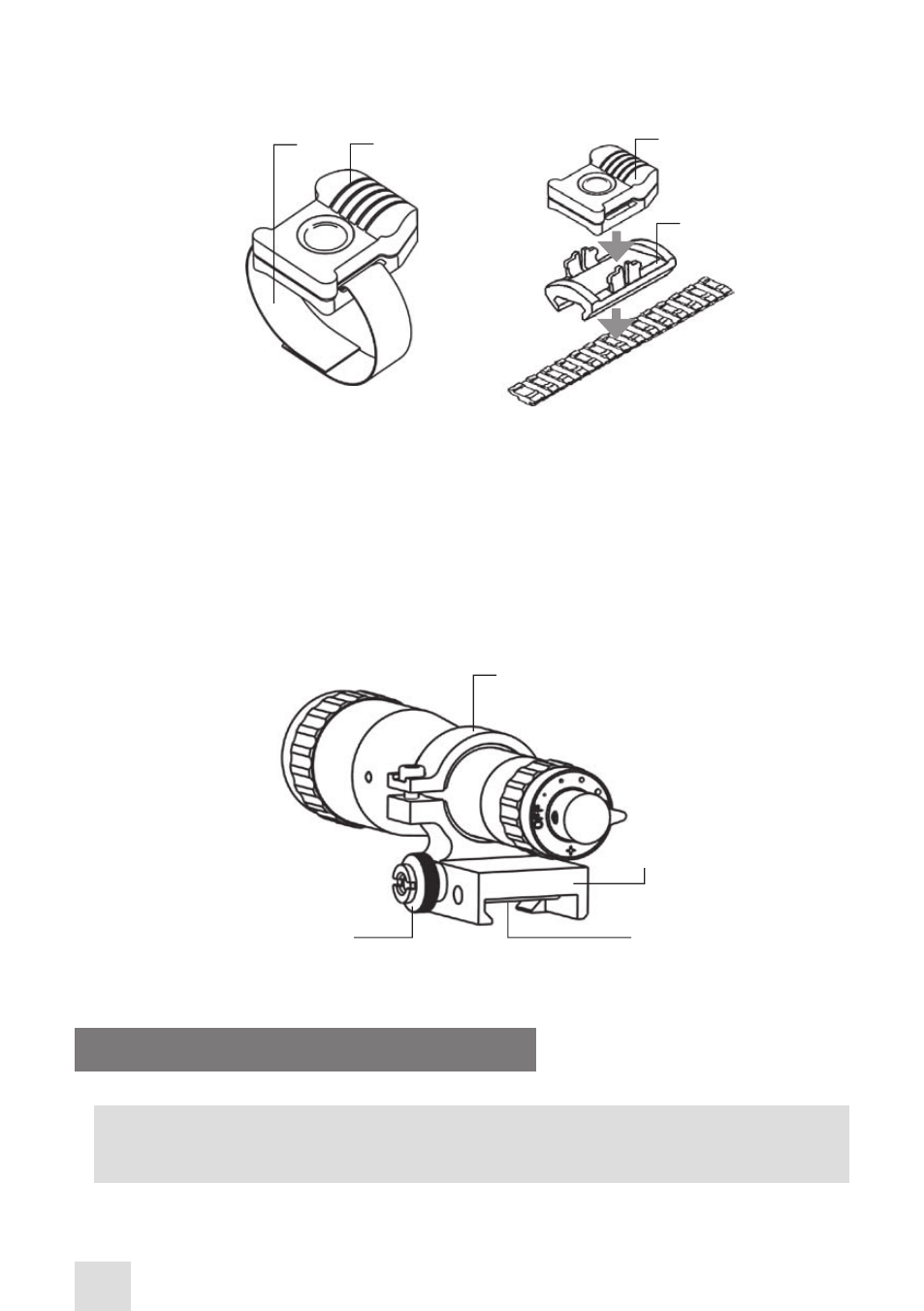

FIGURE 3-11. ADVANCED WIRELESS REMOTE CONTROL
B A
C
B
3.1.7 INSTALLING THE IR850
IR850 (Figure 3-12) is delivered ready-assembled with a dedicated mount, to be installed on the top
Weaver rail of the AIM or optional FSRS system. The mount clamp (A) has a spherical hinge that allows
the IR850 to tilt.
Mount the IR850 on the Weaver rail as follows:
1. With the nut (D) loosened, install the mount (B) on the Weaver rail so that the stop (C) slides into one
of the transverse slots of the rail.
2. Tighten the nut (D) using a screwdriver.
3.2 CONTROLS AND INDICATORS
CAUTION:
DO NOT force the equipment controls past their stopping points.
D
FIGURE 3-12. IR-850 ILLUMINATOR
B
A
C
