23
C. Mounting the CO-LR and Additional Equipment
Figure 3-10 shows the CO-LR and day scope mounted to the FSRS system.
Mount the CO-LR and additional equipment to the FSRS system as follows:
1. Install the bridge (B, Figure 3-8) on the bushes (I). After applying a small amount of thread lock to the
threads, install and tighten the screws (C) using 3mm hex key.
2. Loosen the nuts (A, Figure 3-10); install the extension mount (C) onto the Weaver rail of the bridge
(D). Retighten the nuts (A) with a screwdriver.
3. Install the CO-LR (B) onto the Weaver rail, underneath the extension mount, as shown in Part 3.1.3.
4. Affix additional equipment to the top Weaver rail of the mount.
After you have completed these steps, remounting the equipment without reinstalling the mount only
requires that you remove the extension mount (with the equipment installed) from the bridge.
3.1.6 FASTENING A ADVANCED WIRELESS REMOTE CONTROL TO WEAPON
Using Velcro tape (A), fasten the Advanced Wireless Remote Control (B) (Figure 3-11) to your weapon in
an easily accessible place (e.g., on the front of the rifle stock) on the side of the CO-LR’s control compart-
ment preferably.

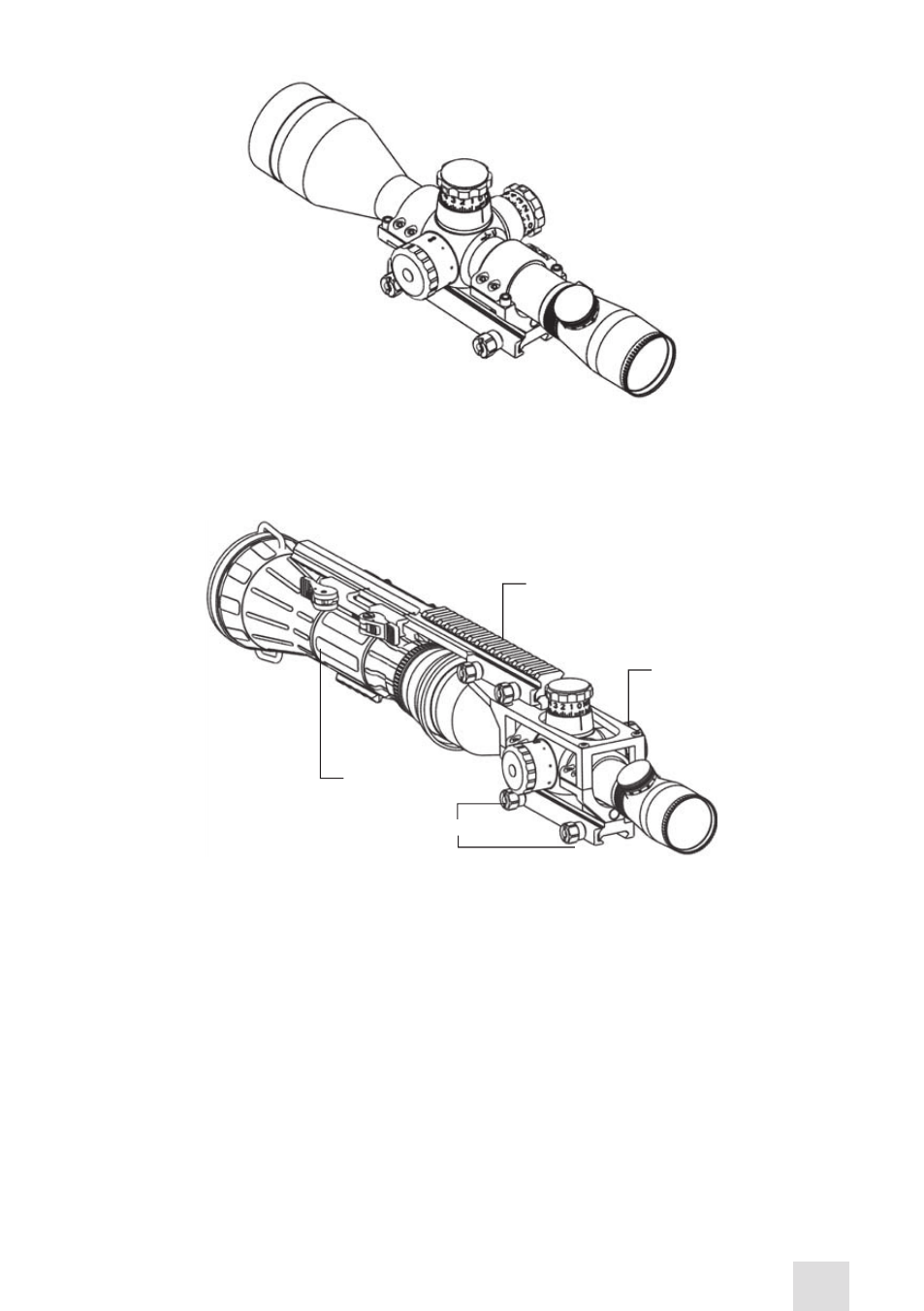

FIGURE 3-9. DAY SCOPE MOUNTED IN FSRS SYSTEM
A
FIGURE 3-10. CO-LR AND DAY SCOPE MOUNTED IN FSRS SYSTEM
B
C
D
