The automatic shut-off function preserves battery life should the CO-LR be inadvertently activated.
The CO-LR is powered by a single AA or CR123A battery.
The CO-LR uses an LED indicator to show the operator when the bright light protection system is acti-
vated, or to indicate low battery life.
The Picatinny/ Weaver mount (B) has an adjustable lever-cam clamping device for easy, quick and reli-
able mounting and removal of the CO-LR.
The CO-LR is shown in Figure 2-2. The ITEM NO. column in Table 2-1 indicates the number used to iden-
tify items in Figure 2-2.
9
7
10

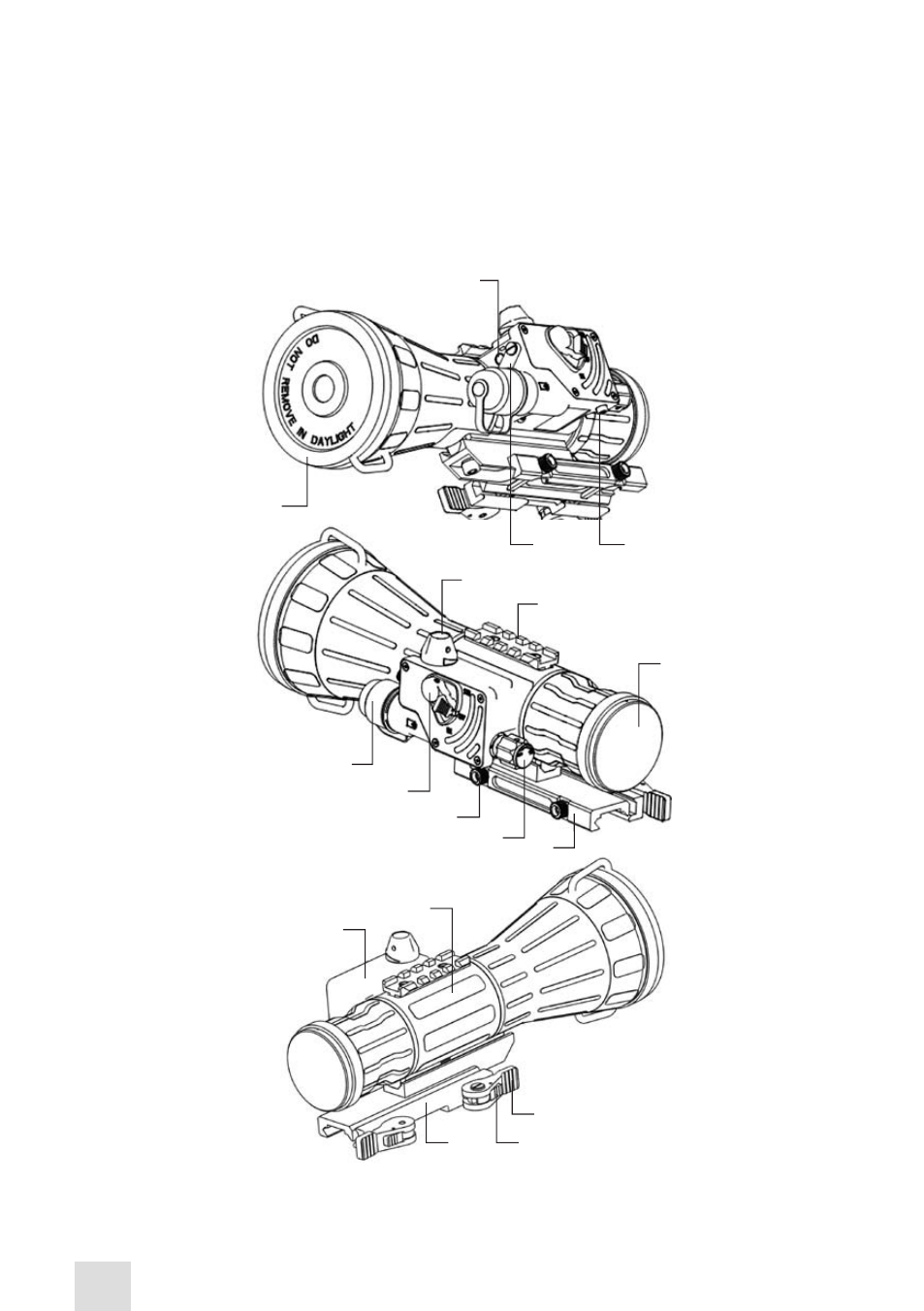

FIGURE 2-2. CO-LR NIGHT VISION CLIP-ON SYSTEM
4
12
5
6
2
11
3
1
8
15
16 17
14
13
