18
3
OPERATING INSTRUCTIONS
3.1 INSTALLATION AND MOUNTING
CAUTION :
To protect the intensifier tube when the sight is not in use or when it is being operated in day-
light, keep the protective lens cap securely fitted over the lens.
3.1.1 CO-LR BATTERY INSTALLATION
CAUTION :
Ensure that the device is OFF before installing a battery.
Install the battery as follows (refer to Figure 3-1):
1. Unscrew the battery cap (E) and check the position of the battery adapter (D). See Figure 3-2 for the
correct positioning of the threaded battery adapter, which changes depending on the battery being
installed.
2. If necessary, use the special wrench to change the battery adapter position in the cap.
3. Install the battery (C) into the battery compartment (B). Follow the battery symbol (A).
4. Replace the battery cap (E).
C
D
E
B
A

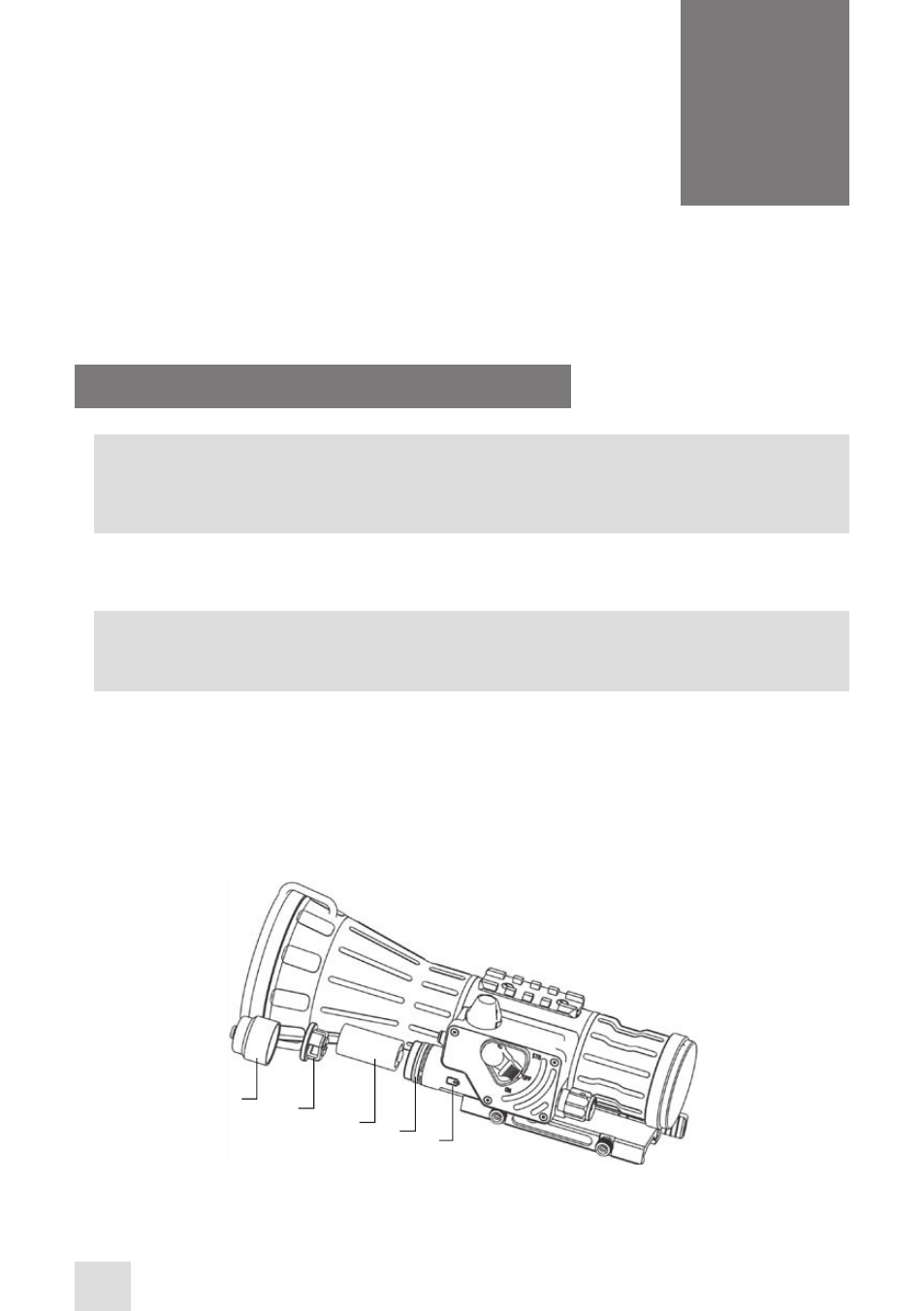

FIGURE 3-1. CO-LR BATTERY INSTALLATION
