2.3 STANDARD COMPONENTS
The CO-LR standard components are shown in Figure 2-3 and listed in Table 2-9.
The ITEM NO. column indicates the number used to identify items in Figure 2-3.
TABLE 2-9. CO-LR STANDARD COMPONENTS
ITEM NO. DESCRIPTION qUANTITY
1 CO-LR Night Vision Clip-On System
A night vision device equipped with quick release mount, and that can be
installed on a Picatinny/ Weaver rail. Intended for use in conjunction with a
day scope. 1
2 Double Lever-Lock quick Release Picatinny Mount #28
A quick-release mount used to install the CO-LR on a Picatinny/ Weaver rail. 1
3 Advanced Wireless Remote Control
Wireless control used to operate the CO-LR in short-time activation mode.
Ensures quick and silent CO-LR activation/ deactivation. Delivered with two
CR2016 (3V) batteries installed. 1
4 Picatinny Adaptor for Advanced Wireless Remote Control
A adaptor mounted to the Picatinny rail of an weapon. Allows the Advanced
Wireless Remote Control to be installed on the weapon. 1
5 Light Suppressor
A rubber cup installed on the CO-LR output lens to reduce light scattering. 1
6 IR850 Detachable Long Range Infrared illuminator
Long-range infrared illuminator equipped with a Weaver mount. Should be
used when there is little to no ambient light. 1
7 CR123А Battery
A single lithium battery used to power the CO-LR. A single lithium battery
used to power the IR850. 2
1
2
3
4
5
6

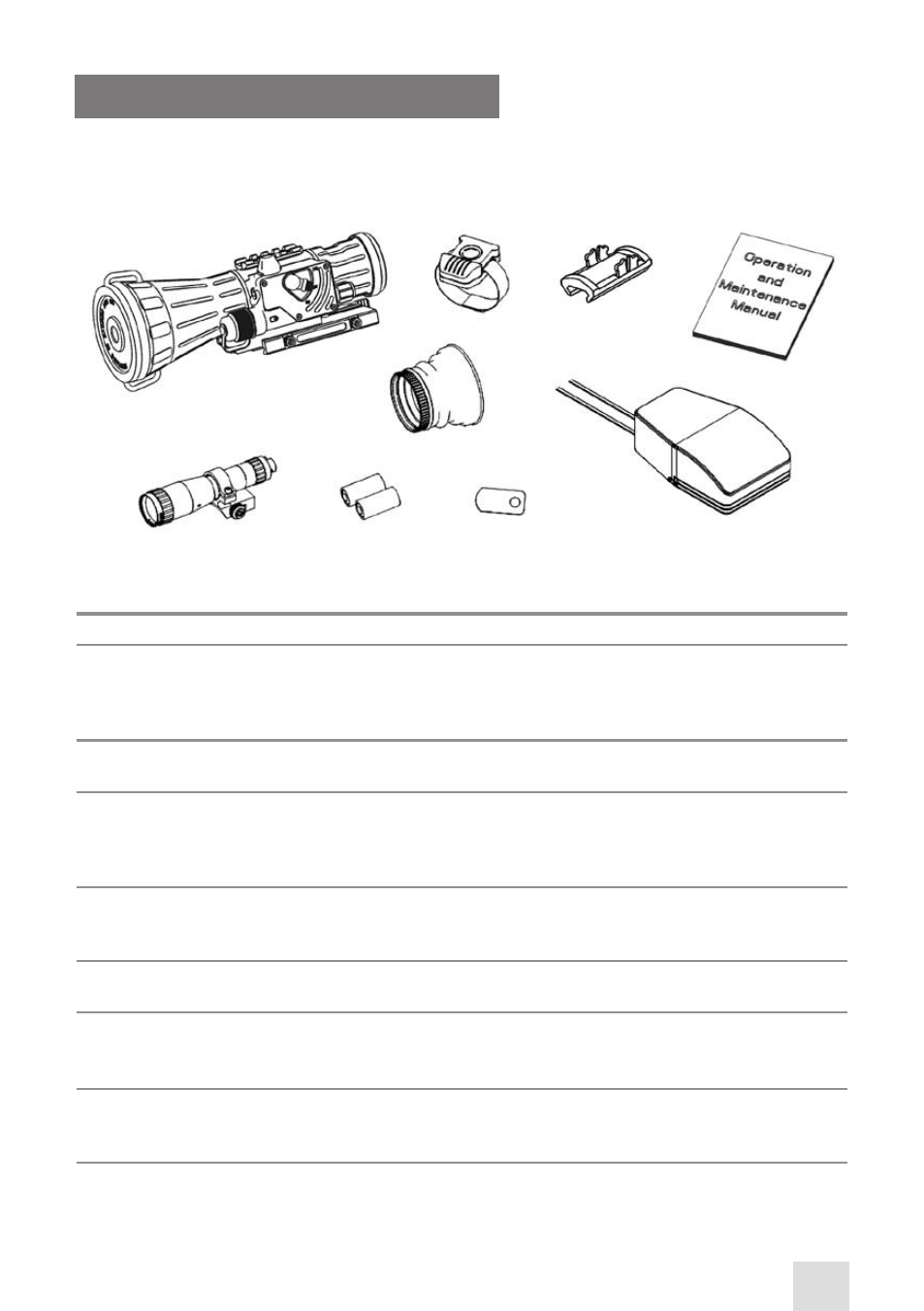

FIGURE 2-3. CO-LR STANDARD COMPONENTS
8
7
9
10
