19
3.1.2 IR850 BATTERY INSTALLATION
CAUTION :
Ensure that the device is OFF before installing the battery.
Install the CR123A battery as follows (refer to Figure 3-3):
1. Unscrew the battery cap (A).
3. Install the battery (B) into the battery compartment. Align the plus sign on the battery with the plus
sign on the cap face.
4. Replace the battery cap (A).
3.1.3 INSTALLING THE CO-LR ON A WEAPON USING A PICATINNY/ WEAVER
RAIL
WARNING :
When installing the equipment on a weapon, verify that the weapon is clear and that the safety
is on before proceeding.
BATTERy CAP

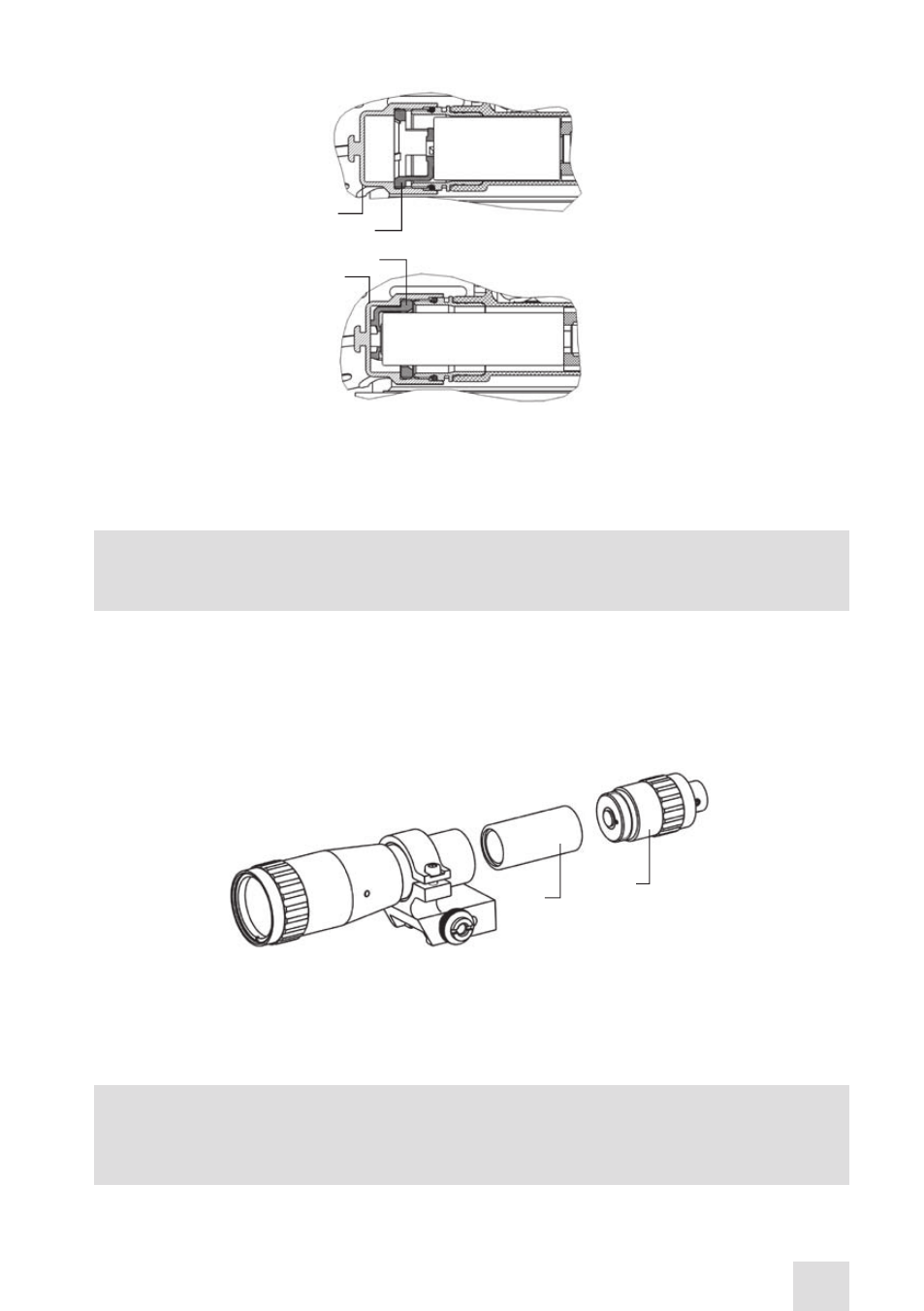

FIGURE 3-2. BATTERY ADAPTER POSITIONS IN THE BATTERY CAP
CR123A
AA
BATTERy ADAPTER
BATTERy CAP
BATTERy ADAPTER
B
A
FIGURE 3-3. IR850. BATTERY INSTALLATION
