32 Chapter 2: Hardware information
A7N8X ®

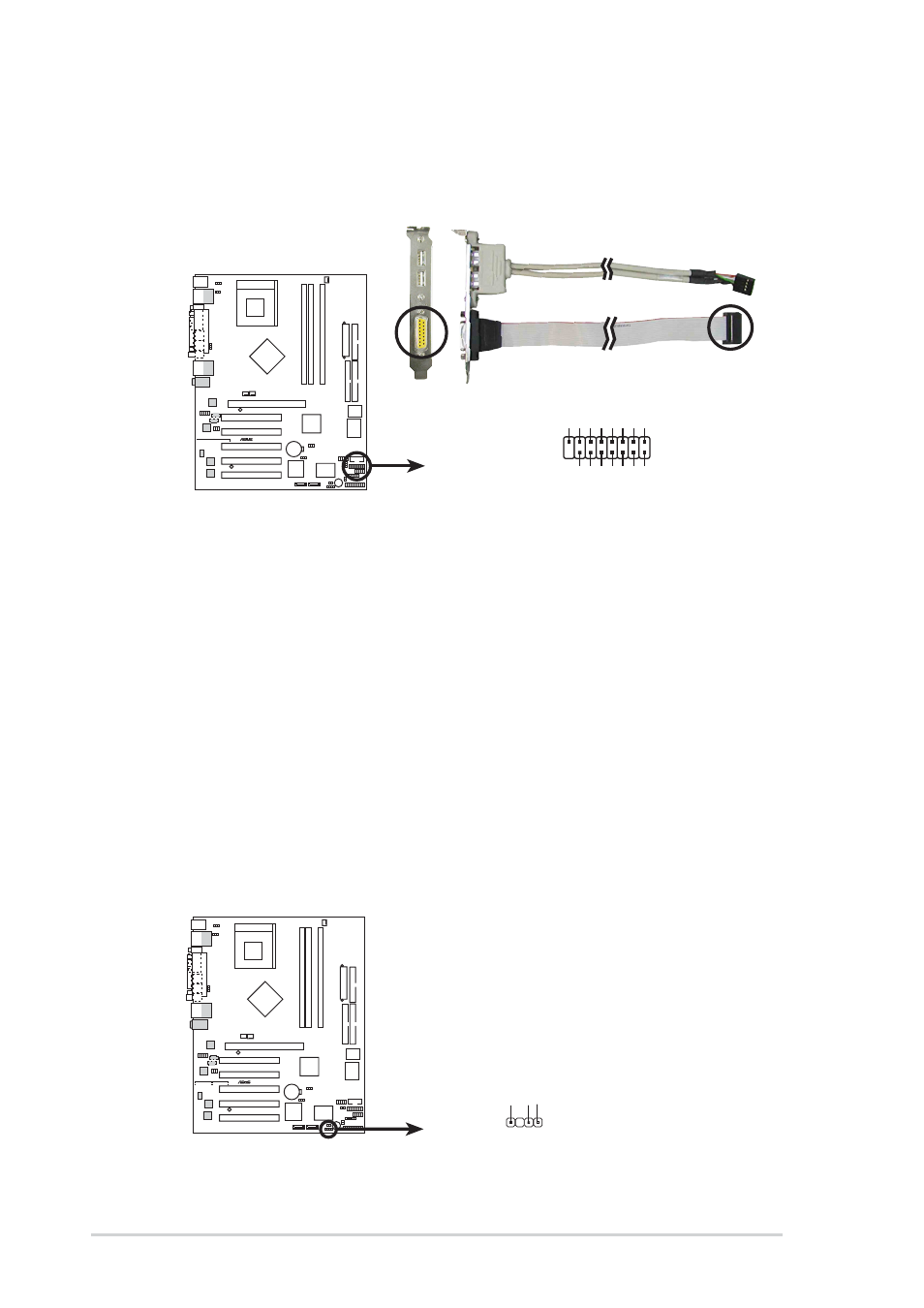

A7N8X Game Connector
GAME1
+5V
+5V
J2B1 J2CX
MIDI_OUT
J2CY J2B2
MIDI_IN
J1B1 J1CX GND GND J1CY J1B2 +5V
21) Game Connector (16-1 pin GAME)
This connector supports an external game port. An example of a PCI game
port is illustrated.
A7N8X ®
A7N8X Chassis Open Alarm Lead
CHASSIS1
+5V
olt
(Power Supply Stand By) Ground Chassis Signal
1
22) Chassis Open Alarm Lead (4-1 pin CHASSIS1)
This lead is intended for a chassis designed to support intrusion detection.
The lead requires an external detection mechanism such as a chassis
intrusion monitor/sensor or microswitch. When any chassis component is
removed, the sensor is triggered and a high-level signal is sent to this lead to
record a chassis intrusion event. The event is then be processed by software
such as LDCM. When not using the chassis intrusion lead, place a jumper
cap over the pins (PINS 3-4) to close the circuit. Removing the jumper cap
will prevent the system from booting up.
