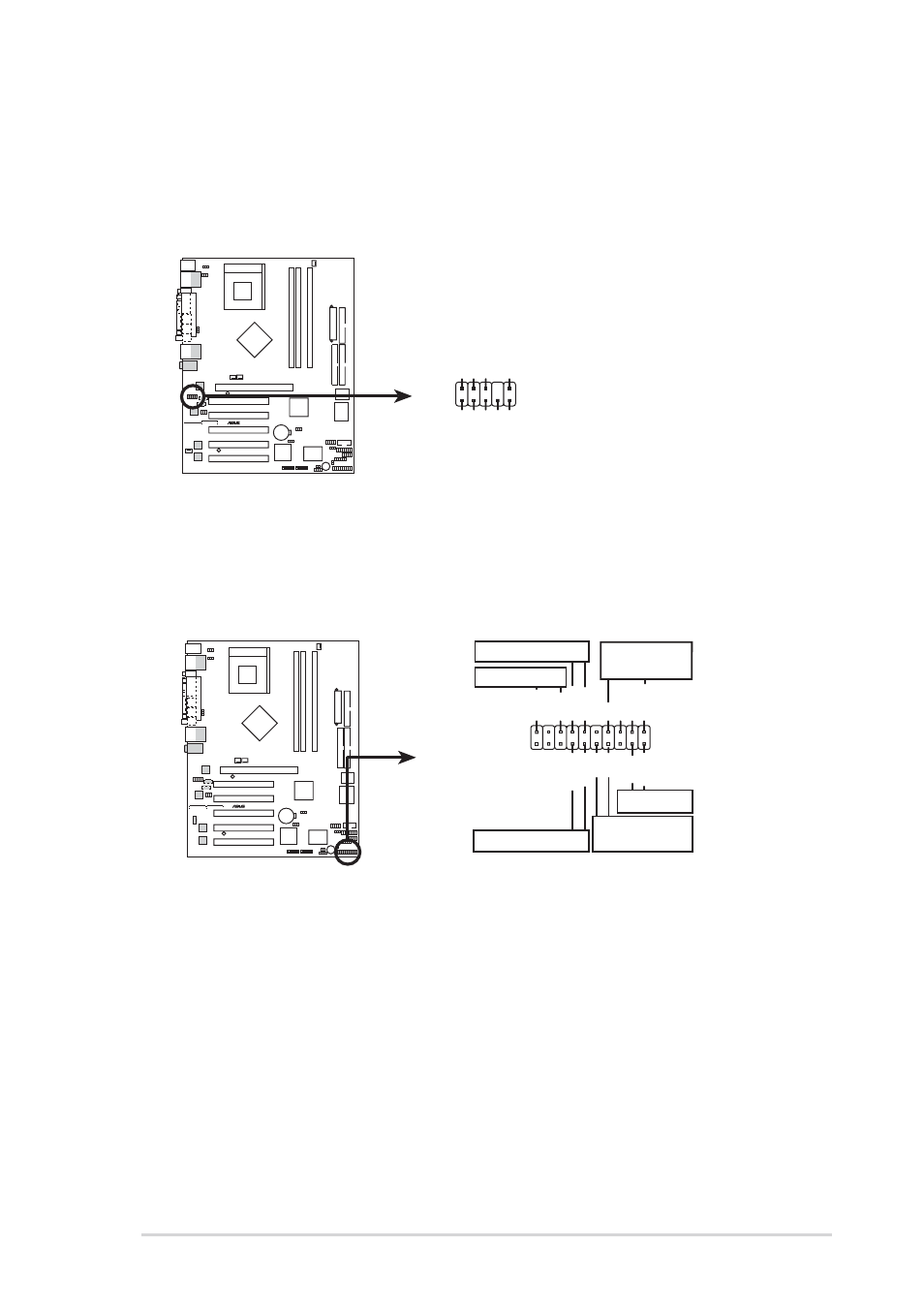

23) Front Panel Audio connector (10-1 pin FPAUDIO1)
This is an interface for the Intel front panel audio cable that allow convenient
connection and control of audio devices.
A7N8X ®
A7N8X Front Panel Audio Connector
FPAUDIO1
BLINE_OUT_L
MIC2
Line out_R Line out_L
BLINE_OUT_R
NC
MICPWR
+5V
A
AGND
The following 20-pin PANEL illustration is for items 24-29.
A7N8X ®
A7N8X System Panel Connectors
* Requires an ATX power supply.
PLED-
Ground
PWR
PLED+ Keylock +5V Speaker
Speaker
Connector
Power LED
Ground
Reset SW
SMI Lead
ExtSMI#
GND
Reset
Ground Ground Ground
Keyboard Lock
ATX Power
Switch*
24) System Power LED Lead (3-1 pin PWR_LED)
This 3-1 pin connector supplies the system power LED. The LED lights up
when the system power is on, and the LED blinks when the system is in
sleep or soft-off mode.
25) Keyboard Lock Switch Lead (2 pin KEYLOCK)
This 2-pin connector supplies the case-mounted key switch for keyboard
locking.
26) System Warning Speaker Lead (4 pin SPEAKER)
This 4-pin connector supplies the case-mounted speaker to sound system
beeps and warnings.
