84 Chapter 5: Software reference
• Dolby ® Surround Encoding - enables audio to be encoded for playback
on home theater receivers (using analog stereo outputs only)
• Dolby
® Digital Encoding - Enables audio to be encoded for playback on
5.1 home theater receivers (using digital SPDIF output only)
Here are some of the features on the Speaker Setup:

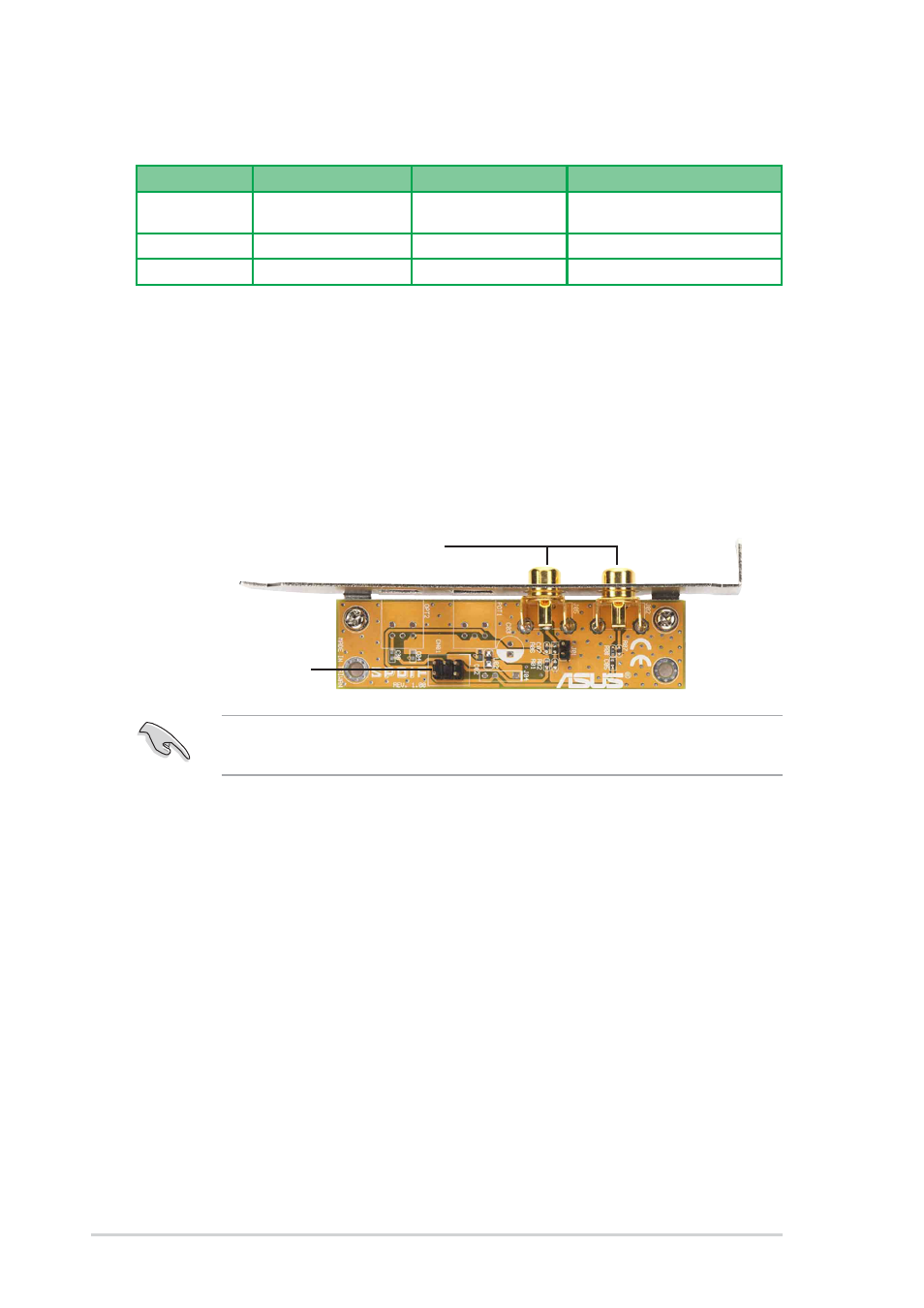

This optional S/PDIF audio module allows digital instead of analog sound
input and output.
RCA / Optical connectors
S/PDIF internal header
IMPORTANT! For S/PDIF out function, you may use either the module
or the S/PDIF connector (optional) at the back panel, but not both.
• Create Center Channel - Generates a center channel for audio content
that does not have it natively (like MP3s, WMAS, etc.)
• Create Channel 3D Pan - Allows game sounds to be panned through the
center speaker when they pass between the left and right speakers (only
works for DirectSound3D games)
• Create LFE Channel - Generates a subwoofer signal for speaker systems
that require it (like Dolby Digital receivers or home theaters with discreet
subwoofer inputs)
• Rear Speaker Phase Shift - Adjusts the output of the rear speakers so that
sounds don’t ‘cancel out’ and remove the bass channel or cause a ‘tinny’
sound (primarily older 4 channel PC speaker systems)
• LFE Crossover Frequency - Adjusts the amount of bass signal removed
from the main speakers and sent specifically to the subwoofer output
(increment in hertz).
Connector Settings and Functions
(audio jack switching for motherboards with 3 audio jacks only)
Connector Headphone/2 Speaker 4-Speaker 6-Speaker
Lime Line Out/ Line Out/ Line Out/
Front Speaker Out Front Speaker Out Front Speaker Out
Light Blue Line In Rear Speaker Out Rear Speaker Out
Pink Mic In Mic In Center Speaker Out, Sub-woofer
