2.6.3 PCI slots

Five 32-bit PCI slots are available on this motherboard. The slots support
PCI cards such as a LAN card, SCSI card, USB card, and other cards that
comply with PCI specifications.

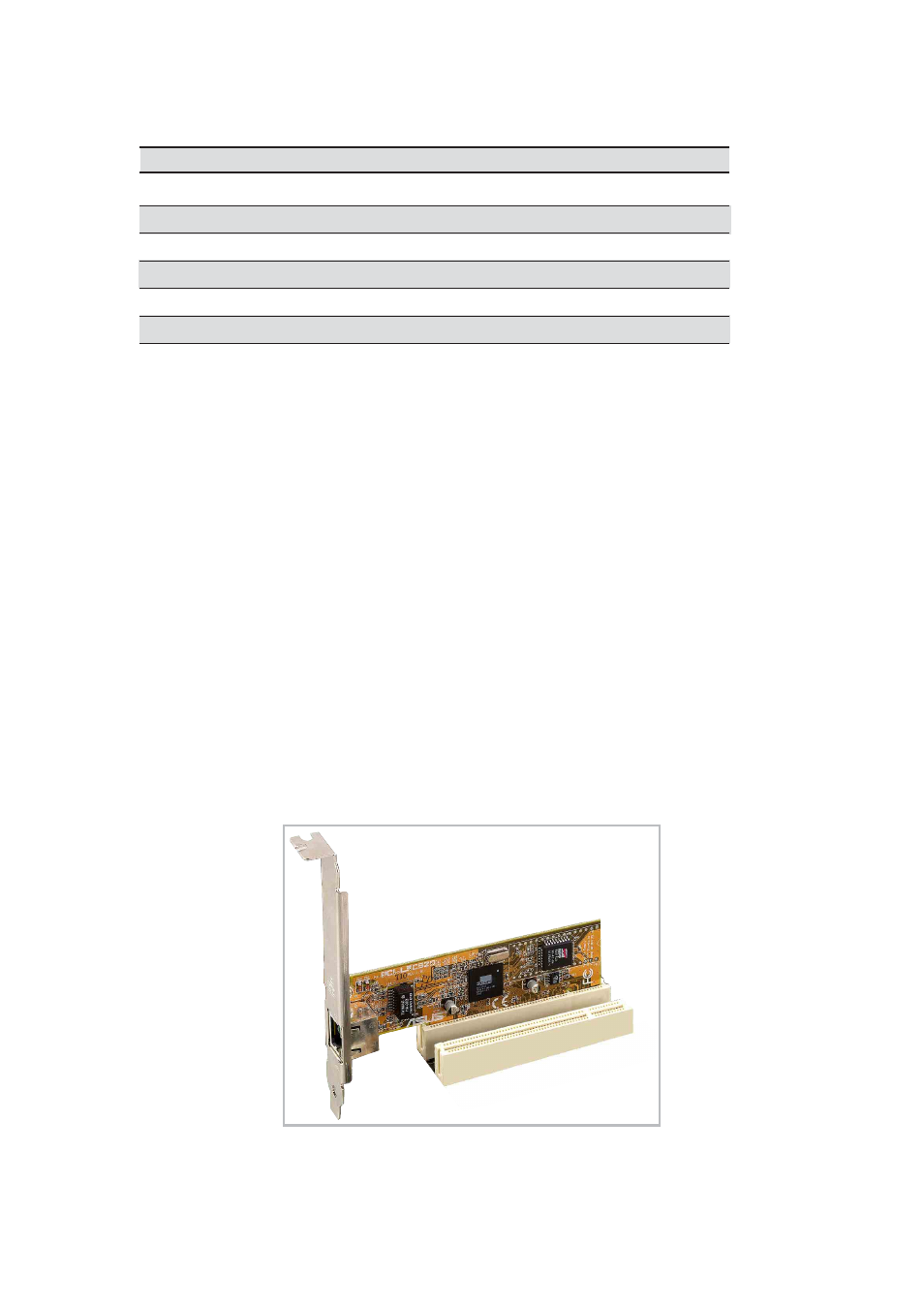

This figure shows a typical PCI card installed into a slot:

Interrupt Request Table for this Motherboard

INT-A

INT-B

INT-C

INT-D

PCI slot 1

shared

—

—

—

PCI slot 2

—

—

—

used

PCI slot 3

—

shared

—

PCI slot 4

—

used

—

—

PCI slot 5

shared

—

—

Serial ATA

—

—

shared

—
